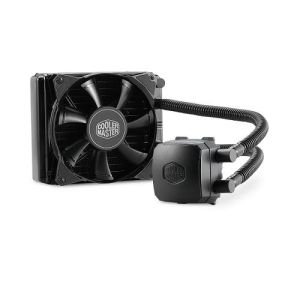

Nepton 140XL
The Nepton 140XL is Cooler Masters latest watercooling kit that aims to bring watercooling to the next level. Nepton 140XL is using CM exclusive designed pump with effective waterblock. It has thicker and longer tubing for upgraded performance. In addition, dual JetFlo 140 fans + 38mm thick radiator also provide great cooling ability for over 300Watt heat dissipation, which enable user to overclock CPU to maximum performance.
New Ultrafine Micro Channel
Dual 140mm Superior Airflow Jetflo Fan
13.7mm Fep Tubing & High Pressure Pump
Nepton 140XL / 280 L
Ultra High Performance Closed-Loop Watercooler
Nepton 140XL
is using a CM exclusive designed pump with a highly effective water block. It has thicker and longer tubing for upgraded performance.
35% High Pump Flow Rate
66% Thicker Pipe
2X Coolant
35% Larger Radiator Dimension
CM self-designed
pump and water block guarantees the best water flow and system performance.
New UltraFine Microchannel
is a new designed for best water flow and takes maximum heat from cold plate to coolant.
JetFlo 140
basic provides powerful air pressure. The rubber pad on the side of stiff reduce vibration and noise
1.Advanced fan blade design
The 7 rigid fan blades cut through the air at speeds ranging between 800~2000 RPM and produce high airflow up to 122.5 CFM operating at full power.
2.Shock-absorbing rubber pads
Rubber pads absorb vibrations and noise.
Advanced Fan Blade Design
Compared to other normal fans, the advanced fan blade design of JetFlo 140 can concentrate more air for excellent cooling performance with a low noise level.
Unique LED
illumination on the water block lens.
Specifications
| Model |
RL-N14X-20PK-R1 |
| CPU Socket |
Intel LGA 2011 / 1366 / 1150 /1155 / 1156 / 775
AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2 |
| Dimension |
75 x 69.8 x 49.1 mm ( 3 x 2.7 x 1.9 inch ) |
| Radiator Dimensions |
171 x 139 x 38 mm ( 6.7 x 5.5 x 1.5 inch ) |
| Radiator Material |
Aluminum |
| Fan Dimension |
140 x 140 x 25 mm ( 5.9 x 5.9 x 1 inch ) *support 120mm fan x 2 |
| Fan Speed |
800~2000 RPM (PWM) 10% |
| Fan Airflow |
54~122.5 CFM 10% |
| Fan Air Pressure |
0.7~3.5 mm H2O 10% |
| Fan Life Expectancy |
40,000 hours |
| Fan Noise Level (dB-A) |
21~39 dBA |
| Bearing Type |
Rifle bearing |
| Connector |
4-Pin |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.3A |
| Power Consumption |
3.6W |
| Pump Life Expectancy |
70,000 hrs |
| Pump Noise |
<25 dBA |
| Pump Rated Voltage |
12 VDC |
| Pump Power |
2.9W |
