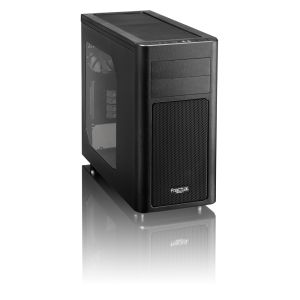

ARC Mini R2
Information
The Arc Mini R2 micro ATX case combines excellent cooling potential and build configurability in a compact, minimalistic and elegant chassis design.
For a case of this size, it offers unmatched possibilities for water cooling components. And with room for up to six 3.5 drives plus an additional two 2.5 drives hidden behind the motherboard plate, you can build a well-cooled PC with ample storage space.
The Arc Mini R2 is built to last and is filled with smart features such as dust filters, fan controller, space for tidy cable routing, three case fans included and a window side panel.
Key Features
- A compact micro ATX case designed for exceptional airflow and cooling
- Superior water cooling support for its size, accommodating multiple thick 240mm radiators or even a 360mm radiator for an uncompromised cool system build
- Three Silent Series R2 fans included, giving you excellent cooling straight out of the box! 4 additional fan positions are available
- Featuring an integrated three-speed fan controller and USB 3.0 on the front panel for easy access
- Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
- Great storage capacity for a mini chassis, with up to six 3.5 drives and two additional 2.5 drives
- Innovative SSD position mounting, using brackets to allow for easy access once your system is completely built
- Featuring a large stylish window side panel to show off your set up in style
- Designed with ample space for easy, tidy cable routing and an overall a neat build
Specifications
- Micro ATX, Mini ITX motherboard compatibility
- 2 - 5.25" bays
- 6 - 3.5" HDD trays - all compatible with SSDs
- 2 - 2.5" dedicated SSD positions behind the mothboard plate
- 4 + 1 expansion slots
- 7 - Fan positions (3 Silent Series R2 fans included)
- Filtered fan slots in front, top and bottom
- CPU coolers up to 165 mm tall
- PSU compatibility: ATX PSUs up to 170 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 220 mm deep) can be used
- Graphics card compatibility: Graphics cards up to 260mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 400mm in length may be installed
- 20 mm of space for cable routing behind the motherboard plate
- Thick rubber grommets on all holes on the motherboard plate
- Window side panel included
- Colors available: Black
- Case dimensions (WxHxD): 210 x 405 x 484mm
- Net weight: 9kg
- Package dimensions (WxHxD): 280 x 475 x 565mm
- Package weight: 10kg
Cooling system
- Front:2 - 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)
- Rear: 1 - 120mm fan (included is ahydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)
- Top:2 - 120/140mm fans (included is onehydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) 1 - 120mm fan (not included)
- Bottom: 1 - 120mm fan (not included)
- Fan controller: 1 - integrated fan controller for up to 3 fans (included)
- Water cooling compatibility:
- Front 240mm radiator (thick and slim) when HDD cages are removed, radiator cannot exceed 275mm in total length with the ODD bay in place.
- Top 240mm or 360mm radiators (thick and slim); the use of 360mm radiators requires removal of the ODD cage.
- Bottom 120mm radiators
- Rear 120 and 140mm radiators
Front interface
- 2 - USB 3.0
- Audio in/out
- Power button with LED (blue)
- HDD activity LED (red)
- Reset button
- Fan controller
Package contents
- Arc Mini R2 computer case
- Accessory box
- User manual
Additional information
- EAN/GTIN-13: 7350041081104
- UPC: 817301011105
- Product code: FD-CA-ARC-MINI-R2-BL-W
- Available for System Integrators
