All stock codes associated to this product
CLF009PL12BUA, CL-F009-PL12BU-A
Design

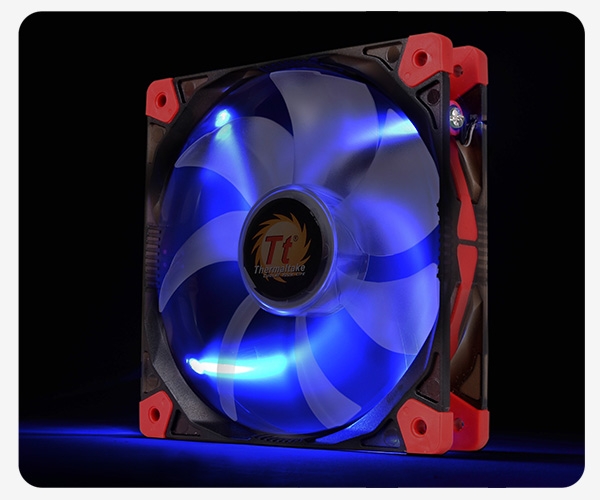

The Thermaltake Luna 12 LED fan provides efficient, and quiet cooling whether
used to pull cool air into the PC system or push hot air out. With precisely
balanced fan blades and long life bearing, it guarantees ultra low noise. In
total of 3 colors of selection (Red, White and Blue), to add up styles into the
PC case.

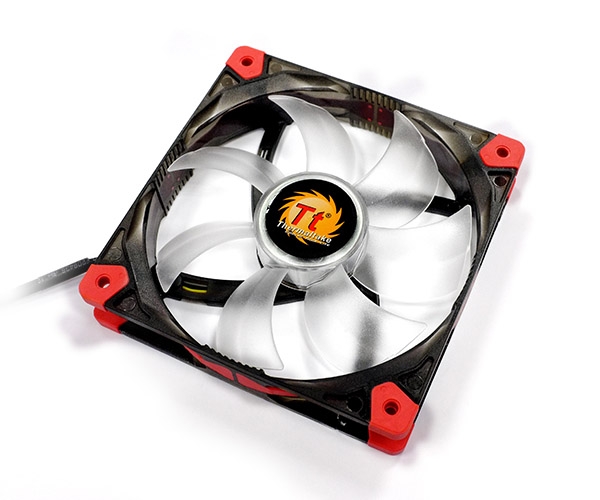

Anti vibration mounting system
In-mold injection anti-vibration rubber pads provide hassle-free usage 80%
protection coverage including all four corners and the frame.

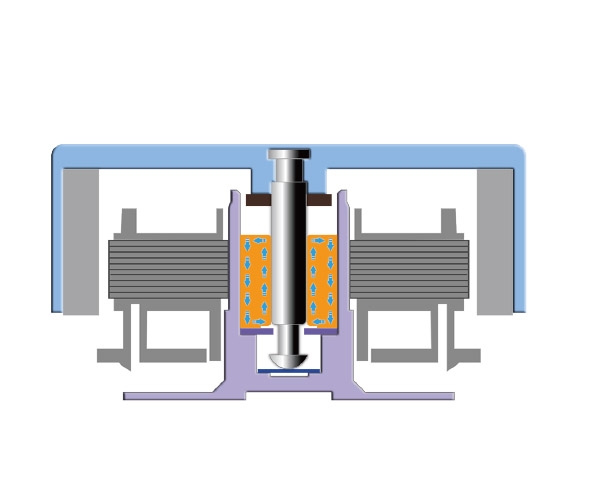

Hydraulic Bearing Offers Lower Noise and Longer Lifespan
Hydraulic bearing self lubricates with a high quality, friction reducing
substance which lowers operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant improving on the lifespan of the unit.

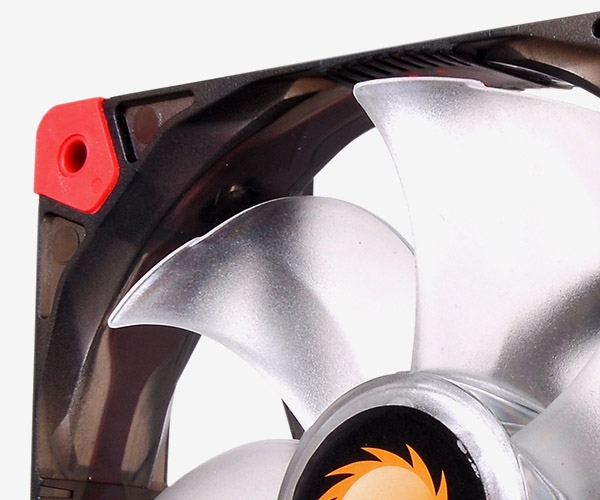

Outstanding performance
Double curved fan blades designed to provide higher air pressure at low
noise
Larger frame opening, higher air inflow
Enlarged fan frame opening enhance inflow by 60%. LUNA Fan delivers
exceptional airflow at low noise level at 1200 RPM

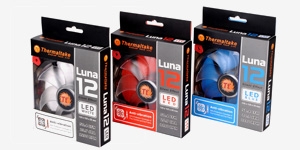

3 color LED to choose from
Luna 12 LED series are available in 3 LED vibrant colors: Red, White and
Blue, adding cooling aesthetics to your chassis.
Specifications
|
P/N |
CL-F009-PL12BU-A |
|
Fan
Dimension |
120 x 120 x 25
mm |
|
Started
Voltage |
9.0
V |
|
Rated
Voltage |
12
V |
|
Rated
Current |
0.16
A |
|
Power
Input |
1.92
W |
|
Fan
Speed |
1200
R.P.M |
|
Max. Air
Pressure |
1.32
mm-H2O |
|
Max Air
Flow |
50.44
CFM |
|
Noise |
20.7
dB-A |
|
Bearing
Type |
Hydraulic |
|
Life
Expectation |
40,000 hrs,25 |
|
Connector |
3
PIN |
|
Weight |
121.3
g |
