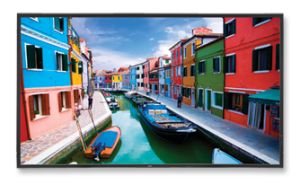

46” High-Performance LED-Backlit Commercial-Grade Display w/ Integrated Speakers
V463

NEC’s 46” V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V463’s commercial-grade panel is capable of displaying brilliant imagery and capturing the audience’s attention. This full HD model features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.

  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry’s first standardization option slot that simplifies digital signage installations
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components enable extended run time
  • Expanded connectivity with digital loop-through
  • TileMatrix™ allows you to create video walls up to 10 x 10
  • Available as a bundle with single board computer (V463-PC)
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Present, share, and collaborate with included DisplayNote® NEC Edition presenter license

Product Specifications

Display

Panel Technology  A-MVA

Viewable Image Size  46"

Native Resolution  1920 x 1080

Pixel Pitch  0.53mm

Backlight Type  LED Edge-lit

Pixels Per Inch  [email protected] native resolution

Brightness (typical)  350cd/m2

Brightness (maximum)  500cd/m2

Contrast Ratio (typical)  4000:1

Viewing Angle  178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Refresh Rate  60Hz

Aspect Ratio  16:9

Active Screen Area  40.1x 22.5in. /1018.1 x 572.7mm

Orientation  Landscape/Portrait

Displayable Colors  More than 16.7 million

Synchronization Range

Horizontal (Analog/Digital)  31.5-91.1 kHz

Vertical  50-85 Hz

Input Signal

Video  Analog RGB 0.7 Vp-p/75 Ohms

Sync   Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

PC Signal Compatibility  Yes

Macintosh Compatibility  Yes
Input Terminals
Digital  DisplayPort, HDMI, DVI-D
Analog  VGA 15-pin D-sub (shared S-Video, Video, Component), BNC Composite
Audio  Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
External Control  RS-232C, Ethernet (RJ45), IR Remote, DDC/CI

Output Terminals
Audio  Stereo Mini-Jack, External Speaker Jack (2)
Digital  DVI-D
External Control  RS-232C

Power Consumption (typical)

On  76W

ECO Mode Standby  <2W

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)  0.7 in./0.7 in., 0.7 in./0.7 in. ; 18.3mm/18.3mm, 18.3mm/18.3mm

Dimensions (WxHxD)
Net (with stand)  41.7 x 25.6 x 9.4in. / 1058.2 x 649.8 x 240.0mm
Net (without stand)  41.7 x 24.1 x 2.6in. / 1058.2 x 612.8 x 65.1mm
Shipping  49.6 x 31.0 x 8.9 in. / 1260 x 788 x 225mm

Weight
Net (with stand)  44.5 lbs. / 20.2 kg
Net (without stand)  41.7 lbs. / 18.9 kg
Shipping  52.7 lbs. / 23.9 kg

VESA Hole Configuration Specifications

300 x 300mm (4-hole)

Environmental Conditions

Operating Temperature  41-104°F / 5-40°C
Operating Humidity  20-80%
Operating Altitude  9843 ft. / 3000m
Storage Temperature  -4-140°F / -20-60°C
Storage Humidity  10-90%
Storage Altitude  40,000 ft. / 12,192m\

Limited Warranty (parts & labor, including backlight)

3 years

Additional Features

  • Advanced thermal capabilities
  • Advanced cooling system
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Screen saver function
  • POP
  • Side-by-Side
  • Kensington lock
  • Touch- and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speakers
  • OPS-Compliant slot

Ships With

  • Power cord
  • 1.8m DVI-D cable
  • Wireless remote control
  • Batteries
  • Main switch cover
  • CD-ROM (user manual)
  • Clamp
  • Screws
