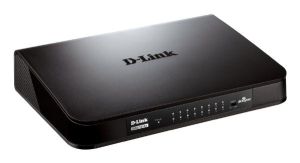

16-Port Unmanaged Gigabit Switch


DGS-1016A

The D-Link DGS-1016A is a 16-Port 10/100/1000Mbps switch that works with your current Ethernet network while allowing you to upgrade to gigabit speeds. With an aggregated bandwidth of up to 32Gbps and up to 9K jumbo frame support, its addition to any network will dramatically improve traffic flow and eliminate bottlenecks. Installation is plug-and-play, as every port supports auto-MDI/MDI-X. DGS-1016A is an economical solution for bandwidth-intensive environments needing a compact desktop form factor.

  • 16 Ports with Gigabit Ethernet Speed
  • Revolutionary Design
  • Eco-Friendly

Overview

Gigabit on Every Port

The 16-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Innovative Design

The sleek plastic case of the DGS-1016A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.

Conserves Energy

The 16-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.

Think Green

The DGS-1016A 16-Port Unmanaged Gigabit Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.

Features

  • Ports
  • 16 ports
  • IEEE 802.3x Flow Control
  • Full Duplex Operation
  • Plug-and-Play
  • Jumbo Frame Support
  • Green Technology Energy Savings
  • Eco-friendly technology, reduced power consumption
  • Perfect for Small to Medium Businesses
  • IEEE 802.3ab 1000Base-T Compliant
  • Jumbo Frame
  • 9,216 Bytes
  • MAC Address Table Size
  • MAC Address Table Size 8K
  • Limited Lifetime Warranty

Specifications

Number of Ports

  • Sixteen 10/100/1000 Gigabit ports

Switching Capacity

  • 32Gbps

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)

Data Transfer Rates

Ethernet:

  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)

Fast Ethernet:

  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Gigabit Ethernet:

  • 2000 Mbps (full duplex)

Network Cables

10BASE-T:

  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T
  • UTP CAT 5/5e (100m max)
  • EIA/TIA-568 100-ohm STP (100 m max)


Media Interface Exchange
  • Auto MDI/MDIX adjustment for all ports


LED Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power


Transmission Method
  • Store-and-forward


MAC Address Table
  • 8k


MAC Address Learning
  • Automatic update

MAC Address Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port


RAM Buffer

  • 2Mbits

Jumbo Frames

  • 9216 Bytes

D-Link Green

  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving
  • RoHS Compliance

Power Inputs

  • Switching 12V/1A level V power adapter

Power Consumption

  • Power On (Standby): AC input: 3.12 Watts
  • Power Max.: AC input: 7.89 Watts

Heat Dissipation

  • Power On (Standby): AC input: 10.65 BTU/h
  • Power Max.: AC input: 26.92 BTU/h

MTBF

  • 527,308 hours

Operating Temperature

  • 32 to 104 F (0 to 40 C)

Storage Temperature

  • 14 to 158 F (-10 to 70 C)

Operating Humidity

  • 10% to 90% non-condensing

Storage Humidity

  • 5% to 90% non-condensing

Dimensions

  • 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm)

Weight

  • 1.28 lbs. (580g)

Certifications

  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • uCL
  • CB
  • VCCI Class A
  • C-Tick Class A

Warranty

  • Limited Lifetime

Order Information

  • 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm)
