- DSL connection on VDSL and ADSL2+, with either analog or ISDN fixed-line network
- Supports IP-based lines
- Also ideal for use with an external modem (Ethernet WAN port) or UMTS stick (UMTS/HSPA)
- 4 x gigabit Ethernet (10/100/1000 Base T) for computers, game console, network, IP telephone
- WLAN radio networks compliant with conventional standards (802.11ac, n, g, b, a)
- 2 x USB 3.0/2.0 for printer, storage, UMTS stick and Stick & Surf
- DECT base station for up to 6 cordless telephones
- Port for ISDN telephones or telephone systems (Fon S0)
- Port for 2 analog telephones, fax or answering machine

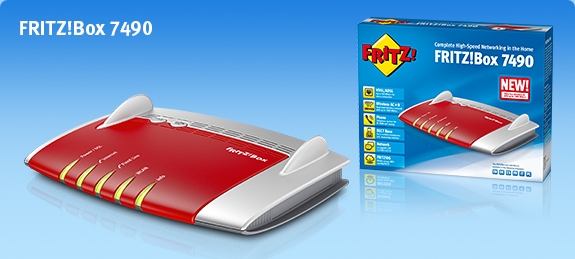

FRITZ!Box 7490 Usability
AVM's FRITZ!Box has been designed to make technology easy and user-friendly. Our FRITZ!Box installation wizards and intuitive browser-based configuration menu set standards for usability.
We are continuously committed to making sure that every FRITZ!Box user can take advantage of all functions and individualize our FRITZ!Box to fit her or his needs. Our comprehensive documentation and e-mail support emphasize AVM's dedication to the best user experience possible so that the FRITZ!Box can enjoy a broad popular basis.
- Simple configuration in browser (depends on operating system) allows use with Windows, Mac OS and Linux
- User interface and installation wizards in German, Italian, English, French, Spanish and Polish
- Telephones, answering machines and fax can be configured individually
- Dialing rules for individualized use of Internet and fixed-line telephony
- Quick-dial function, number blocking, throughput function, call list
- Telephone book with names, telephone numbers, quick-dial numbers and print function
- WLAN encryption with individual password ex works
- WLAN can be turned on an off via switch and connected telephones
- Simple registration of cordless DECT phones via switch
- Up to three calls over DECT possible simultaneously
- Integration of cloud contacts (Google, GMX, 1&1 and Web.de) as well as automatic synchronization of changes on either the FRITZ!Box or at the cloud provider
- Configurable access protection for USB storage
- Advanced view for individualized application scenarios
FRITZ!Box 7490 Details
In the following overview you will find important facts, technical features, and special functions of the AVM FRITZ!Box.
- Suitable for ADSL (8 Mbit/s), ADSL2+ (24 Mbit/s) and VDSL (100 Mbit/s)
- Wireless LAN compliant with 802.11ac (up to 1300 Mbit/s gross, 5 GHz) and 802.11n (up to 450 Mbit/s gross, 2.4 GHz), downward compatible to WLAN 802.11g, b and a
- WLAN Eco and DECT Eco for optimum performance at minimum power consumption
- Secure ex works thanks to wireless LAN and DECT encryption as well as a preset firewall
- 4 x Ethernet (10/100/1000 Base-T) for connecting and networking computers and game consoles
- Sharing of existing Internet connection over LAN or wireless LAN (guest access)
- FRITZ!NASsimple, browser-based access to all files in the network, wherever they are stored
- Media server distributes music, photographs, and video to capable receivers (SMB, FTP, UPnP AV)
- 5 answering machines featuring voice-to-mail
- Supports HD telephony for natural sound
- Fax reception with e-mail forwarding (fax-to-mail)
- Supports the new IPv6 web protocol
- Secure remote access over the Internet (VPN)
- Many supplementary and convenience functions
- Average power consumption: 9.3 W
