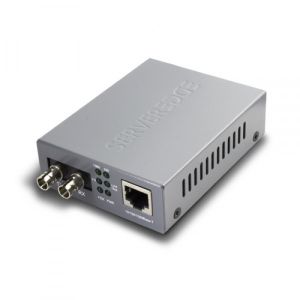

Serveredge 10/100/1000Base-TX to 1000Base-FX Multimode ST Fibre Media Converter (550M)
Product Description
The Serveredge Gigabit Media Converter SED-1000MST(550m) allows you to transparently connect your Gigabit Copper cabling system (10Base-T,100Base-TX or 1000Base-T) with the fibre optic cabling system(1000Base-FX) . This media converter provides a long distance connection between legacy 10BaseT and 100BaseTX networks and the 1000Base Gigabit Ethernet networks.
The SED-1000MST(550m) incorporates advances features such as Auto-Negotiation, Auto-MDIX,Link Pass- Through, Fibre Fault Alert & loop back . This Unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.
Product Specification
Performance
Latency: < 4.2 µs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
FIBER INTERFACE, MULTIMODE MODELS
Type: Laser Diode
Wavelength: 850 nm nominal
Maximum Output Power: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB
PHYSICAL CHARACTERISTICS
Case dimensions: 110mm x 81mm x 23mm
Weight: 150 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity: 10 ~ 90%, non-condensing
POWER
External power adapter: 12 Volts DC; 600 mA
Power Consumption: 5 Watts Maximum
PRODUCT FEATURE
Built - In Twisted - Pair Port 10/100/1000 Switch
Auto- Negotiation RJ45 Connector with Auto-MDIX
SC,ST,MTRJ or LC Connector
LEDs for Functions, Links & Activity
Link Fault Signaling For Use with Managed Switches
1024 Mac Address Capacity
Store and Forward Architecture
Singlemode Spans up to 120Km
Wall or Chassis Mountable
IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3ab 100BaseT Compliant
Compliant to FCC part 15 Class A,CE Mark, CTick
Lifetime Warranty
