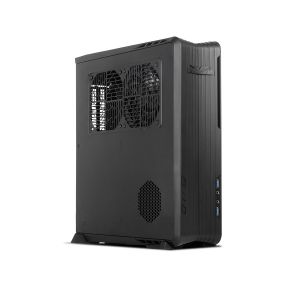

RVZ01


RVZ01 Introduction

Since the original RAVEN RV01 debuted in 2008, the RAVEN team at SilverStone has demonstrated many times how it can truly define or defy computer enthusiasts expectations of what a performance PC is capable of in both form and function. For 2014, the team had a new target, which is to exceed and reshape the small form factor landscape with another breakthrough case design. The result of this effort is a new line of case products called RAVEN Z. As the first model, RVZ01 is unlike any SilverStone small form factor cases before it. Utilizing a PCI-E riser and custom designed fans, this slim, 14 liter case is capable of housing the biggest consumer graphics card on the market with superb air cooling performance and the ability to support liquid cooling*. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those that have been waiting to make the move to small form factor computing with a truly standout case to build with, the RVZ01 is it.

  • Signature RAVEN styling touches
  • Support graphics card up to 13 inches
  • Mini-ITX motherboard & SFX PSU compatible
  • Maximum performance in slim form factor with support for liquid cooling*
  • Positive air pressure design for excellent cooling/quietness and dust-prevention
  • Fits in nearly any environment with horizontal or vertical orientation

RVZ01 Feature list

  • Signature RAVEN styling touches
  • Slim slot-loading optical drive slot
  • Mounting holes for one 2.5” SSD/HDD or a Laing DDC pump
  • Front USB 3.0 and I/O ports
  • One 3.5” HDD can be mounted on into the PSU bracket
  • Adjustable graphic card holder
  • Support graphics card up to 13 inches
  • Dual 2.5” SSD/HDD slots
  • High-performance SilverStone customized riser card
  • Support Mini-ITX & Mini-DTX motherboard

RVZ01 Specifications

Model No.

SST-RVZ01B (black)

Material

Reinforced plastic outer shell, steel body

Color

black

Motherboard

DTX, Mini-ITX

Drive Bay

External Slim slot-loading optical x 1
Internal 3.5 x 1, 2.5 x 3

Cooling System

Top

1 x 120mm fan, 1500rpm, 18dBA

Bottom

1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot


Expansion Slot
2

Front I/O Port

USB 3.0 x 2
audio x 1
MIC x 1

Power Supply
SFX

Expansion Card
Support graphics card up to 13, width restriction - 5.88

Limitation of CPU cooler

83mm

Net Weight

3.71kg

Dimension

382mm (W) x 105mm (H) x 350mm (D), 14 liters

Extra

Support two Kensington locks

Liquid cooling support limited to component that fit within RVZ01s predefined dimensions. For detailed information, please refer to manual.
