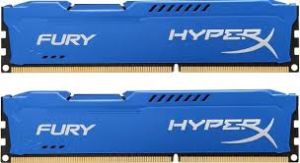

HX318C10FK2/16

16GB (8GB 1G x 64-Bit x 2 pcs.)

DDR3-1866 CL10 240-Pin DIMM Kit

DESCRIPTION

HyperX HX318C10FK2/16 is a kit of two 1G x 64-bit (8GB) DDR3-1866 CL10 SDRAM (Synchronous DRAM) 2Rx8 memory modules, based on sixteen 512M x 8-bit DDR3 FBGA compo-nents per module. Total kit capacity is 16GB. Each module kit has been tested to run at DDR3-1866 at a low latency timing of 10-11-10 at 1.5V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC stan-dard electrical and mechanical specifications are as follows:

PnP JEDEC TIMING PARAMETERS:

DDR3-1866 CL10-11-10 @1.5V
DDR3-1600 CL9-10-9 @1.5V
DDR3-1333 CL8-9-8 @1.5V

FEATURES

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 933MHz fCK for 1866Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
  • Asynchronous Reset
  • PCB : Height 1.180 (30.00mm), double sided component

SPECIFICATIONS

  • CL(IDD) 10 cycles
  • Row Cycle Time (tRCmin) 44.75ns (min.)
  • Refresh to Active/Refresh 260ns (min.)
  • Command Time (tRFCmin)
  • Row Active Time (tRASmin) 32.125ns (min.)
  • Maximum Operating Power TBD W* (per module)
  • UL Rating 94 V - 0
  • Operating Temperature 0oC to 85oC
  • Storage Temperature -55oC to +100oC
  • Power will vary depending on the SDRAM used.
