All stock codes associated to this product
NF5, NWNCNF5ROUTER, NWNC-NF5ROUTER, 9317773016345
N300 WiFi Gigabit Router with Voice - NF5
Overview

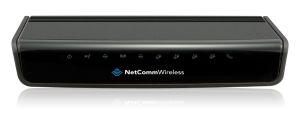

N300 WiFi Gigabit Router with Voice
The NetComm Wireless NF5 is a future ready WiFi router that connects the home or office to super-fast broadband. Simply connect your fixed line modem to the Gigabit WAN port for instant Internet access - perfect for NBN/Fibre connections. With a WiFi N access point and 4 Gigabit Ethernet LAN ports, sharing your high speed Internet connection is simple. With a built-in phone port for making calls over the Internet, this router can be a landline replacement and with support for IPv6 can continue to be used well into the future.
Strong WiFi
Share your high-speed 300Mbps WiFi network with others and connect multiple wireless devices such as laptops, tablet computers, smart phones and gaming consoles on a single broadband account for an efficient and cost-effective connection.
NBN Ready
Future-proof yourself with a router that can be used today but is also ready for what’s available tomorrow. The Gigabit WAN port can connect directly to your NBN service when it is available and the NF5 has carefully developed hardware and software features that ensure it is optimised for use on the NBN.
Collective 3G/4G and storage capacity
The USB host port delivers a whole new dimension of flexibility. Connect a 3G/4G USB modem for instant wireless broadband Internet access from a holiday home or other places without a fixed line connection. Or, insert a USB hard drive for the storage of large files, and shared access to documents.
The Voice difference
Dramatically reduce your phone bills by making calls over the Internet with VoIP. Simply connect a regular telephone to the FXS port to make cost-effective online calls; and if connecting with NBN, your phone line can be completely replaced.
Technical Specifications
PACKAGE INCLUDES
- N300 WiFi Gigabit Router with Voice
- Power Adapter
- Ethernet Cable (RJ-45)
- Printed Quick Start Guide
- Wireless Security Card
- Warranty Card
ENVIRONMENTAL AND PHYSICAL
- Operating temperature: 0-40C, Humidity: 10%-90% non-condensing
- Storage temperature: -10-70C, Humidity: 0%-95% non-condensing
- DC Input Voltage 12V/1.5A
DEVICE INTERFACE
- 1 x RJ45 port (Blue) 10/100/1000 Mbps
- 4 x RJ45 port (Yellow) 10/100/1000 Mbps,
- 1 x RJ11 port (Grey), FXS for regular phone set
- 1 x WPS/Reset Button
- 1 x USB 2.0 (black) for external 3G/4G modem and file sharing
- Power button
- Power Jack
- LED (Power/USB/WAN/LAN1-LAN4/WiFi/Phone)
WIRELESS WAN
- 1 x USB 2.0 Port for external 3G/4G modem
- PPP (for WCDMA / HSPA)
- Automatic 3G Failover function
WIFI
- Unique Wireless SSID and encryption key
- IEEE 802.11n. Compatible with IEEE 802.11b/g/a
- SSID broadcast or in stealth mode
- Auto/Manual Channel selection
- WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
- WPS button (WiFi Protected Setup)
ETHERNET WAN
- 1 x Gigabit WAN port (10/100/1000 Mbps)
- PPPoE, DHCP client, Static IP, PPTP, L2TP
IPV6 SUPPORT
- Static IPv6
- PPPoE
- DHCPv6
- Dual Stack IPv6
VOIP
PROTOCOL
VOICE COMPRESSION
- G.711-Alaw voice compression
- G.711-Mulaw voice compression
- G.726-32 voice compression
- G.729AB voice compression
- G.168 116 ms tail line echo cancellation
CALL FUNCTION
- Call forward
- Caller ID
- Call waiting
- 3-way conference call
SECURITY
- IP/Service Filter
- URL blocking
- MAC control
- DoS (Denial of Service) Protected
ROUTING
- Static Route
- Dynamic Route (RIP v1/v2)
- DMZ
- DDNS
- IPTV IGMPv1/v2/v3 snooping and filtering,
- VLAN tagged/ Untagged frames
- Jumbo Frame
- VPN Pass-through (PPTP/L2TP/IPSec)
ADMINISTRATION
- SNMP
- UPnP
- IGD
- Syslog
- Web-based UI
- Remote Login
- TR-069/TR-064 Auto provisioning
- Backup/Restore Settings
- QoS: Support QoS mechanism for prioritizing the various type of traffics, TOS/DSCP to 802.1p mapping (DiffServ)
STORAGE
- Storage/File Sharing: FAT16/FAT32, EXT2, NTFS (Read only)
- Samba server, FTP server
- Supports DLNA
Specifications are subject to change without notice
