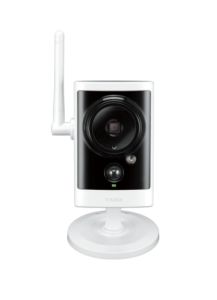

Outdoor HD Wireless Network Cloud Camera


DCS-2330L

  • Outdoor-Ready - IP65 weatherproof housing protects the camera from the elements
  • 720p HD - Superior image quality for your surveillance video
  • Motion Detection - Enhanced email alerting based on motion sensing technology
  • Night Vision - View up to 15 feet in complete darkness
  • Remote Viewing - View on iPhone, iPad or Android with mydlink app or mydlink.com
  • Local Recording - Record video directly to a connected microSD card

Overview

DCS-2330L product page

Specifications

Hardware Profile

  • 1/4 Megapixel progressive CMOS sensor
  • 5 meter IR illumination distance
  • Minimum illumination: 0 lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Built-in PIR sensor (5 meter)
  • Built-in microphone
  • 10x digital zoom
  • Focal length: 3.45 mm
  • Aperture: F2.0

Field of View

  • (H) 57.8, (V) 37.8, (D) 66

Camera Housing

  • IP65 compliant weatherproof housing

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation,contrast, and sharpness

Video Compression

  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images

Video Resolution

  1. 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 up to 30 fps recording1
  2. 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 up to 30 fps recording1

Audio Support

  • G.726
  • G.711

Network Protocols

  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Requirements for Web Interface

  • Browser: Internet Explorer, Mozilla Firefox, or Google Chrome

Event Management

  • Motion detection
  • Event notification and upload snapshots/video clips via email or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support

  • Windows 8/ 7/Vista/XP system, Pocket PC, or mobile phone
  • mydlink mobile app for iOS and Android mobile devices

D-ViewCam System Requirements

  • Operating System: Microsoft Windows 8/7/Vista/XP5
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP

D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions in web interface
  • Scheduled motion triggered or manual recording options

Power

  • 5 V DC, 1.2 A through external power adapter
  • External Power Adapter Input:100 to 240 V AC, 50/60 Hz

Max. Power Consumption

  • 5.5 watts max.

Operating Temperature

  • -13 to 113 F (-25 to 45 C)

Storage Temperature

  • -4 to 158 F (-20 to 70 C)

Operating Humidity
  • 20% to 80% non-condensing

Storage Humidity
  • 5% to 95% non-condensing

Certifications

  • FCC Class B
  • CE
  • CE LV D
  • C-Tick

Dimensions

  • 2.6 x 5.53 x 3.66 (66mm x 140.5mm x 93mm)

Weight

  • 8.99oz (255 grams)

Warranty

  • 1-Year Limited4

1 Use of audio or video equipment for recording the image of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws.
2 The inclusion of a specific product or manufacturer does not imply its endorsement of D-Link or the D-Link product.
3 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
4 1-Year Limited Warranty available only in the USA and Canada.
5 Computer must adhere to Microsofts recommended System Requirements.
6 Zero Configuration requires mydlink-enabled Cloud Router.
7 Frame rates when streaming video may vary depending on network conditions and method used.
8 microSD card not included
All references to speed and range, including the performance chart, are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details.
