All stock codes associated to this product
60609195, 60-609-195, 1620424, 698833015300

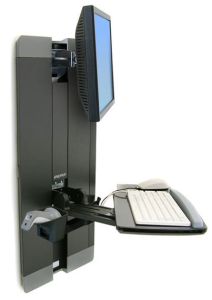

StyleView® Vertical Lift, Patient Room (black)
Part Number: 60-609-195
Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.
The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!
Benefits
Side-to-side pan of keyboard and display promote patient-caregiver interaction while accessing data
Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry
With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (229 mm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!
Specifications:
Part Number: 60-609-195 (formerly 60-594-195)
Description: StyleView Vertical Lift, Patient Room version (black)
Includes mouse pad, wrist rest, mouse pouch, scanner holder

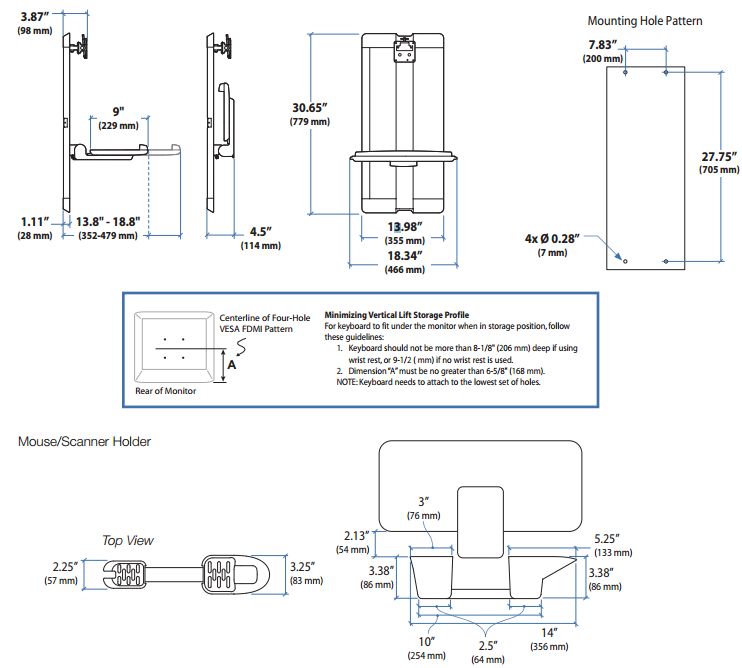

Larger display sizes may inhibit the keyboard tray folding flat in storage position. See Dimensional Illustrations for details

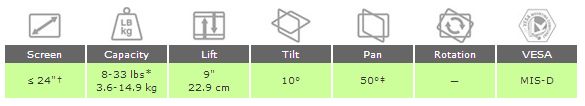

Weight Capacity: Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Monitor pans left/right up to 50° (varies per size of monitor)
Fold-down keyboard with built-in mouse pad surface
Keyboard tray extends out up to 5" (12.7 cm) inches when in use
Keyboard tray pans left/right up to 120°
Scanner and mouse holder integrated into the keyboard tray
Back-tilt keyboard tray adjustable (0 to -10 degrees)
Integrated cable management system can be configured on either side
Easy-to-clean exterior
Shipping Dimensions: 39.5" x 16" x 10.75" (1000 x 406 x 273 mm)
Shipping Weight: 35.5 lbs (16.1 kg)
Warranty: Five (5) years
