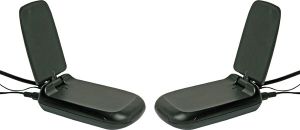

S9359 - 5.8Ghz Wireless AV Sender & IR Repeater

Overview

Designed for transmitting composite video and stereo audio to a second television. For example a VCR or DVD could be transmitted from your main viewing area to a bedroom or games room up to 30m away. The IR repeater also enables the VCR or DVD remote control to be used in the second room.

Features

  • Selectable 7 channel 5.8GHz
  • Transmits crisp AV signal
  • Remote control the AV source with built in IR repeater
  • Wide band IR receiver suitable for use with RC6 code equipment (eg. Foxtel Foxtel IQ)
  • Compatible with CCD/CMOS cameras
  • Supplied with RCA AV cable and IR eye lead
  • Plugpacks included

Applications:

Simultaneous viewing of video programs on a 2nd TV/monitor without wires.
Wireless transmission of Hi-Fi stereo to any active speaker.
Remote monitoring of live video from a camcorder or CCD camera.
Local area broadcasting of audio/video programs for multiple viewers even in different rooms

Specifications

  • Frequency Range: 5725 ~ 5875MHz
  • Channel Selection: PLL Synthesizer 7CH
  • Video/Audio Mod/Demod. Type.: FM-FM
  • Video Polarity: Negative
  • Supply Voltage: DC +9V
  • DC IN Jack: 3.5mm
  • Power On LED Indicator: Red
  • Channel Selector: 2 Slide switches
  • IR Remote Extender: Built-In
  • Operating Frequency: 433.92MHz
  • Antenna Type.: Patch Antenna
  • Mod./ Demod. Type.: ASK

Transmitter Spec

  • Supply Current: 140mA 10mA(CE,FCC) / 340mA 10mA(High power)
  • Input Port: 3.5mm AV Phone Jack
  • Output Power: 13dBm 1dB ( CE ) / 0dBm 1dB ( FCC ) 20dBm 2dB (High power)

IR Extender Receiver

  • Receiving Sensitivity: -95dBm,min
  • IR Carrier Frequency: 32 ~ 57KHz
  • IR LED Operation Range: 4~5 Meters
  • External IR LED Port: 2.5mm Mono Phone Jack

Receiver Spec

  • Supply Current: 230mA 20mA
  • Output Port: 3.5mm AV Phone Jack
  • Input Sensitivity: -85dBm, Typ. ( @ Video S/N Ratio19dB)
  • Video Output: 1VP-P , typ. (0.2V)
  • Video Frequency Response (+/-5 dB): 50Hz~5.5MHz
  • Video S/N Ratio (100KHz, 1VP-P Sine Wave): 40dB,min
  • Audio Output Signal Level (1KHz Sine Wave): 2VP-P, typ. (0.3Volt)
  • Audio Output Frequency Range (6dB): 50Hz ~ 20KHz
  • Audio S/N Ratio (1KHz @ 2VP-P): 50dB, typ. (3dB)

IR Extender Transmitter

  • RF Output Power: 8dBm 2dB (CE) ; 0dBm 2dB (FCC)
  • IR Receiver module carrier freq.: 32 ~ 57KHz
  • IR Sensor Operation Range: 7.5 Meters, min
  • IR Sensor Half Angle: 45Horizontal

Specifications are subject to change without notice.
