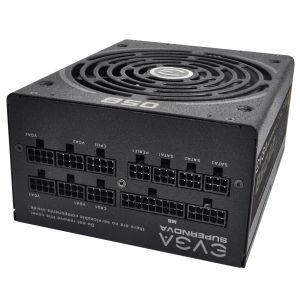

EVGA SuperNOVA 850 G2 Power Supply
P/N: 220-G2-0850-XR
Overview
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
Unleash the next generation in power with the EVGA SuperNOVA 850 G2 Power Supply. Based on the award winning G2 series Power Supplies from EVGA, this power supply features 80 PLUS Gold rated efficiency, and clean, continuous power to every component. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. Backed by a 10 year warranty and Japanese capacitor design, the EVGA SuperNOVA 850 G2 is not only the right choice for your system today, it is also the best choice for your system tomorrow.
Features
Key Features
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- 80 PLUS Gold certified, with up to 90% efficiency under typical loads
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI Ready
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Specifications
Cable Length
|
| ATX Cable |
1x 600mm (m) |
| EPS Cable |
2x 700mm (m) |
| PCIE Cable |
2x 700mm, 850mm (m) 2x 700mm (m) |
| SATA Cable |
2x 550mm, 650mm, 750mm (m) 1x 550mm, 650mm, 750mm, 850mm (m) |
| Four-Pin Peripheral Cable |
1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Cable |
1x 100mm |
| AC Power |
1x 1500mm (m) |
| |
Power Specs
|
| AC Input |
100 - 240 VAC, 10A, 50 - 60 Hz |
| Rail |
+3.3V |
+5V |
+12V |
+5Vsb |
-12V |
| Max output |
24A |
24A |
70.8A |
3.0A |
0.5A |
| 849.6W |
| 120W |
849.6W |
15W |
6W |
| Total |
850W @ +50C |
Product Warranty
This product comes with a 10 year limited warranty with registration within 30 days of purchase.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
