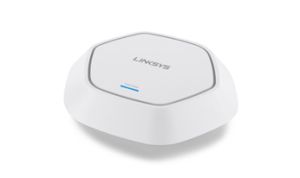

Wireless AC Speed up to 1750Mbps
Linksys Pro Series Wireless AC Dual Band Access Points deliver data rates at up to 3x faster than the 802.11n standard.* With bandwidth speeds up to 1750 Mbps, and wider 80 MHz channels your wireless network can grow without losing speed.
Single Point Control: Cluster
Cluster System Management simplifies administration and management efforts with a Single Point Control, simultaneously reducing the costs and complexity of managing multiple wireless access points.
Captive Portal
Linksys Pro Series Wireless-AC Dual Band Access Point implements a captive portal to support secure and customized guest Wi-Fi access and can be used at many Wi-Fi hotspots to control wireless access in the area.
3-in-1 Access Point, WDS & Workgroup Bridge
Supports deployment as a traditional access point, a wireless distribution system (WDS), or set up as a wireless bridge to extend wireless range.
Easy to Use with PoE+
Integrated 802.3at Power over Ethernet Plus (PoE+) capability eliminates external adapters and facilitate optimal placement.
Comprehensive Network Security
Protect and secure your wireless network with business class security features including Wi-Fi Protected Access (WPA/WPA2), 802.1X Supplicant Authentication, MAC-based ACL, Rogue AP Detection, SSID-to-VLAN Mapping, and more.
Maximum Performance derived from IEEE Standard 802.11 specifications (draft specifications for 802.11ac). Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends upon many factors, conditions and variables, including products used, interference and other adverse conditions. 802.11ac 1300 Mbps in the 5GHz Band is approximately 3 x faster than 802.11n 450 Mbps in the 2.4GHz Band. An 802.11ac adapter will be needed to achieve 11ac data rates and up to 1300 Mbps wireless speeds may be achieved when connecting to other 802.11ac 1300 Mbps devices.
Specifications
Hardware Specs
| Model: |
LAPAC1750PRO |
| Standards: |
IEEE 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac |
| Frequency: |
2.4 GHz and 5 GHz (concurrent) |
| MIMO: |
3 x 3 |
| Antenna: |
Internal Antenna |
| RF Output Power: |
High Power PA |
| PoE: |
802.3at |
| Installation Options: |
Ceiling Mount, Wall Mount |
| Ethernet Port: |
2 Gigabit Ethernet Ports |
| Security Lock: |
Kensington lock slot |
| LED: |
One system LED |
| AC Power Adapter: |
12V/2A |
| Hardware Reset Button: |
Yes |
Frequency Band and
Operating Channels: |
For FCC
2.412 to 2.462 GHz: channel 1-11
5.180 to 5.240 GHz: channel 36, 40, 44, 48
5.745 to 5.825 GHz: channel 149, 153, 157, 161, 165 |
| Antenna Gain dBi: |
4.4 [email protected]
5.2. dBi@5GHz |
| Transmitted Power: |
802.11b:
22 +/- 1.5 dBm @ Channel 6 (All rates)
18 +/- 1.5 dBm @ Channel 1 (Bandedge limit)
19 +/- 1.5 dBm @ Channel 11 (Bandedge limit)
802.11g:
22 +/- 1.5 dBm @ Channel 6 (Low rates)
21 +/- 1.5 dBm @ Channel 6 (High rates)
13 +/- 1.5 dBm @ Channel 1 (Bandedge limit)
13 +/- 1.5 dBm @ Channel 11 (Bandedge limit)
802.11n 20 MHz:
22 +/- 1.5 dBm @ Channel 6 (Low rates)
20 +/- 1.5 dBm @ Channel 6 (High rates)
13 +/- 1.5 dBm @ Channel 1 (Bandedge limit)
13 +/- 1.5 dBm @ Channel 11 (Bandedge limit)
802.11n 40 MHz:
13 +/- 1.5 dBm @ Channel 6 (All rates)(Bandedge limit)
9.5 +/- 1.5 dBm @ Channel 3 (Bandedge limit)
12 +/- 1.5 dBm @ Channel 9 (Bandedge limit)
5 GHz per chain output power
UNII-1 (5150-5250 MHz)
802.11a: 9.5 +/- 1.5 dBm @ All rates
802.11n/ac 20 MHz: 9.5 +/- 1.5 dBm @ All rates
802.11n/ac 40 MHz: 11 +/- 1.5 dBm @ All rates
802.11ac 80 MHz: 11 +/- 1.5 dBm @ All rates
UNII-3 and ISM (5725-5835 MHz)
802.11a: 21 +/- 1.5 dBm @ Low rates, 19 +/- 1.5 dBm @ High rates
802.11ac 20 MHz: 21 +/- 1.5 dBm @ Low rates, 17 +/- 1.5 dBm @ High rates
802.11ac 40 MHz: 21 +/- 1.5 dBm @ Low rates, 17 +/- 1.5 dBm @ High rates
802.11ac 80 MHz: 20 +/- 1.5 dBm @ Low rates, 17 +/- 1.5 dBm @ High rates |
| Receiver Sensitivity: |
2.4 GHz
802.11b: -87 dBm @ 11 Mbps, 802.11g: -77 dBm @ 54 Mbps, 802.11n 20 MHz: -70 dBm @ MCS23, 802.11n 40 MHz: -67 dBm @ MCS23
5 GHz
802.11a: -77 dBm @ 54 Mbps, 802.11ac 20 MHz: -61 dBm @ MCS9, 802.11ac 40 MHz: -58 dBm @ MCS9, 802.11ac 80 MHz: -56 dBm @ MCS9 |
| Physical Dimension (L x W x H): |
247.00 x 238.00 x 43.30 mm (9.72 x 9.37 x 1.70 in) |
| Weight: |
0.52 kg (1.15 lb) |
| Maximum Power Consumption: |
24W |
| Compliance Class: |
Class B, Wireless |
| Operating Temperature: |
0 to 35 C (32 to 95F) |
| Storage Temperature: |
-20 to 70C (-4 to 158F) |
| Operating Humidity: |
10% to 85% (non-condensing) |
| Storage Humidity: |
10% to 90% (non-condensing) |
| Regulatory Certification: |
FCC, CE, IC |
| Warranty Period: |
Limited Lifetime |
Software Specs
| Multiple SSIDs: |
16 |
| VLAN Support: |
Yes |
| Number of VLANs: |
17 |
| SSID to VLAN Mapping: |
Yes |
| Captive Portal: |
Yes |
| Workgroup Bridge: |
Yes |
| WDS Bridge: |
Yes |
| IPv6: |
Yes |
| Access Control per SSID: |
IPv4, IPv6, and MAC-based |
| DiffServ for QoS: |
Yes |
| WEP, WPA, WPA2, 802.1X with RADIUS: |
Yes |
| Rogue AP Detection: |
Yes |
| 802.1X Supplicant: |
Yes |
| Channel Isolation: |
Yes |
| WMM: |
Yes |
| Single/Central Management System: |
With Cluster |
| Bandwidth Utilization: |
Yes |
| Scheduler: |
Yes |
| Band Steering: |
Yes |
| Beamforming: |
Yes |
| Dual Image Support: |
Yes |
| Management Access Control: |
Mac and IP-based |
| Management Interface: |
Web (http/https), SNMP |
| Event Notification : |
Local Log, Remote Syslog, and Email Alerts |
| Network Diagnostics: |
Log, Ping, and Packet Capture |
