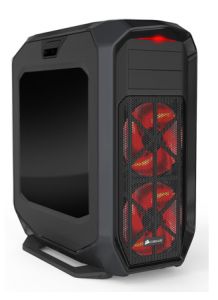

Graphite Series 780T Full-Tower PC Case


CC-9011063-WW

Overview

Premium looks, premium space, premium cooling.

The stunning Graphite Series 780T Full-Tower PC case can satisfy the most hardcore gamer or overclocker with ample room for nine drives and nearly a dozen large cooling fans. Into water cooling? Youll appreciate the generous space for dual 360mm radiators. And, youll get everything done faster: the 780T offers easy maintenance shortcuts like tool-free removal of side panels, hard drives, and graphics cards. A three-speed fan control button and generous options for peripheral connections make the front-panel a true time saver.

Rounded corners and a sleek, cohesive design

A nicely built high performance PC can be a thing of beauty, and this is truer than ever with the artfully crafted exterior.



Latched side panels for easy access

No tools or twisting are necessary to get at your components for maintenance and upgrades. You’ll get in, get out, and get on with your work or play.




Dual 360mm radiator support

Does your next dream build demand state of the art cooling? The 780T has you covered. Of course, if your heat transfer needs are a little more down-to-earth, 120mm and 240mm cooling goes in just as easily.

Dual 140mm intake fans and a 140mm exhaust fan

The 780T gives you ample airflow right out of the package. Large diameter front intake fans deliver plenty of cool air to your high performance components.


Front-panel three-mode fan controller and four USB ports

Power is nothing without control. You can be the judge of the optimal noise and cooling ratio. The three-step LED gauge tells you exactly where youre at: one bar for surfing the web, and three when youre pushing your GPUs hard.

The front panel also has two USB 3.0 and two USB 2.0 ports, so device management is easy.

Smart storage configuration

Modular hard drive cages and space-saving side-mounted SSD bays make the most of interior volume. You can remove the cages you don’t need, and your solid-state storage tucks out of sight and out of the airflow path.


Contents and Specifications

Package contents

  • Graphite Series 780T Full Tower PC Case
  • Accessory and screw kit
  • Quick Start Guide

Compatibility

  • Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX motherboards


Technical specifications

  • Maximum GPU Length: 355mm
  • Maximum CPU Cooler Height: 200mm
  • Maximum PSU Length: 260mm
  • Radiator Mount Locations:
  • Front: 360mm or 280mm
  • Top: 360mm or 280mmBottom: 240mm
  • Rear: 140mm


Fan Mount Locations:

  • Front: 3 x 120mm or 2 x 140mm
  • Top: 3 x120mm or 2 x 140mm
  • Bottom: 2 x 120mm (HDD Cage Removed)
  • Rear: 1 x 120/140mm

Specifications

  • Warranty: Two years
  • Weight: 11.3kg
  • Color: Black
  • Case Form Factor: Full-Tower
  • Dimensions: 637mm x 288mm x 602mm
  • Case Motherboard Support: Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX
  • Maximum GPU Length: 355mm
  • Maximum CPU Cooler Height: 200mm
  • Maximum PSU Length: 260mm
  • Case Expansion Slots: 9
  • Case Drive Bays: (x2) 5.25in (x3) 2.5in (x6) Combo 3.5in/2.5in
  • Case Material: Steel
  • Case Power Supply: ATX (not included)

External Connections:

  • (x2) USB 2.0
  • (x2) USB 3.0
  • (x1) Fan Controller
  • (x1) Headphone Port
  • (x1) Microphone Port

Fan Mount Locations

  • Front: (x3) 120mm or (x2) 140mm
  • Top: (x3) 120mm or (x2) 140mm
  • Rear: (x1) 120/140mm
  • Bottom: (x2) 120mm

Fans Included

  • Front: (x2) 140mm
  • Rear: (x1) 140mm

Radiator Mount Locations

  • Front: 240/280/360mm
  • Top: 240/280/360mm
  • Rear: 120/140mm
  • Bottom: 240mm

Compatible Corsair Liquid Coolers

  • H55, H60, H75, H80i, H90, H100i, H105, H110

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Corsair) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
