ToughArmor MB996SP-6SB 6x2.5" SATA HDD Hot Swap Mobile Rack


MB996SP-6SB

Overview

The 5.25 device bay has been a long standard in computer history. It started from the 90s legacy industrial PC cases all the way to todays Micro ATX cases. The 5.25 bay has been widely used for optical drives such as DVD and Blue-ray, or with even a single 3.5 hard drive with mobile rack. However, it is almost impossible to use a single 5.25 bay to create complex RAID storage until the MB996SP-6SB Full Metal 6 x 2.5 SATA Hard Drive & SSD Backplane. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.

High Capacity RAID Storage in Limited Space

Utilizing the standard 5.25” bay form factor, the compact design allows the enclosure to be used in various applications, catering to a wide audience. The MB996SP-6SB excels for use in advanced RAID applications such as building dual RAID 5 arrays or high performance 4 drives in RAID 0 plus RAID 1 array for back up, all in a single 5.25” device bay. The MB996SP-6SB is extremely useful for powerful small servers, gaming rigs, home servers or HTPC’s due to its high capacity and space saving design. It is also perfect for users who needs non-RAID JBOD storage and save different contents in different drive locations. It supports wide-range of applications which is the true value of the MB996SP-6SB.


Rock Solid Construction

Making sure your drives or expensive SSDs are in good hands and last as much as possible is carefully considered to any build and design. The MB996SP-6SB is capable of holding up in the various environments, with the heavy duty full metal construction in the entirety of the body and its smaller components. The ToughArmor's full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to already comply with flammability requirements.

The metal material used grants heat dissipation transfer from the hard drives to the backplane cage. Lastly, Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD’s used, dramatically improving reliability.


Absolute Control of your 2.5” hard drive or SSD

Bringing more utility your hard drives or SSDs, LED’s are installed into the front of the mobile rack to provide individual drive status information at all times. Active Power Technology (APT) allows each LED and the cooling fan to be active only when a hard drive is inserted into the same bay of the enclosure.

A 40mm cooling fan is placed directly at the center of the rear panel, providing equivalent airflow throughout the entire cage. Depending on your needs, you may need the fan to be at a higher speed, or completely off for silent operation, and so a 3-Mode Fan Speed Control has been added to flexible in various situations.



Using the EZ Slide Micro trays makes drive interchangeability and maintenance completely hassle free. For drive security, the Eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. The trays are also designed to accommodate 7mm to 9.5mm height hard drive and SSD, creating a 2.5" hot swap bay for any standard SATA hard drives and SSDs.


Interchangeable hard drive tray with:

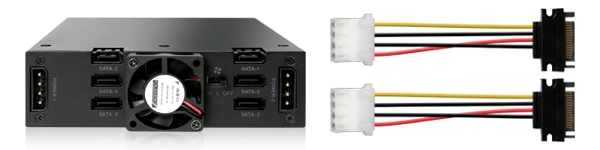

With various systems to accommodate, dual 4-pin to 15-pin power adapters are included to fully accommodate all users.


Drive Tray


EZ Slide Micro Tray MB992TRAY-B DriveTray for ToughArmor MB992, MB996 Series

Key Features

  • Heavy duty full metal construction with commercially designed for: Medical & Military systems
  • Media servers, and IPCs, approved & used by Tier 1 companies.
  • Perfect for rugged applications and complies to flammability requirements.
  • Fits 6 x 7mm to 9.5mm 2.5” SATA hard drives or SSD’s in a single 5.25” bay for high performance
  • RAID applications.
  • Full Metal construction with aluminum body, to protect your drives.
  • Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
  • Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.
  • 3-Mode Fan Speed Control - adjust cooling settings (High, Low, or Off) for your specific needs.
  • Eagle-hook lock system keeps drives secured within the enclosure.
  • Switch between 4-pin and 15-pin power connection with included adapter.
  • Removable tray system for easy maintenance.
  • Supports SATA 6Gbps and hot swap.


3 Years Warranty

Specifications:

ICY DOCK ToughArmor MB996SP-6SB 6 x 2.5 SATA 6Gbps HDD / SSD Mobile Rack / Cage in 1 x 5.25 bay

Model Number :
MB996SP-6SB
Color :
Matt Black
Host Interface :
6 x 7pin SATA
Drive Fit :
6 x 2.5" SATA I / II / III SSD or HDD (9.5mm thickness)
Device Fit :
Single 5.25" half height device bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input :
2 x 4pin Molex power port or 2 x 15pin SATA power port
(w/ included 4 to 15pin adapter cables)
Insert& Extract connection Via :
Direct SATA hard drive connection
Structure :
Aluminum & SECC
Drive Cooling :
40mm rear cooling fan with fan switch (High/ Low/ Off)
Metal heat dispersion
Power Indicator :
Solid Green LED
HDD Access Indicator :
Flashing Amber LED
Dimension (L x W x H) :
5.84" x 5.75" x 1.63"
Weight :
1.77 lbs
