All stock codes associated to this product
CLF022PL14REA, CL-F022-PL14RE-A
The Thermaltake Luna 14 LED Red provides an efficient and quiet cooling solution inside the chassis. An anti-vibration mounting system strengthens stability during operation. Balanced nine-blade fan design ensures optimal airflow. Long-life sleeve bearings for silent operation guarantee ultra-low noise. Available in three colors (red, white and White) to add style to your PC case.

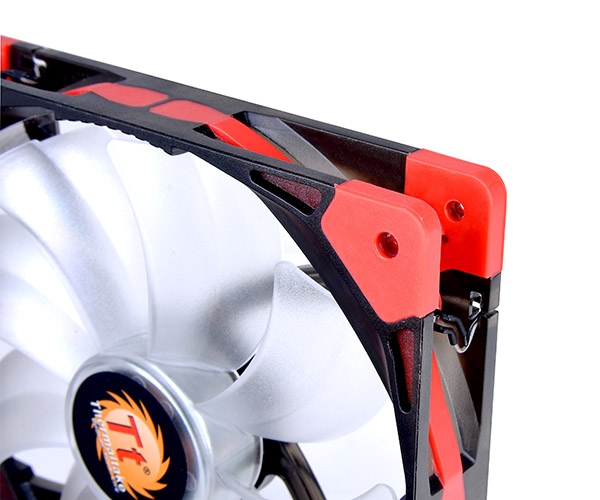

Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners and the frame.
Long-life Bearing
With better stiffness, long-life sleeve bearings are suitable for moderate- to high-speed applications, offering enhanced reliability and extended life spans.
Higher Air Inflow, Less Noise
Enlarged fan frame opening enhances inflow with a fan speed of up to 1000 rpm. The fan delivers exceptional airflow at a low noise level of 21.8 dBA.

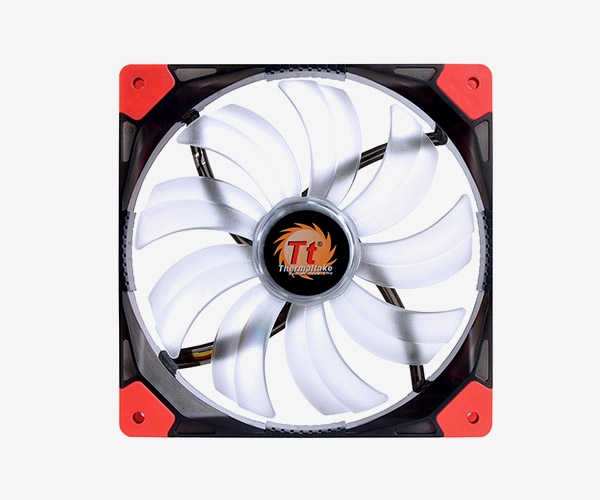

Unique Fan Blade Design
Double-curved fan blades provide higher air pressure but generate less noise. Unlike the Luna 12, which has only seven fan blades, the Luna 14 has a nine-blade fan design.

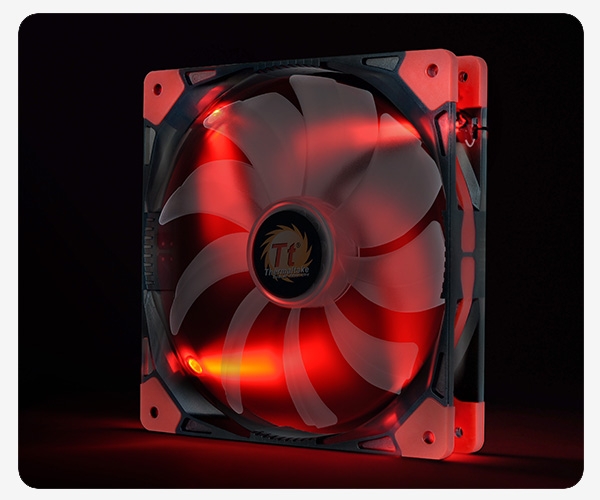

3 Colors of Luminous LED
The Luna 14 LED series is available in three vivid colors: red, white and White. Embellish the chassis in your own way.
Specifications
| P/N |
CL-F022-PL14RE-A |
| Fan Dimension |
140 x 140 x 25 mm |
| Started Voltage |
9 V |
| Rated Voltage |
12 V |
| Rated Current |
0.21 A |
| Power Input |
2.52 W |
| Fan Speed |
1000 R.P.M |
| Max. Air Pressure |
0.87 mm-H2O |
| Max. Air Flow |
60.55 CFM |
| Noise |
21.8 dB-A |
| Bearing Type |
Sleeve |
| Life Expectation |
40,000 hrs,25 |
| Connector |
3 PIN |
| Weight |
150 g |
