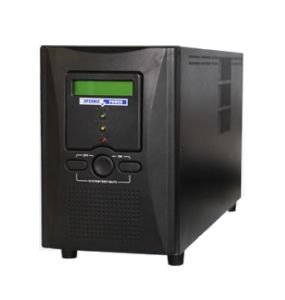

UPSONIC ESAT20 Series 2 - 2000VA, RS232, SNMP, USB - 1250W

IMG 1 of 1
No Longer Available
Part Number:
372833
(?) Brand:
UPSONIC
Manuf No:
ESAT20
Shipping Weight:
22.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
29/8/2014
Details Files Finance Images & Video
All stock codes associated to this product
ESAT20

Upsonic Series 2 - 2000VA Line Interactive UPS with True SineWave Output & AVR


Description


ENERGY SAVING - ESAT SERIES II (ALTO)

Energy Saving Technology 2000VA


  • Pure sine wave
Output on Battery
  • Intelligent Charging controlled
  • 98% Efficiency in ECO Mode
  • Range 1.0KVA - 7.5KVA
  • Intelligent interactive LCD control panel
  • Multiple interfaces options: RS232/RS485/MODBUS/USB/SNMP
  • Compact design
Standard and long backup time
  • Cold start
Starts on battery, no mains power required
  • Protection against overload, overheating, surges, spikes, short circuit, over charging
  • Ability to Integrate with Genset
  • Easy battery replacement

Due to rising electricity costs, Energy Saving has become one of today's most important issues. It is a trend to operate ECO - Economical mode on big capacity on-line double conversion UPS. This seems to virtually turn UPS back to Stand by (0ff-line) era.

Our new ES pure sine wave line-interactive UPS are based on Energy Saving technology. In addition to providing high quality Sine Wave power and low Harmonic Distortion to support both Linear and Non-linear loads the ES series has a built in wide range AVR (automatic voltage regulator) on Bypass circuit which stabilises power and makes the ES series operate even more effectively and safely than an On-line double conversion UPS operated under ECO mode.

ES pure sine wave line-interactive UPSvsOn-line double conversion UPS operated under ECO mode

  • Wider input range:More than 10% wider input main power voltage range than an on-line UPS.
  • High overall efficiency:Consumes much less power than an on-line double conversion UPS during bypass mode operation.
  • Better stability:Concise designed compact unit gives better stability.
  • Economically smaller:Smaller footprint. Less expense for users.

Specifications

Line Interactive Sine wave output Tower UPS
Model Energy Saver Series (ES xxx) ESAT-1000 ESAT-1500 ESAT-2000
Capacity Input VA/Watt 1000/625 1500/938 2000/1250
Nominal Voltage 230 VAC
Wave Form Pure Sine Wave
Voltage Range 170 VAC ~ 300 VAC
Frequency 45Hz - 70Hz auto sensing
Output - AVR Settings Boost Transfer 208VAC 2%
Boost Return 218VAC 2%
Buck Transfer 252VAC 2%
Buck Return 242VAC 2%
Low Voltage Transfer to Battery 190VAC 2%
Low Voltage Return 200VAC 2%
High Voltage Transfer to Battery 286VAC 2%
High Voltage Return 276VAC 2%
Efficiency >80%
Overload Protection Line Mode >110% then buzzer alarm and amber LED continuously blinking
Battery Mode 110% ~ 150% for 30 seconds: >150% for 200ms, then UPS Shuts Down
Short Circuit Protection Line Mode Circuit Breaker
Battery Mode Electronic Circuit
Cold Start DC Start Yes
Transfer Time Typical <4ms
Battery Voltages   24 VDC 36 VDC 36 VDC
Battery Amp 7.2 Ah 7.2 Ah 9 Ah
LCD Display   UPS status; I/P & O/P Voltage frequency; Load Level;
Battery voltage & Level internal temperature Normal Green
Audible alarm Battery Mode Beeping every 4 seconds
  Low Battery Beeping every 1 second
  UPS Fault Continuous Beep
  Overload Beeping 2 x every second
Communications Interface   RS232; SNMP; USB; Dry Contact & AS 400 Options.
Dimensions W x H x D in mm) 145/210/380 145/210/445 145/210/445
Net Weight Kg 16.5 17.5 22.5
Environment Operating Environment 0 - 40 Deg Relative Humidity 0 - 95% Non Condensing
Noise Level Less than 55dBA (@1.0 Meter)
Outlets / Connections   3 IEC 3 IEC 6 IEC

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
