All stock codes associated to this product
8WDCR22, 8WD-CR22

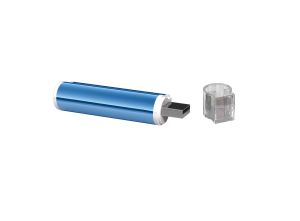

USB3.0 Mini Card Reader - Blue
Description
Want to copy data from your memory cards to your notebook or PC but don't have a built-in card reader? Then a USB card reader is your solution!
It allows you to read your memory cards directly into your desktop PC or notebook via the USB port.
The USB 3.0 Card Reader works with 63 types of memory cards and thus offers a complete solution for reading from and writing to all your memory cards.
The USB 3.0 standard is 10 times faster than USB 2.0 and provides transfer speed of up to 5 Gbps. Moreover, with USB 3.0 you also have more bandwidth which means you can receive and transmit data at the same time.
This makes this USB 3.0 card reader ideal for copying large files such as HD movies or music.
Features:
Speed: 5GB( USB3.0/HS),480Mbps( USB2.0/HS),12Mbps (USB 1.1 /FS)
Cable: No extra cable needed
Size: 77*18*16 mm
Weight: 14g
OS Support: Compatible with Windows XP,SP2,Vista,MAC OS,windows 7
Compatibility list supported Card types
SD / MINI SD / HS MINI SD / MINI-SD Ultra II / MINI-SD Ultra II Mobile / EXTREME SD / EXTREME III SD/ ULTRA II SD / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / SDHC / Micro SD / Micro SD HC / Micro-SD Ultra II / MMC / MMC-I / MMC-II / MMC Dual Voltage / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / DV-RS MMC / MMC MOBILE / MMC Micro / SDXC( Compatible ) MS / MS PRO / MS PRO ULTRA II / MS DUO / MS PRO DUO /MS PRO DUO ULTRA II / MS MG PRO / MS MG / MS MG DUO / MS MG PRO DUO / EXTREME MS PRO / EXTREME III MS PRO / ULTRA II MS PRO / HS MS MG PRO / HS MS MG PRO DUO / HS MS PRO / HS MS PRO DUO / MS ROM / MS SELECT / MS Pro HG / MS Pro HG Duo T-Flash/Micro-SD/ Micro SD HC / T-Flash HC M2
Specifications
| MODEL |
8WD-CR22 |
| USB Version |
USB3.0,USB2.0/1.1 |
| Name |
USB3.0 Card Reader |
| Size |
77X18X16mm |
| Weight |
14g |
| Case Materials |
ABS+Aluminum |
| Cable |
None |
| PCB |
Craft: FR4 Double-side line dimension board |
| Thickness of board:1.00MM |
| Surface: OSP green oil |
| Package |
blister card + blister |
| Chipset type |
GL3221(48PIN) |
| Card slots Qty |
Three |
| Power |
USB Power ,Adaptor |
| Working voltage |
5V |
| Working current |
<100mA |
| LED indicator |
One LED indicator |
| Card slot Insert and Draw Test |
5000 times |
| Cable Swaying Test |
Load:100 gf speed |
| Swaying Angle: 60degeree 30 times/minute |
| Times3000 |
| 4.Safety Test: |
| Working Temperature |
0C~50C |
| Storage Temperature |
-20C~60C |
| Compatibility System |
WIN98/ME/2000/XP/WIN7 32bit/64bit/VISTA/MAC 10.0 above (for WIN98/2000,MAC9.2.2 below drive is needed ) |
| Support USB Mainboard |
| CE/FCC Test |
CE,FCC,UL According to customer's requirement |
| Dropping Test |
Working normally after dropping from 75cm height(Yes) |
| Vibration Test Requirement under Working State |
5 to 22 Hz ,30 min,0.20 Gs - XYZ axis |
| 22 to 350 Hz ,30min,0.50 Gs - XYZ axis |
| 350 to 500,30min ,0.25 Gs - XYZ axis |
| All functions OK after vibration(Yes) |
| Vibration Test Requirement under off-Working State |
5 to 22 Hz ,30 min,0.20 Gs - XYZ axis |
| 22 to 350 Hz ,30min,5.00 Gs - XYZ axis |
| 350 to 500,30min ,1.00 Gs - XYZ axis |
| All functions OK after vibration(Yes) |
