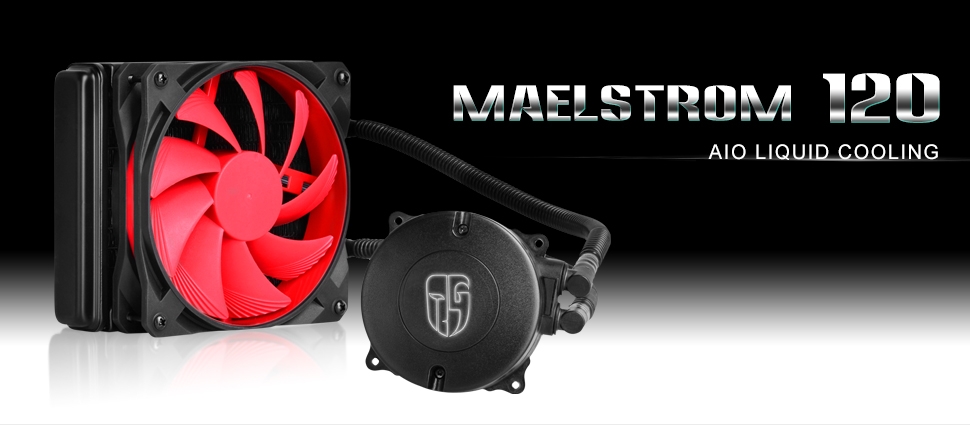

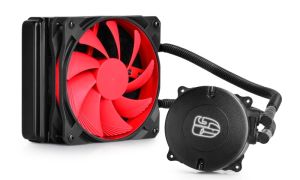

Deepcool Maelstrom 120 Enlcosed Liquid Cooling System
  • 120x120x25mm Fan, Fluid Dynamic Bearing, 600-2200RPM, 91.12CFM, 17.6-39.3dBA
  • Supports Intel LGA2011,1155,1150, AMD FM2+,FM2,AM3

IMG 1 of 8
No Longer Available
Part Number:
373934
(?) Brand:
Deepcool
Manuf No:
DP-GS-H12RL-MS120
DPGSH12RLMS120
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
24/9/2014
Details Files Images & Video
All stock codes associated to this product
DPGSH12RLMS120, DP-GS-H12RL-MS120


Design


Features

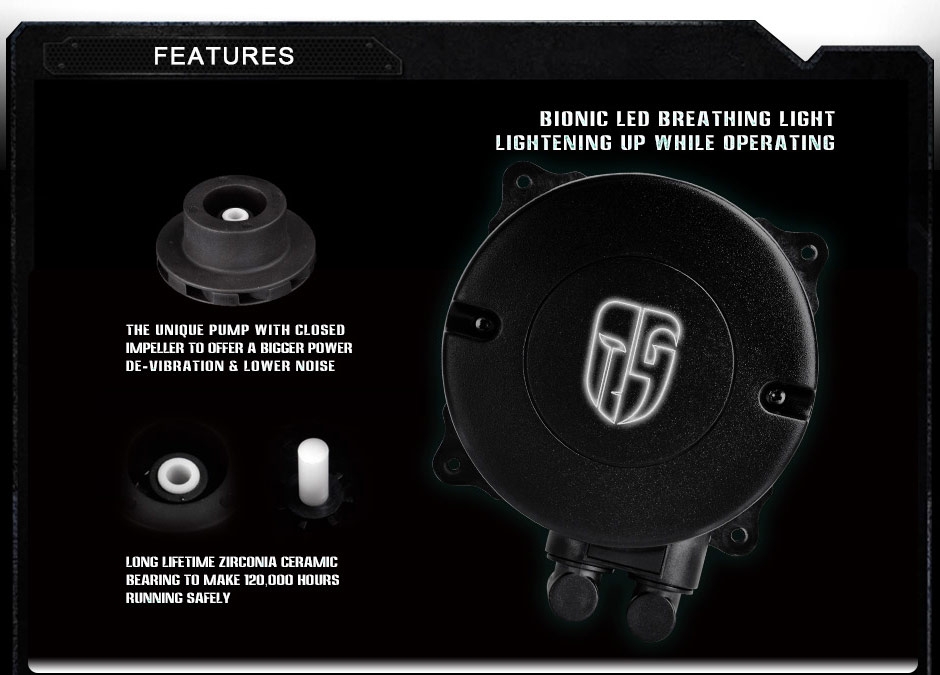

The unique pump with closed impeller to offer a bigger power, de-vibration & lower noise
Long lifetime zirconia ceramic bearing to make 120,000 hours running safely

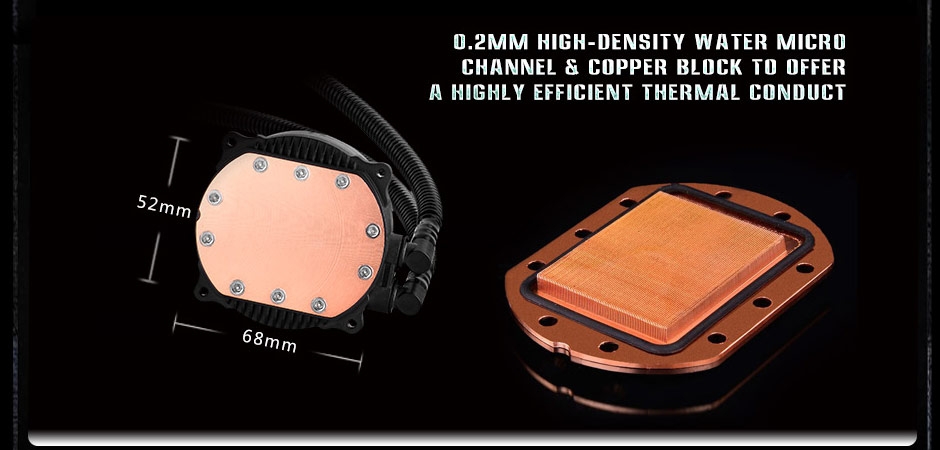

0.2mm high-density water micro channel & copper block to offer a highly efficient thermal conduct

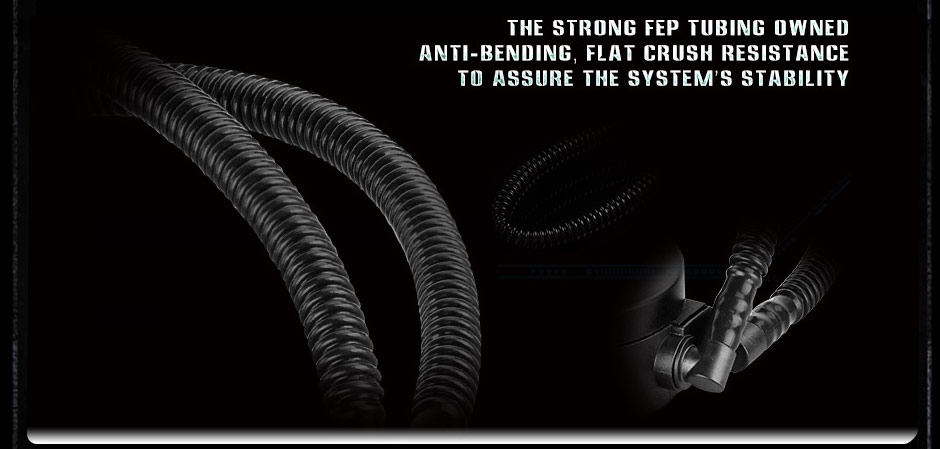

The strong FEP tubing owned anti-bending, flat crush resistance to assure the systems stability

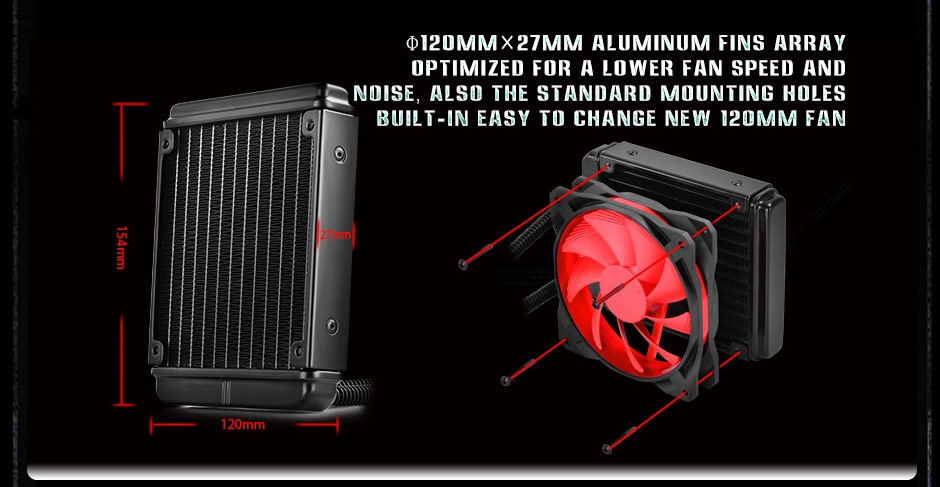

120 mm27mm Aluminum fins design optimized for a lower fan speed and noise, also the standard mounting holes built-in easy to change new 120mm fan

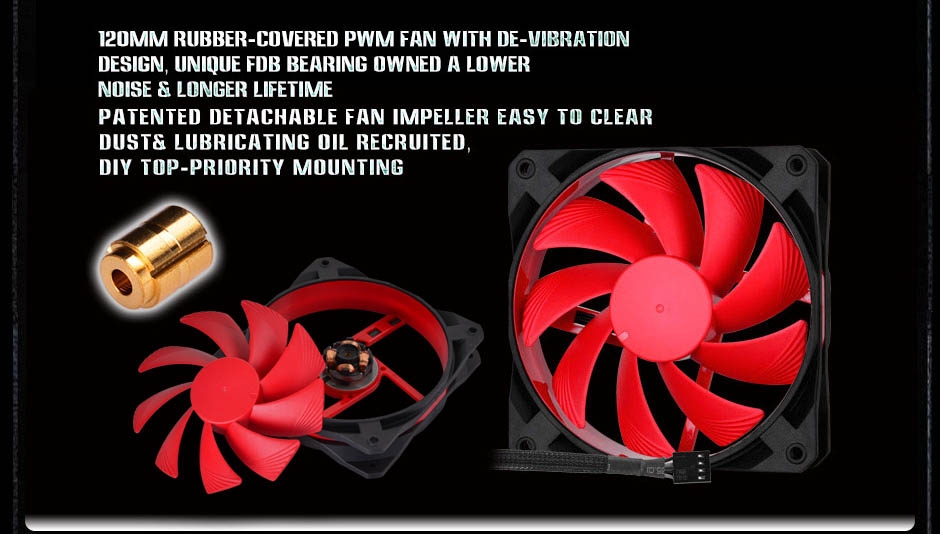

120mm rubber-covered PWM fan with de-vibration design, unique FDB bearing owned a lower noise & longer lifetime
Patented detachable fan impeller easy to clear dust& lubricating oil recruited, DIY top -priority mounting

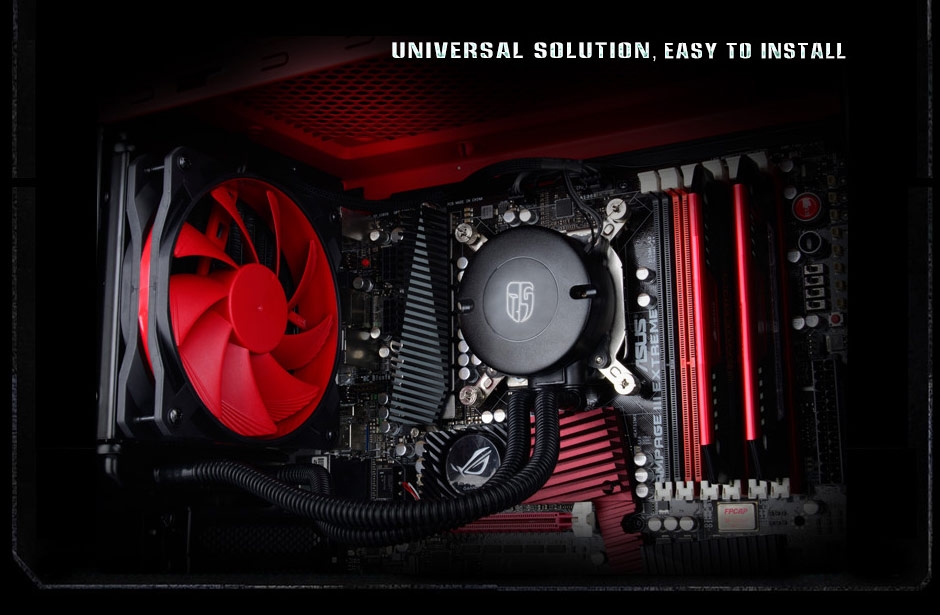

Universal solution, easy to install
Bionic LED breathing light lightening up while operating

Specifications

Application For
Intel Socket 150W

LGA2011/LGA1366/LGA1156/LGA1155/LGA1150

High End Desktop i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G		 AMD Socket 140W

FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

Technical Spec

Main system Dimensions 70X85.6X31.5mm
Radiator Dimensions 154X120X27mm
Radiator Material Aluminum
Fan Dimensions 120X120X25mm
Fan Speed 600200-220010%RPM
Fan Air Flow 91.12CFM (MAX)
Fan Air Pressure 3.71mmH2O(MAX)
Fan Life Expectancy 100000 hours
Fan Noise Level 17.639.3dB(A)
Fan Bearing Type FDBFluid Dynamic Bearing
Fan Connector 4Pin
Fan Rated Voltage 12VDC
Fan Rated Current 0.2410%A(MAX)
Fan Power Consumption 2.88W
Pump Life Expectancy 120000 hours
Pump Connector 3Pin
Pump Operating Voltage 6~24VDC
Pump Rated Voltage 12VDC
PumpSpeed 280010%RPM
Pump Load Current 0.310%A(MAX)
Pump Power Consumption 3.6W
