All stock codes associated to this product
JG926A, 888182477564

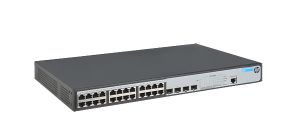

HP 1920-24G-PoE+ (370W) Switch
(JG926A)
The HP 1920 Switch Series, part of the HP OfficeConnect portfolio, is designed for smaller organizations dealing with bandwidth-demanding applications. The switches are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management.
The HP 1920 are advanced smart-managed fixed configuration Gigabit switches that build on the marketing-leading price/performance of the HP 1910 Switch Series. The series features IPv6 support and advanced silicon technology.
Features
Simplifies Network Deployment and Management for Small Organizations
The HP 1920 Switch Series features easy-to-use, out of the box, plug-and-play deployment.
The series offers a complete portfolio of choices for increased flexibility. It consists of eight rack-mountable models with internal power supplies including four non-Power over Ethernet (PoE) models: 8G-, 16G-, 24G- and 48G- port; four PoE+ models: (2) 8G-, and (2) 24G-port.
These smart-managed switches use an intuitive Web management interface, based on our industry-leading HP 1910 Switch Series, to simplify deployment and management while offering you greater granularity of control of key features.
Keeps Your Business up and Running and Protected
The HP 1920 Switch Series is built on the market-leading, proven reliability of the HP 1910 Switch Series with advanced silicon technology for low power consumption, an enhanced feature set for more robust operation, new models and options.
Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
The switch series is covered by the HP Lifetime Warranty with next day advance hardware placement, 24x7 phone support for 3 years and business day phone and email support for as long as you own the product.
Delivers Improved Performance, While Lowering the Total Cost of Ownership
The HP 1920 Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, IPv6 support, rate limiting, link aggregation and IGMP.
Smaller enclosures facilitate flexible deployment.
The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
Advanced silicon technology, green features like Port shutdown and EEE compliance for greater energy-efficiency and the Lifetime Warranty significantly reduce TCO.
Specifications
Ports
-
- 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
- 4 SFP 1000 Mbps ports
- Supports a maximum of 24 autosensing 10/100/1000 ports plus 4 1000BASE-X SFP ports, or a combination
- Included
Memory and processor
MIPS @ 500 MHz; 32 MB flash; packet buffer size: 4.1 Mb; 128 MB SDRAM
Latency
-
- 100 Mb Latency: < 5 s
- 1000 Mb Latency: < 5 s
Throughput
41.7 Mpps
Routing/switching capacity
56 Gbps
PoE capability
-
Management features
-
- IMC - Intelligent Management Center
- limited command-line interface
- Web browser
- SNMP Manager
- IEEE 802.3 Ethernet MIB
Dimensions and weight
Minimum dimensions (W x D x H)
44 x 26 x 4.4 cm
Weight
3.4 kg
What's included
Differentiator
24-port gigabit advanced smart managed PoE+ switch with a 370W PoE+ power budget and 4 GbE SFP ports
What's in the box
-
- HP 1920-24G-PoE+ (370W) Switch, power cord, rack-mount kit, console cable, documentation set
Warranty
Lifetime warranty: for as long as you own the product, with next-business-day advance replacement (available in most countries);Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available
