Design
Description

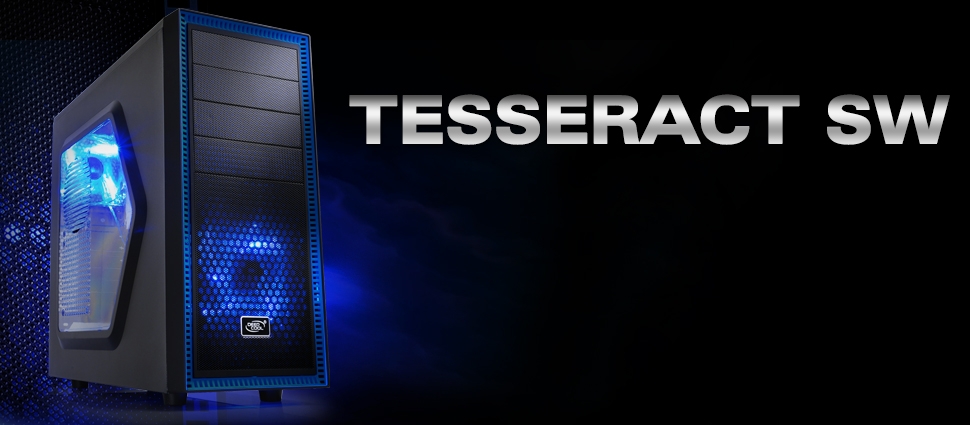

Tesseract series computer case comes with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. Up to six fan installation, 310 mm graphic card space and various DIY features, what else could you possibly ask for?
Innovative Design for DIY Usage
- ODD installation tool-free design.
- 2.5HDD/SDD and 3.5 HDD installation tool-free design
- Pre-installed two LED fan on the front and rear.
- High VGA card and CPU cooler installation compatibility.

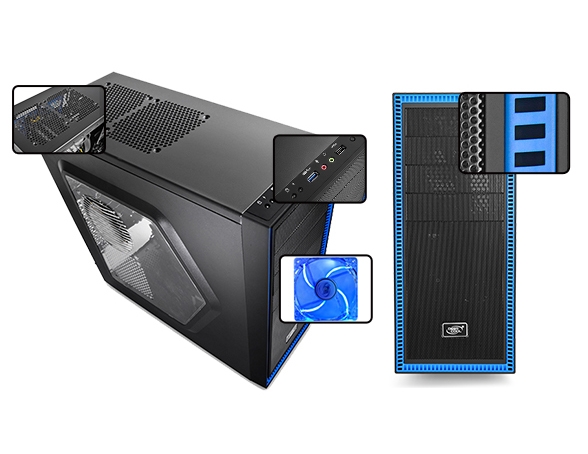

Top Panel Refinement
- Dust-filter in the top panel.
- USB ports, plugholes and switches on top panel for easier operation.
- Full dust-filter in the interior panel.
- Patented air intake channel on the perimeter of the front panel.
- High-quality rubber coating.
- Pre-installed Blue LED fan in the front panel.
PSU Protective Approaches

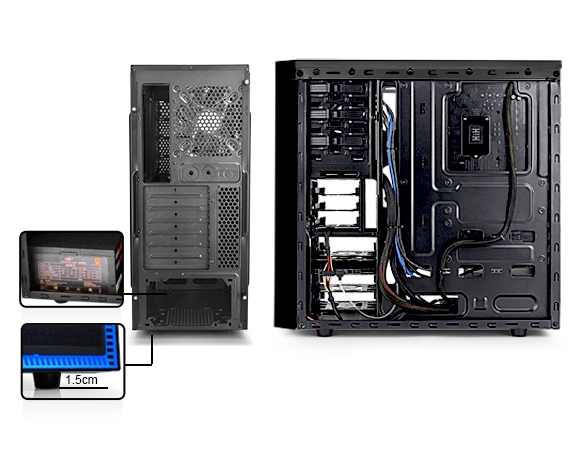

- Bottom located PSU for better space management.
- Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake.
Backplate Cable Installation
- Multiple channels for supreme cable management.
Features
- Side window makes appearance more fashionable and shining
- one USB 3.0 + one USB 2.0 Ports
- Fully black painted interior
- Pre-installed 2 Blue LED fans for maximum cooling
- Patented air intake channel on the perimeter of the front panel
- Fully metal mesh design for the most cooling

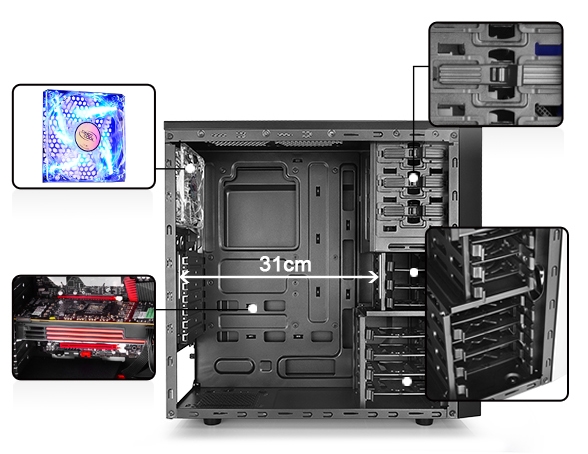

- Enough room for long VGA card installation
- Rail slide HDD design for HDD easy installation
- Tool free installation design for ODD/HDD
- 2 water cooling grommets on the rear
- Wide CPU cut out for CPU cooler mounting
- Bottom loaded PSU for effective cooling and large inner space
- Support cable management
Specifications
Technical Spec
* Manufacturers name: Tesseract SW.
* Market orientation: System builder & gaming.
* Case type: Mid tower.
* External colour: Charcoal.
* Internal powder coating colour: Charcoal.
* Case dimensions (LxWxH): 472mm x 210mm x 454mm.
* Material: Steel & plastic.
* PSU mounting position: Bottom rear.
* 5.25" drive bays (external): 2.
* 3.5" drive bays (external): 0.
* 3.5" drive bays (internal): 4.
* 2.5" drive bays (internal): 3.
* Compatible motherboard sizes: Standard, Micro & Mini ATX + Mini ITX.
* Rear expansion slots: 7.
* Rear expansion slot cover type: Standard.
* Case cable management or ducting system: Yes.
* Liquid cooling tubing pass thru holes: 2.
* Liquid cooling internal radiator mounts: 0.
* Included front panel cooling fans: 0.
* Included rear panel cooling fans: 1x 120mm.
* Included top panel cooling fans: 0.
* Included side panel cooling fans: 0.
* Total available case fan mounting positions: 6.
* Included AC97 I/O ports: 0.
* Included HD Audio I/O ports: 1.
* Included USB2 I/O ports: 1.
* Included USB3 I/O ports: 1.
* Included e-SATA I/O ports: 0.
* Included IEEE1394 FireWire I/O ports: 0.
* Included I/O port location: Top.
