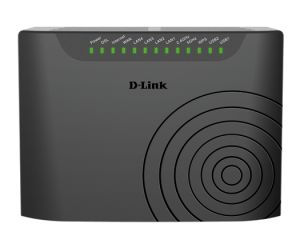

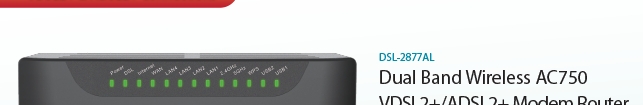

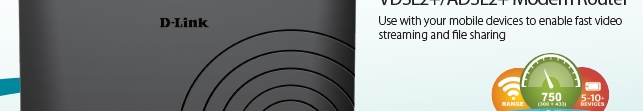

Dual Band Wireless AC750 VDSL2+/ADSL2+ Modem Router


DSL-2877AL

  • Integrated VDSL2+/ADSL2+ Modem
  • Superior Wi-Fi Performance
    AC750 speed for a really fast home network (N300 + AC433)
  • Share Your Stuff
    Stream and share your pictures, videos, music and more
  • Easy Setup
    Get online in minutes with our intuitive Setup Wizard
  • Remote Access & Management
    Manage your network from your smart phone or tablet anytime, anywhere
  • NBN/UFB Ready with Dedicated Gigabit WAN Port
    VLAN Tagging Support

Overview



1Computer must adhere to Microsofts recommended System Requirements. 2This unit complies with xDSL standards worldwide. xDSL speeds may vary depending on the individual contract with an Internet Service Provider and the distance of the unit from the ISPs DSLAM. 3Maximum wireless signal rate derived from IEEE Standard 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. 4Ethernet WAN port for use with an Ethernet or NBN/UFB Service, this also allows you to set a VLAN ID for use with UFB connections. 5For a list of compatible devices please refer to compatibility list. 624/7 Technical Support available only in Australia and New Zealand. 7Up to 3 Years Limited Warranty. Register your product to receive your 3rd Year Warranty via www.dlink.com.au/reg. Available only in Australia and New Zealand.

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details. Latest documentation is available at http://support.dlink.com.au.

2014 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, and the D-Link RoHS logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.

Specifications:

Standards
2.4GHz

  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b

5GHz

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11a

LAN/WAN

  • IEEE 802.3u
  • IEEE 802.3a

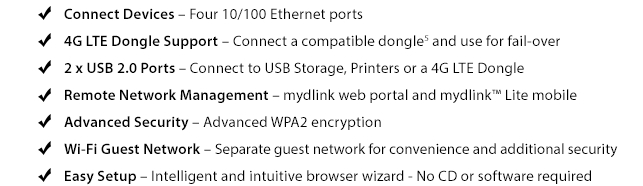

Physical Interfaces

  • VDSL/ADSL WAN Port
  • Gigabit Ethernet WAN Port
  • 4 10/100 Ethernet Ports
  • USB 2.0 Ports
  • Reset Button

DSL Compliance
ADSL Standards

  • Multi-mode
  • Full-rate ANSI T1.413 Issue 2
  • ITU-T G.992.1 (G.dmt) Annex A/C/I
  • ITU-T G.992.2 (G.lite) Annex A/C
  • ITU-T G.994.1 (G.hs)

ADSL 2 Standards:

  • ITU-T G.992.3 (G.dmt.bis) Annex A/J/K/L/M

ADSL 2+ Standards:

  • ITU-T G.992.5 Annex A/L/M

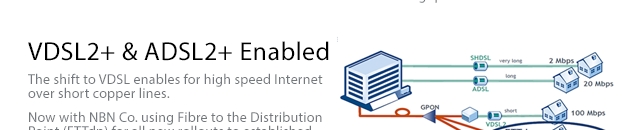

VDSL Standards:

  • ITU-T G.993.2 (VDSL2)
  • ITU-T G.993.1-2004 (VDSL)
  • ANSI T 1.424-2004
  • ETSI TS 101 270-1 and TS 101 270-2
  • VDSL2 Bandplan: plan 997, plan 998
  • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a

ATM/PPP Support

  • Multiprotocol over AAL5 (RFC 1483/2684)
  • Bridged and routed Ethernet encapsulation
  • LLC encapsulation
  • VC-based multiplexing
  • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
  • ATM Cell Format ITU-T Rec. I.361
  • ATM Adaptation Layer Type 5 (AAL5)
  • PPPoA (RFC2364)
  • PPPoE (RFC2516)
  • PPP Link Control Protocol (RFC 1661)
  • Internet Protocol Control Protocol (RFC 1332)
  • PPP Authentication Protocol (RFC 1334)
  • PPP Challenge Handshake Authentication Protocol (RFC 1994)
  • Microsoft PPP CHAP extensions (RFC 2433)

WLAN Specifications

  • 802.11 n/g/b, up to 300 Mbps
  • 802.11 ac/a, up to 433 Mbps
  • Internal Antennas
  • Wi-Fi Protected Setup (WPS)
  • Multiple SSIDs
  • Automatic rate adapting
  • WAN scheduling
  • Auto channel selection
  • WMM support
  • 64-bit & 128-bit WEP
  • WPA-PSK & WPA2-PSK
  • MAC address filtering

Network Services

  • IPv4
  • DHCP server/client/relay
  • DNS relay
  • Dynamic DNS (DDNS)
  • Routing Information Protocol (RIP) v1/v2
  • Internet Control Message Protocol (ICMP)
  • Virtual server (Port forwarding)
  • Simple Network Time Protocol (SNTP)
  • 802.1d MAC Bridge (up to 256*8 MAC addresses)
  • IGMP proxy v1/v2
  • IGMP snooping v1/v2/v3

QoS

  • IPP/ToS
  • DSCP QoS in 4-priority queues
  • Application QoS in 4-priority queues
  • Strict priority
  • VLAN QoS in 4-priority queues
  • QoS remarking based on IPP/ToS, DSCP and 802.1p
  • TOS transparency through NAT
  • Mapping to queue according to DSCP bits and physical port
  • 802.1Q

NAT ALGs

  • PPTP
  • L2TP
  • FTP
  • RTSP (RealTime Streaming Protocol)
  • SIP v1/v2
  • IPsec

Universal Plug and Play Support

  • UPnP based auto-configuration
  • UPnP based port forwarding
  • UPnP IGD 1.0

Security
Attack Prevention

  • Port scanning & illegal packet attack
  • DoS Attack
  • SYN Flooding
  • Ping of Death
  • Teardrop
  • LAND attack
  • IP Spoofing
  • IP with zero length
  • Smurf Attack
  • TCP Null Scan
  • Stateful Packet Inspection (SPI)
  • Management Access Control for LAN/WAN sides
  • IP filtering
  • MAC filtering
  • URL filter
  • Demilitarized Zone (DMZ)

Device Management

  • Web configuration
  • Telnet management
  • Web UI/X-Modem/FTP/TFTP firmware upgrade
  • Diagnostic tools for DSL and IP Ping
  • One Touch Setup wizard

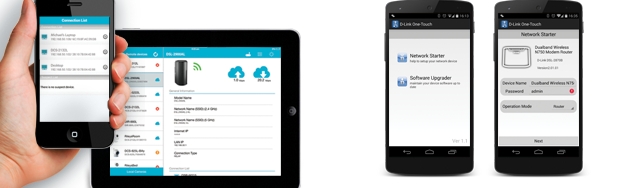

Mobile Apps

  • One-Touch Setup
  • mydlink Lite/Plus

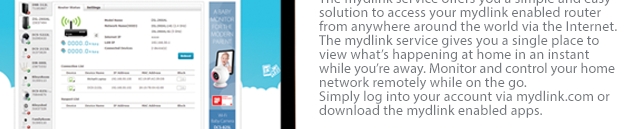

mydlink Features
Remote Management

  • View current upload/download bandwidth
  • View currently connected clients
  • View web browsing history per client
  • Block/unblock client network access
  • Manage Wi-Fi network details

Advanced Features

  • VPN pass-through
  • Guest Network Support
  • UPnP Support
  • VLAN Tagging (NBN/UFB)
  • Multiple PVCs (for use with IPTV)
  • Wi-Fi WMM Quality of Service
  • IPv6

Dimensions

  • 198 x 146 x 54 mm

Weight

  • 302 grams

Operating Temperature

  • 0 to 40 C

Operating Humidity

  • 5% to 95% non-condensing

Certifications

  • Wi-Fi Certified
  • CE/C-Tick
  • RCM
  • Wi-Fi Protected Setup (WPS)
