USB 3.0 BoostLinq - 33ft (10M)

GUE310

Description

USB Extender Cable

The IOGEAR USB 3.0 BoostLinq extension cable uses active electronics to amplify the USB signal and maintain USB 3.0 SuperSpeed data transfers over extended distance, with no loss of data integrity or signal quality. The cable has male and female USB type "A" connectors. The USB "A" connector is the rectangular shaped plug found on PC's, hubs, and many other host interfaces. BoostLinq extends from the USB host computer and provides another female "A" connector up to 33 feet away for all your USB needs.

It is compatible with both PC and Mac computers and is backwards compatible with USB 2.0 and 1.1 devices. It is ideal for applications that require distance between a user and the peripheral but still need the data transfer speeds of USB 3.0, such as webcams, hard drives, printers, smartboards, etc.

The IOGEAR USB 3.0 BoostLinq extension cable is Plug-and-Play, no additional drivers or complicated set up required. It also gives you the ability to daisy-chain a maximum of five cables together in order to reach up to a total of 165 feet of USB 3.0 SuperSpeed connection.

Features

  • Extend a USB 3.0 SuperSpeed device connection up to 33ft
  • Built-in booster chipset amplifies USB 3.0 signals for robust performance
  • USB 3.0 transfer rates of up to 5Gbps for th best data transmission
  • Up to 10x faster than USB 2.0
  • Plug & Play design-no drivers or power supply needed
  • Daisy chain up to 5 BoostLinqs to reach a maximum distance of 165ft*
  • Backwards compatible with USB 2.0 and 1.1 devices

Requires optional power supply

Warranty: 3-YEAR

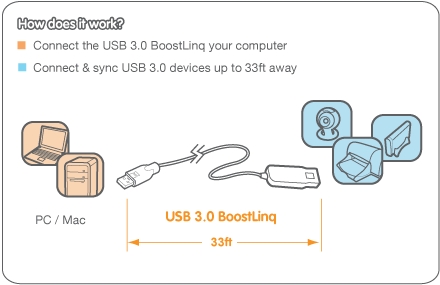

Function Diagram


Requirements

Hardware:

  • USB 3.0 port
  • USB 3.0 device

Operating System:

  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Mac OS X v10.3.9 and above

PC CompatibleMac OS compatible

Package Content

  • 1 x USB 3.0 BootLinq - 33ft (10m) cable
  • 1 x USB Type-A female to male adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card


Specifications

UPC: 881317511911

Function GUE310
Cable Length 33 feet
Computer Interface USB Type A
Daisy Chain Up to 5 level daisy chain
Device Connection USB Type A
Environment
Operation Temperature 32 to 122 degree Fahrenheit
Storage Temperature -40 to 131 degree Fahrenheit
USB Specification USB 3.0
Transfer Rate Up to 5Gps
LEDs
Link 1
Cable Type Shielded
Max Output Power 840mA @ 5VDC
Dimensions GUE310
Unit Dimensions
Width .87" (2.2 cm)
Height .5" (1.27 cm)
Length 33 ft (10 m)
Inner Pack
Width 8.3" (21.1 cm)
Height 8.4" (21.3 cm)
Depth 9.6" (24.4 cm)
Inner Pack Qty. 3
Unit Package Dimensions
Width 9.1" (23.1 cm)
Height 2.6" (6.6 cm)
Depth 7.9" (20 cm)
Master Carton
Width 10.2" (27.4 cm)
Height 9.9" (25.1 cm)
Depth 17.1" (2.1 cm)
Master Carton Qty. 12
Weight
Master Carton Wt. 13.9 lb (6.3 kg)
Inner Pack Wt. 6.35 lb (2.9 kg)
Unit Pack Wt. 2 lb (.9 kg)
Unit Wt. 1.75 lbs. (1.1 kg)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (IOGEAR) web site.
