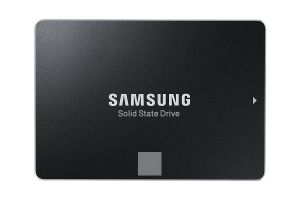

MZ-75E1T0


Features

What is 3D V-NAND and how does it differ from existing technology?

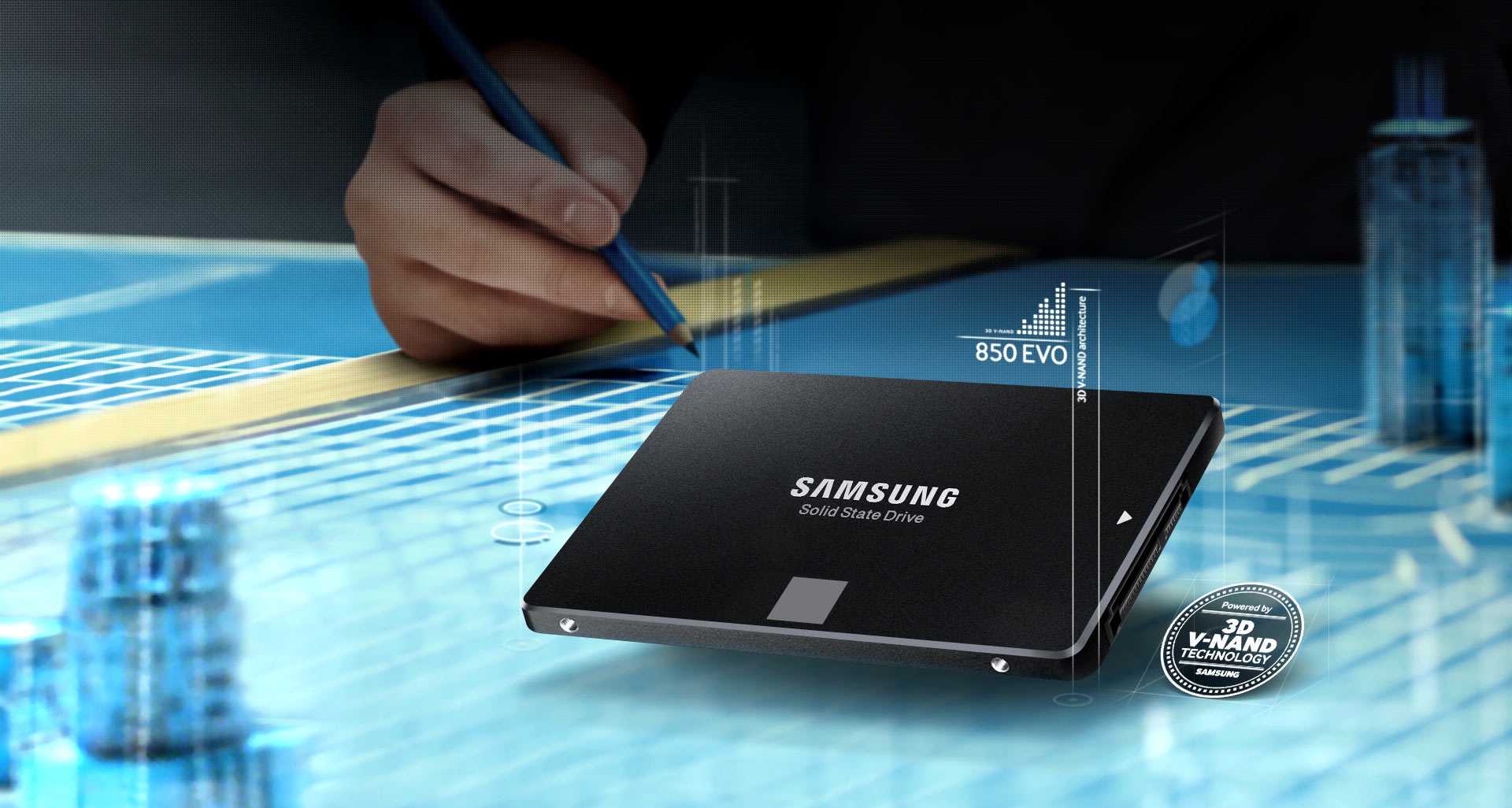

Samsungs unique and innovative 3D V-NAND flash memory architecture is a breakthrough in overcoming the density limitations, performance and endurance of todays conventional planar NAND architecture. 3D V-NAND is fabricated by stacking 32 cell layers vertically over one another rather than decreasing the cells dimensions and trying to fit itself onto a fixed horizontal space resulting in higher density and better performance utiliSing a smaller footprint.

What is 3D V-NAND and how does it differ from existing technology?

OptimiSe daily computing with TurboWrite technology for unrivalled read/write speeds

Achieve the ultimate read/write performance to maximise your everyday computing experience with Samsungs TurboWrite technology. You not only obtain more than a 10% better user experience than 840 EVO* but up to 1.9x faster random write speeds for 120/250 GB models** as well. The 850EVO delivers the top of its class performance in sequential read (540 MB/s) and write (520 MB/s) speeds. Plus, you also gain optimised random performance in all QD for client PC usage scenario. * PCmark7 (250 GB ): 6,700 (840 EVO) > 7,600 (850 EVO) ** Random Write (QD32, 120 GB): 36,000 IOPS (840 EVO) > 88,000 IOPS (850 EVO)

OptimiSe daily computing with TurboWrite technology for unrivalled read/write speeds

Get into the fast lane with the improved RAPID mode

Samsungs Magician software which provides Rapid Mode for 2x faster processing data speeds* on a system level by utilising unused PC memory (DRAM) as cache storage. The newest Magician increased the maximum memory usage in Rapid mode from 1 GB, in the previous 840 EVO version, to up to 4 GB with the 850 EVO when implementing 16 GB of DRAM. You also get a 2x performance* boost in all random Queue depth. * PCMARK7 RAW (250 GB): 7,500 > 15,000 (Rapid mode)

Get into the fast lane with the improved RAPID mode

Guaranteed endurance and reliability bolstered by 3D V-NAND technology

The 850 EVO delivers guaranteed endurance and reliability by doubling the T BW* compared to the previous generation 840 EVO** backed by an industry leading 5 year warranty. The 850 EVO through minimised performance degradation allows sustained performance improvements of up to 30% over the 840 EVO proving to be one of the most dependable storage devices***. * TBW: Total Bytes Written ** TBW: 43 (840 EVO) > 75 (850 EVO 120/250 GB),150 (850 EVO 500/1 TB) *** Sustained Performance (250 GB): 3300 IOPS (840 EVO) > 6500 IOPS (850 EVO), Performance measured after 12 hours Random Write test

Guaranteed endurance and reliability bolstered by 3D V-NAND technology

Compute longer with improved energy efficiency backed by 3D V-NAND

The 850 EVO delivers significantly longer battery life on your notebook with a controller optimised for 3D V-NAND now enabling Device Sleep at a highly efficient 2mW. The 850 EVO is now 25% more power efficient to the 840 EVO during write operations* thanks to 3D V-NAND only consuming half the energy than that of Planar 2D NAND. * Power (250 GB): 3.2 Watt (840 EVO) > 2.4 Watt (850 EVO)

Compute longer with improved energy efficiency backed by 3D V-NAND

Secure valuable data through advanced AES 256 encryption

The 850 EVO comes fortified with the latest hardware-based full disk encryption engine. The AES 256 encryption-bit security technology secures data without any performance degradation and complies with TCG Opal 2.0. It is also compatible with Microsoft e-drive IEEE1667 so your data is protected at all times for your peace of mind.

Secure valuable data through advanced AES 256 encryption

Protect against overheating with a highly responsive Dynamic Thermal Guard

The 850 EVOs Dynamic Thermal Guard constantly monitors and maintains ideal temperatures for the drive to operate in optimal conditions for the integrity of your data. When temperatures rise above an optimal threshold, the Thermal Guard automatically throttles temperatures down protecting your data while maintaining responsiveness to ensure your computer is always safe from overheating.

Protect against overheating with a highly responsive Dynamic Thermal Guard

Level up to the 850 EVO simply without any hassle

In three simple steps the Samsungs One-stop Install Navigator software easily allows you to migrate all the data and applications from the existing primary storage to the 850 EVO. The Samsung Magician software also allows you to optimise and manage your system best suited for your SSD.

Level up to the 850 EVO simply without any hassle

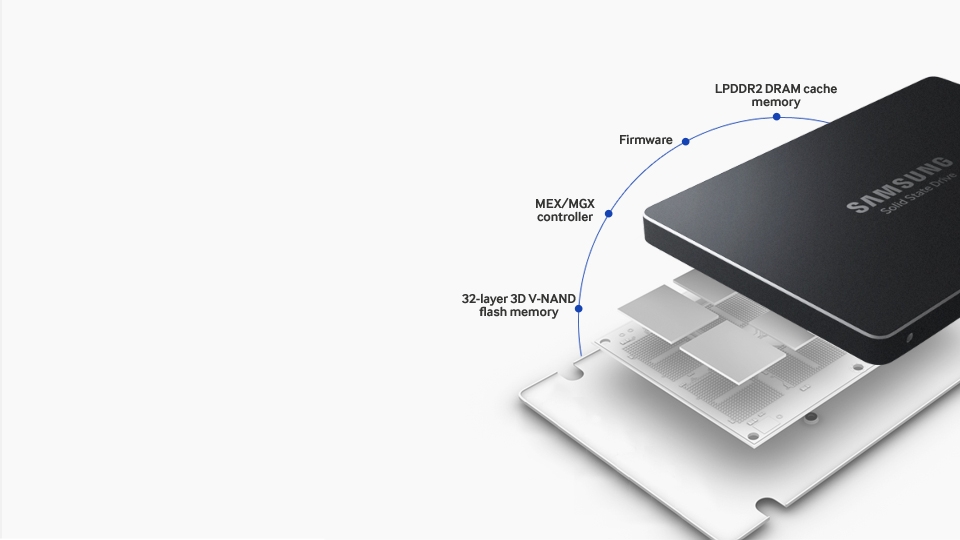

Acquire an integrated in-house solution consisting of top-quality components

Samsung is the only SSD brand to design and manufacture all its components in-house allowing complete optimised integration. The result enhanced performance, lower power consumption with an up to 1 GB LPDDR2 DRAM cache memory and improved energy-efficiency with the MEX/MGX controller.

Acquire an integrated in-house solution consisting of top-quality components

Tech specs

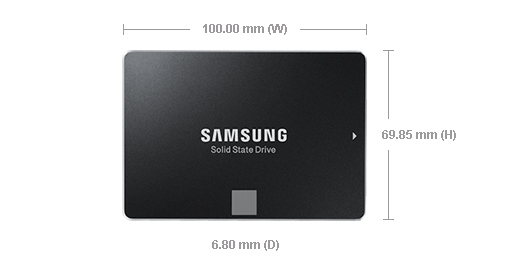

Dimension of MZ-75E1T0BW


General Feature

  • Application

    Client PCs

  • Capacity

    1,000 GB (1 GB=1 Billionbyte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    2.5 inch Form Factor

  • Interface

    SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

  • Dimension (WxHxD)

    100.00 x 69.85 x 6.80 mm Dimension

  • Weight

    Max 66 g Weight

  • Storage Memory

    Samsung 32 layer 3D V-NAND

  • Controller

    Samsung MEX Controller

  • Cache Memory

    Samsung 1 GB Low Power DDR2 SDRAM

Special Feature

  • TRIM Support
    TRIM Supported
  • S.M.A.R.T Support
    S.M.A.R.T Supported
  • GC (Garbage Collection)
    Auto Garbage Collection Algorithm
  • Encryption Support
    AES 256 bit Encryption (Class 0) , TCG/Opal, IEEE1667 (Encrypted drive)
  • WWN Support
    World Wide Name supported
  • Device Sleep Mode Support
    Yes


Performance

  • Sequential Read

    Up to 540 MB/seconds Sequential Read * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 520 MB/seconds Sequential Write * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD32)

    Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 90,000 IOPS Random Write * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD1)

    Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD1)

    Up to 40,000 IOPS Random Write * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)

    * Average: 4.0 watts * Maximum: 4.4 watts (Burst mode) * Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Max. 50 m watts * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    5V 5% Allowable voltage

  • Reliability (MTBF)

    1.5 Million hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 C Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

Software

  • Management SW

    Magician Software for SSD management

Warranty

  • Warranty

    5 Years Limited Warranty or 150 TBW Limited Warranty
