1:9 mSATA SSD / 2.5" HDD High Speed Duplicator
MSHU9HS
Overview
The Addonics family of Combo mSATA HDD duplicator is designed for making multiple copies of mSATA SSD or 2.5" SATA HDD/SSD from a single master drive. Each duplicator comes bundled with a set of 2,5" mSATA flash drive kit that turns a mSATA SSD into a 2.5" SATA SSD. You can mix and match the mSATA SSD and the hard drive into the duplicator, thus making it a handy tool for transferring the content between the mSATA card and 2.5" hard drive. There is no computer needed or complex software to operate. Just open the doors on the drive bays, load the master media into the source bay and the target media of capacity equal or larger into the target bays, lock the drive doors and push the start button to start the copying process.
About this model
This 1:9 mSATA /SSD/HDD HS Duplicator allows you to copy from one source media onto as many as nine (9) target media at one time. Comes bundled with ten (10) mSATA flash drive kits to convert mSATA SSD into a 2.5" SSD, the source and target drive can be of either mSATA SSD, 2.5" SATA SSD or 2.5" SATA hard drive. This is also a great tool for transferring content among mSATA SSD, 2.5" SSD or 2.5" SATA drive. By adding other optional 2.5" flash drive adapters, the supported media can be expanded to include M2 (NGFF) card, CFast card and CF card. Designed with snap-In drive bay, drives are easily added or removed without any special tool, just like an ordinary cassette tape.

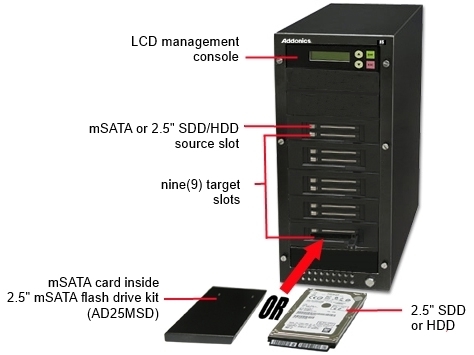

Duplicator overview
Installing mSATA card into the 2.5" mSATA flash drive kit (AD25MSD)
1. Insert the mSATA SSD into the mSATA connector on the PCB
2. Push down the other end of the mSATA SSD till it is latch securely by the hold down clip
The completed flash drive has the same dimension of a 9mm 2.5" HDD
Turn the drive upside down to load into the duplicator
Combo mSATA SSD/2.5" HDD Duplicator familiy comparison chart
|
Copying options
|
MSHDUS5HS, MSHDUS5LX
|
MSHU9HS-2S
|
MSHU9HS
|
MSHDU11T
|
MSHU11-2S
|
|
From source
|
To target
|
| mSATA SSD |
mSATA SSD |
Yes, up to 5 targets
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| mSATA SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 2.5" SATA HDD/SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 2.5" SATA HDD/SSD |
mSATA SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 3.5" hard drive |
mSATA or 2.5" SSD/HDD |
|
Yes,up to 9 targets
|
NA
|
NA |
Yes,up to 11 targets |
Features
- Copy up to nine (9) mSATA SSD or 2.5" SATA HDD/SSD with drive thickness up to 9.5 mm
- Supported source media: mSATA SSD, 2.5" SSD and 2.5" hard drive
- Supported target media: mSATA SSD. 2.5" SSD and 2.5" hard drive
- Comes with ten (10) units of 2.5" mSATA flash drive kits to convert mSATA SSD to 2.5" SSD
- Additional support for M2 (NGFF), CFast or CF card with the following optional 2.5" flash drive kit - AD25M2SSD, AD25CFASTD, AD25CFD
- High performance with minimum degradation from one to nine targets
- Typical copying speed*:
| Copying Speed |
| 1 target |
3 targets |
4 targets or more |
| ~ 105 MB/sec |
~ 85 MB/sec |
~80 MB/sec |
- Support any file system
- Maximum storage capacity >3TB
- Source and Destination drives are added or removed like tape cartridges from each drive bay with no special tool required
- Drive sanitization:
- SECURE ERASE - HDD duplicator sends aWIPE command to the hard drive. This commandfills 00 string to entire HDD (this option may not be supported on some SSD or mSATA card)
- OVERWRITE - One pass, 3 passes and 7 passes 5220.22-M.The duplicator writes a string of pattern over the entire disk one time, three times or seven times. 5220.22-M isthe DoD standard for drive sanitization
- LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here Full LCD console feature list)
- Operate as a stand alone appliance. No computer or software needed
*The speed here is for reference only. The acutal transfer rate varies depending on the speed of the source and destination drive
Components for the main unit
Storage Tower (ST9), 1:9 HDD High Speed Duplicator subsystem (HDU9SASHS), five (5) Snap-In Double Drive (AE25SNAP2SA)
Bundled accessories:ten (10) units of 2.5" mSATA flash drive kit (AD25MSD), power cord, user guide
Specifications:
- Writing mode: Sector to Sector
- Typical copying speed:
| Copying Speed |
| 1 target |
3 targets |
4 targets or more |
| ~ 105 MB/sec |
~ 85 MB/sec |
~ 80 MB/sec |
- Sturdy metal frame construction
- Drives are added or removed just like VHS cassette without tools
- LCD display with functional control panel
- Well ventilated for efficient air flow.
- Two low noise high CFM ball bearing cooling fan
- Integrated universal AC 110/240V power supply
- Dimension: ~7.5 x 17.25 x 17.2 in. (90 x 438 x 437 mm.)
- Weight:~ 23.23 lb (10.54 Kg)
- Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
- Storage temperature and humidity: (-20) - (65) degree C, 0% - 95% RH non-condensing
Specification subject to change without notice
