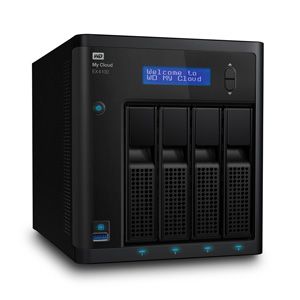

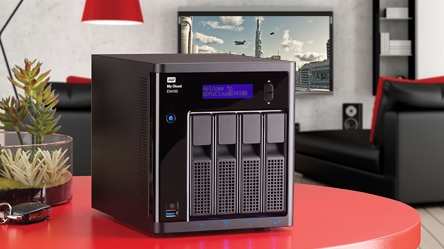

My Cloud EX4100

Network Attached Storage

My Cloud EX4100

Features

Overview

Save all your valuable photos, videos, music and files on this ready-to-go, high-performance NAS solution for secure access to them anytime, from anywhere. Protect your content with multiple backup options, customize your NAS with a full suite of apps and enjoy peace of mind knowing that we've put our best in it, so you can put your best on it.


Centralize your media and content in one safe, organized place

Whether you're a creative hobbyist, creative professional or have an impressive media collection, you will undoubtedly have loads of digital content to store. With My Cloud Expert Series NAS, you can easily centralize and protect your valuable content from all the PC and Mac computers on your network. Plus, access it anytime, from anywhere with tablets and smartphones.

Get power that keeps up with your passion

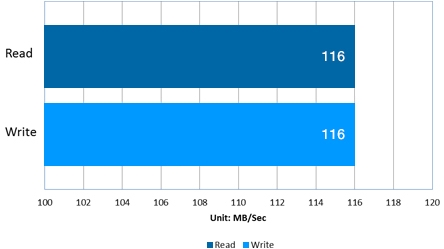

Powered by a strong Marvell® ARMADA® 388 1.6 GHz dual-core processor, My Cloud EX4100 gives you ultra-fast transfer speeds of 116 MB/s upload and 116 MB/s download to keep up with your high-performance needs. Now you can upload more content simultaneously, stream your HD media more smoothly, and enjoy your creative life with ease.

Gigabit Ethernet Testing environment based on Dell Optiplex 9020 (SFF) with Intel Core i7, 8GB RAM running Windows 8.1 Pro using an Intel X540-T2 10G Ethernet connection. Performance may vary based on different hardware / software configurations as well as network load during testing.

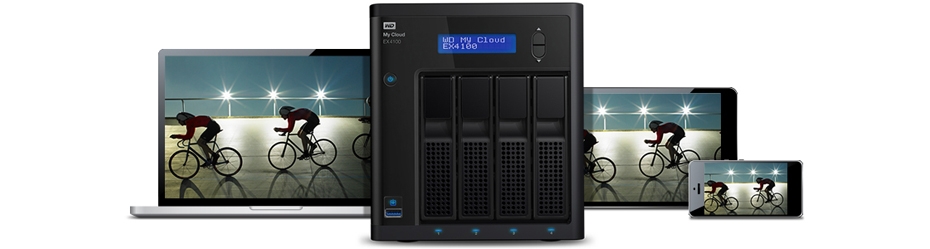

Stream like a pro

With the built-in Twonky DLNA-certified media server, you can seamlessly stream all your HD videos, photos and music stored on your My Cloud Expert Series NAS to media players, Smart TVs, gaming consoles and other DLNA-certified devices on your network. It's an easy way to enjoy your media collection on the biggest screen in your house.


Safeguard your content with comprehensive data protection

My Cloud EX4100 keeps your irreplaceable photos, videos and files safe with multiple data protection options to secure your content from unexpected loss. Protect all the PC and Mac computers on your network using local, remote or cloud backup. Multiple RAID configurations and volume encryption add even more protection and security for all your files.


Be up and running in minutes

My Cloud EX4100 comes preconfigured to get you set up and on your way without any hassle. The intuitive dashboard guides you through the process of setting up users and shares, customizing system features and monitoring your storage. And with a toolless and trayless drive bay design, drive installation and hot swap is effortless.

Built-in reliability for added peace of mind

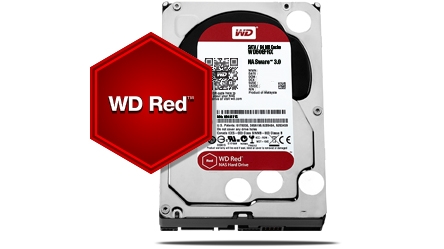

My Cloud Expert Series pre-configured NAS come populated with WD Red NAS hard drives. Ultra-reliable and purposely built for NAS systems, WD Red drives improve performance and thrive in 24x7 environments.

WD's exclusive NASware technology further optimizes WD Red for the NAS environment. From vibration compensation, optimized power usage and protecting your content in the event of a power loss or disruption, the firmware is designed to give you improved reliability and system performance.

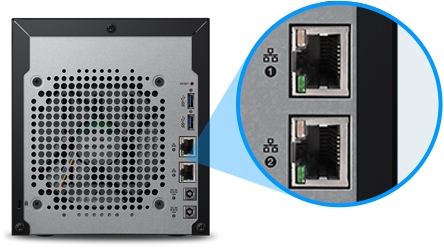

Get enhanced media streaming and network redundancy

Dual Gigabit Ethernet ports for link aggregation enhances network performance giving you the best possible HD media streaming experience. It also provides for network redundancy should one of your network connections fail.

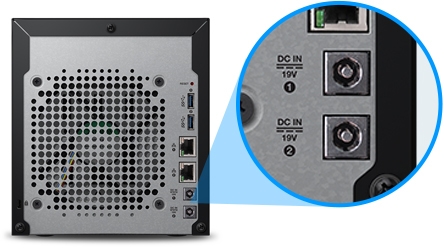

A power supply with a backup plan

My Cloud EX4100 comes equipped with dual power ports offering you the option of adding a second external power supply that will take over should the first power supply fail, giving you uninterrupted access to your content.

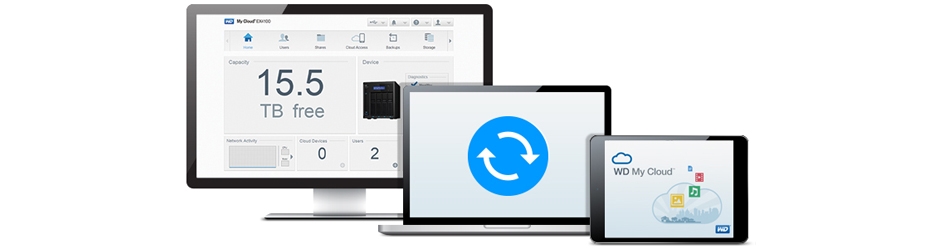

My Cloud OS - content management made simple

WD's My Cloud OS delivers a suite of tools and apps that empower you to easily take control of the content that matters to you most. The intuitive, easy-to-use dashboard makes set up, managing storage and personalizing your NAS effortless. Our award-winning My Cloud app allows you to securely access and share your files from anywhere with computers, tablets and smartphones. And with popular third-party apps available for download, you are enabled to customize your NAS to best fit your needs.

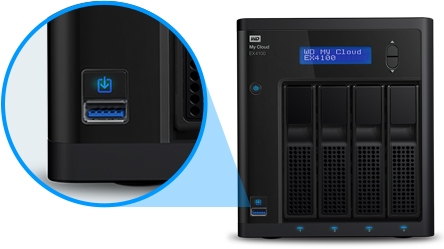

Automatically copy your external USB with the touch of a button

With the built-in, one-touch copy button conveniently located on the front of the NAS, you can automatically copy all the photos, videos and music you have stored on an external USB or camera to the My Cloud EX4100, keeping all your media and files in one safe, central location.

Save on energy automatically

My Cloud EX4100 comes equipped with drive sleep mode, LCD and LED on/off and power scheduling capabilities to save power and runtime energy.



Professional-grade features

  • iSCSI target and initiator
  • Integrated FTP and WebDAV server
  • Integrated SSH Secure Shell
  • Link aggregation and network redundancy
  • Dual power ports for failover support
  • Jumbo frame support
  • IPv4 and IPv6
  • UPS support (USB and network)
  • Real-time resource monitor
  • SNMP
  • Microsoft Active Directory support
  • Energy-saving options

My Cloud OS

My Cloud OS delivers a suite of tools and apps that empower you to easily take control of the content hat matters to you most. From setting up the device to file sharing and collaboration, My Cloud OS makes managing and using your NAS a breeze.

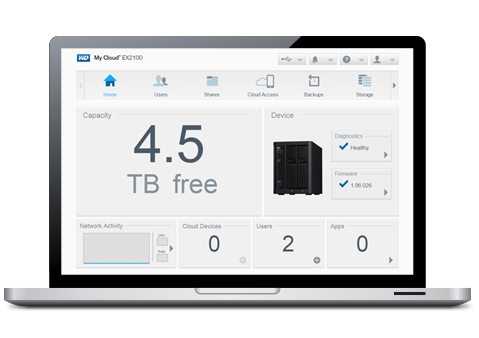

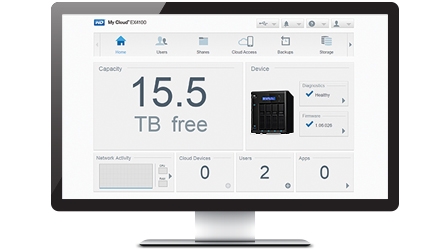

Seamless setup and management

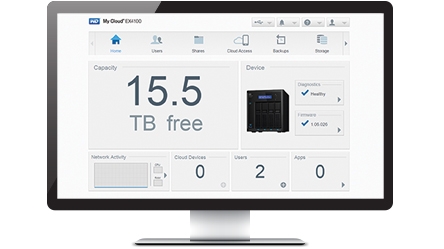

The intuitive dashboard guides you through the process of setting up users and shares, customizing system features and monitoring your storage. Plus, mobile alerts keep you informed on the status of your My Cloud Expert Series NAS.


Mobilize your media

From anywhere in the world, you are always connected to your My Cloud Expert Series NAS with the My Cloud mobile and desktop apps. The award-winning mobile app allows you to securely access your content using smartphones and tablets, and easily share it with family, friends and colleagues. With the desktop app for PC and Mac computers, you can easily drag and drop files, manage your content and share links to photos, videos or folders via email.

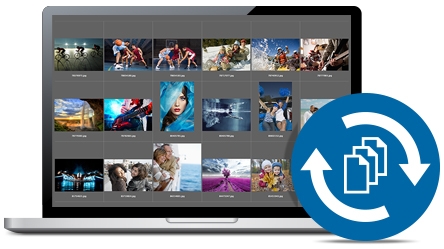

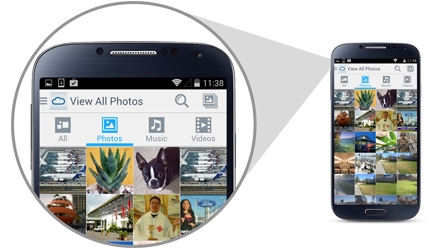

Experience your media in a whole new way

Media View delivers a more engaging way to view and search your photos, music and video content. Simply select a media icon to quickly view all of that content, or select to view by date or album.

Take your music on the road

With the My Cloud mobile app, you are always plugged in to your favorite artists, playlists and songs. Centralize your entire music library on your My Cloud at home and access it when you're on the go. Select your favorite playlist and while you're listening, search for your next jam so you don't skip a beat.


Customize your NAS with popular third-party apps

aMule

Free peer-to-peer file sharing application that works with the EDonkey network and the Kad network. The app provides search capability for finding desired P2P files and has a full-featured P2P server/client Web UI interface.

phpBB

One of the leading bulletin board solutions, including powerful permission systems, private messaging, search functions, a customizable template and language system, as well as support for multiple databases.
SqueezeCenter

Streaming audio server that supports MP3, FLAC, WAV, Ogg, ACC, as well as transcoding. Stream to both hardware and software receivers as well as any media player capable of playing MP3 streams.
WordPress

WordPress is a free and open source blogging tool and a content management system (CMS) based on PHP and MySQL. Create your own WD My Cloud Expert Series based customized Blog that can be accessed and commented on from any internet connection.
Icecast

Open source media streaming app that can be modified to suit your individual needs.
Joomla!

Content Management System (CMS) that facilitates easy management of your website text, photos, videos, music and documents.

phpMyAdmin

Handles the administration of MySQL via web with ability to create and drop databases; create, drop, or alter tables; delete, edit or add fields; execute any SQL statement and manage keys on fields.

Transmission

Transmission is one of the best choices for a BitTorrent client, being both extremely lightweight and feature-packed.
Transmission's interface is easy to use, yet very powerful, especially when it comes to managing bandwidth.

Advanced Features

Advanced Backup

My Cloud Expert Series provides comprehensive data protection options to secure your content from loss.

Backup that's right for you

Automatically backup all the computers on your network and get flexible restore points for file version recovery. PC users, WD SmartWare™ Pro offers options for how, when and where your files get backed up.

Mac users, utilize all the features of Apple Time Machine backup software to protect your media and files.

Back up to integrated cloud solutions

ElephantDrive

ElephantDrive is a premium cloud-based backup, sync and sharing solution platform. With simple, fast and reliable protection for all of your important files, ElephantDrive is the perfect solution for users at any level. ElephantDrive's software runs on all personal devices (laptops, desktops, smartphones, etc.) as well as natively on NAS devices, where it is the leading solution in the space.
Amazon S3

Amazon S3 Backup and Restore feature allows you to back up data directly to your Amazon S3 account. Amazon S3 gives you peace of mind when used as an offsite backup, should anything happen to the data stored on your My Cloud Expert Series NAS.

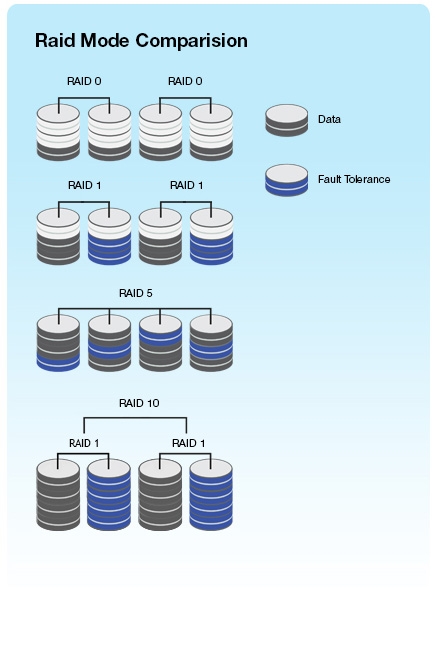

RAID 0 - Speed

RAID 0 mode provides disk striping across all drives in the RAID drive group. RAID 0 does not provide data redundancy but does provide the best performance of any RAID levels. RAID 0 breaks up data into smaller segments and stripes the data segments across each drive in the drive group.

RAID 1 - Data protection

Set the system to data protection mode (also known as mirrored mode or RAID 1) and the capacity is divided in half. Half of the capacity is used to store your data and half is used for a duplicate copy. If one drive goes down your data is protected because it's duplicated.

RAID 5 - Data protection and speed (available on 4-bay NAS)

In systems with three or more drives we recommend that you set the system to RAID 5. This gives you the best of both worlds: fast performance by striping data across all drives; data protection by dedicating a quarter of each drive to fault tolerance leaving three quarters of the system capacity available for data storage.

RAID 10 or RAID 1+0 - High reliability with high performance (available on 4-bay NAS)

RAID 10 delivers very high I/O rates by striping RAID 1 (mirrored) segments. This RAID mode is good for business critical database management solutions that require maximum performance and high fault tolerance. A system set to RAID 10 yields half the total capacity of all the drives in the array.

JBOD & spanning

JBOD is the use of one or more drives not in a RAID configuration but managed as separate logical volumes. Spanning is the combination of drives in a linear fashion to create one large logical volume. The advantage of using this mode is that you can add more drive without having to reformat the system.


Professional-grade Features

User management/group management

With My Cloud Expert Series, it is easy to grant users access to the NAS, create groups and give access to those groups, and manage the amount of storage users/groups have access to.

Microsoft Active Directory support

Add My Cloud Expert Series to your Active Directory (AD) server for simplified and centralized management, as well as easy access for colleagues with one set of domain accounts. Everyone can use a single account to access various services with ease.

Distributed File System (DFS)

Connect My Cloud Expert Series NAS to a Microsoft Windows server to organize many distributed SMB file shares into a DFS for improved data availability in the event of failure or heavy workloads.


Volume virtualization using iSCSI targets

Manage storage over long distances and transfer data over LANs, WANs or the Internet by creating a Storage Area Network (SAN). My Cloud Expert Series NAS allow you to create and manage iSCSI targets, similar to a local hard drive, that is accessed over a network rather than locally. The iSCSI target is protected by the underlying RAID structure of the My Cloud Expert Series NAS.

Jumbo frame support

My Cloud Expert Series support jumbo frames up to 9000 bytes. These large IP frames are used to increase performance over supported networks. Increases in data transfer speeds only occur if every device on your network supports jumbo frames.

Link aggregation and failover support

Combine multiple network connections to increase data transfer past a single connection and provide redundancy in the event of a failed connection. This is also known as bonding, and refers to the use of two LAN NICs present in your NAS and two cables connected to your router simultaneously, improving reliability.

iPv6 ready

My Cloud Expert Series support iPv6, keeping your NAS up-to-date with the latest Internet Protocol.


UPS support (USB and network)

USB UPS: A supported UPS device that is connected to a My Cloud Expert Series NAS via USB cable can detect a power loss and gracefully shut down power.

Network UPS: Network UPS devices can be used when there is a single UPS device and multiple My Cloud Business Series units. One My Cloud Expert Series NAS can act as a "Network UPS server" and connect to the UPS device via USB or network (depending on the device). The network UPS server obtains UPS information and relays it to the other "client" Expert Series NAS.

Real-time resource monitors

Provide up-to-date information on My Cloud Expert Series resources, including CPU percentage, network utilization and RAM usage.

Virtual volumes

Virtual volumes simplify scalability by allowing you to map iSCSI targets on other network storage devices and present them as shares on your My Cloud Expert Series device.

SNMP

Simple Network Management Protocol, a protocol for managing devices on a network, allows My Cloud Expert Series NAS to be used in a managed environment. IT administrators who need to monitor multiple network devices, including My Cloud Expert Series via SNMP should download the document available here.

Disk spin-down

Set disk spin-down after as little as 10 minutes, saving runtime energy.

Wake-on-LAN

Use WD Quick View to wake My Cloud Expert Series NAS without having to physically push a button.
Automatic power recovery

This feature automatically restarts the My Cloud Expert Series NAS from an unexpected power-failure shutdown.

Scheduled power on/off

Set your own customized schedule to power on your My Cloud Expert Series NAS on a daily basis to save power when not in use.



File server

Get shared storage for PC and Mac computer files that can be accessed from other workstations that are on the same network.

Backup server

The My Cloud Expert Series backup server is designed with flexibility in mind. Designate a back up to or from a connected USB drive or internal volumes.
FTP server

The fully-featured FTP server manages server to manage the transfer of files from My Cloud Expert Series to a client with the following capabilities:

FTP bandwidth restriction (upstream/downstream)
IP address block (block access from undesired IP address)
IP address block time limits
Anonymous FTP
Secure FTP support
Support File eXchange Protocol (FXP)

P2P download server

Utilize popular Peer-2-Peer services to download torrents.

Http download server

The built in HTTP download server allows you to download files directly from the web to a My Cloud Expert Series NAS.

Specifications

WDBWZE0240KBK - Gigabit Ethernet x2 - 24 TB - Windows/Mac


Interface

  • Gigabit Ethernet x 2
  • Power supply (DC in) x 2
  • USB 3.0 expansion port x 2





Drive bays

  • 4 x 3.5 inch hard drive bays, hot swap capable, tray-less design



Internal hard drives

  • WD Red NAS hard drives



Processor

  • Marvell ARMADA 388 1.6 GHz dual-core



Memory

  • 2 GB DDR3



System Requirements

  • Windows 8, Windows 7, Windows Vista, Windows XP (SP3) operating system
  • Mac OS X Mountain Lion, Lion, Snow Leopard and Mavericks operating systems
  • DLNA/UPnP devices for streaming
  • Internet connection for remote access



Supported Web Browsers

  • Internet Explorer 8 or higher
  • Safari 6 or higher
  • Firefox 21 or higher
  • Google Chrome 27 and later on supported Windows and Mac OS platforms



Network Protocols

  • DHCP Client or Static IP
  • NTP Client
  • Dynamic DNS (DDNS)
  • Apple Bonjour and Windows Rally
  • Jumbo frame support up to 9K
  • VLAN (802.1Q)
  • Link Aggregation(802.1ad)/ Ethernet teaming and failover for 2 Gigabit Ethernet ports
  • UPnP port forwarding
  • IPv6
  • iSCSI
  • SSH



Network File Services

  • OS Supports
    • Windows XP Home/ Pro/ 64-bit SP3+
    • Windows Vista/ 7/ 8 (All versions)
    • Mac OS X 10.6, Lion, Mountain Lion
  • CIFS/SMB for Windows, Mac OS X and Linux
  • NFSv3 for Linux and UNIX
  • AFP for Mac OS X
  • Microsoft Distributed File System (DFS)
  • WebDAV Server



Security

  • Active Directory support for Windows Server
  • Volume Encryption (256 bit AES)



File System

  • EXT4 for internal HDD
  • Support following formats for externally attached USB drives
    • FAT/FAT32
    • NTFS (read and write capability)
    • HFS+J (case sensitive)
    • Linux EXT2, EXT3, EXT4



FTP Server

  • Support Port Setting
  • Set port range of passive FTP
  • Option to report external IP in PASV mode
  • Client language selection
  • Anonymous FTP
  • Secure FTP Support
  • Support File eXchange Protocol (FXP)
  • FTP bandwidth restriction (upstream/downstream)
  • IP address block (block access from undesired IP address)



Download Management

  • HTTP downloads from a URL to a user specified folder on the NAS
  • FTP downloads of files or folders from an FTP server to another files/folders on the NAS
  • P2P Download Manager



Disk management

  • RAID: JBOD, spanning, 0/1/5 10/5 + hot spare support
  • RAID migration
    • JBOD to RAID 1
    • JBOD to RAID 5
    • RAID 1 to RAID 5
  • Hot swapping
  • Hot spare (in four disk mode)
  • Disk roaming
  • Array roaming



Power Management

  • Drive Spin Up/Down (including Attached WD USB drives)
  • Automatic power recovery (with UPS)
  • Schedule power on/off
  • Graceful shutdown on UPS low battery
  • FAN Control
  • Network UPS
  • Wake On LAN



Remote Access

  • My Cloud and WD Photos mobile app
  • My Cloud desktop app



User/Group Management

  • Max No. of Users: 512 for Samba, 800 for ADS
  • Max No. of User Groups: 64 for Samba, 200 for ADS
  • Max No. of Network Shares: Max No. of Network Shares: 128
  • Max concurrent CIFS connections: 10
  • User/Group assignment for network sharing/FTP
  • Quotas for groups or users
  • Assignment of users to multiple groups
  • Batch assignment of users to groups
  • Batch user creation
  • Importing users (CSV Delimited Format)
  • Importing groups (CSV Delimited Format)



LCD Panel

  • 2 lines of 16 characters for status and alerts



Backup management

  • Remote backups: My Cloud Expert Series to My Cloud Expert Series locally or remotely
  • Apple Time Machine (10.5.8+) support
  • Backup internal files or folders of the device to other files/folders on the NAS
  • Cloud-based backup services
    • Amazon S3
    • ElephantDrive (http://home.elephantdrive.com/)
  • Disk sync management for the attached USB ports



System Management

  • LCD display information:
    • IP Address of connected server (and friendly name)
    • Fan monitor
    • System temperature monitor
    • Disk monitor
    • Disk volume monitor
    • Ethernet plug monitor
    • Device uptime
    • Capacity remaining
    • Firmware version
  • System status: Device Information
    • Capacity usage status for the external storage
    • File category breakdown of how much video, photo, music is stored
  • Alert notifications
    • Event UI message
    • UI Alert (with message acknowledgment required)
    • Email notice
    • QuickView pop-up message
    • RED LED status
  • Network recycle
    • Support Windows CIFS
    • Support Apple AFP
  • System/FTP Log (Syslog Client)
  • HTTP/S (Web) Administration Interface (HTTP Server)
  • Firmware upgrade
  • Configuration backup and restore
  • SNMPv2
  • System Information
    • CPU percentage
    • RAM usage
    • Network performance in MB/s



USB port

  • Support UPS monitoring
  • Support External Storage device
  • Support MTP (Media Transfer Protocol) and PTP (Picture Transfer Protocol)



Media Streaming

  • UPnP AV Media server (Twonky)
  • DLNA certification
  • Support WD TV Live, Xbox 360, PlayStation 3, Windows 8, connected TVs, Blu-ray players and digital picture frames
  • iTunes Server



Add-on support

  • aMule - peer to peer file sharing application
  • Icecast - media streaming app
  • phpBB - Internet forum application
  • Joomla! - content management system
  • SqueezeCenter - streaming audio server
  • phpMyAdmin - My SQL administration tool
  • WordPress - blogging tool and content management system
  • Transmission - BitTorrent client



iSCSI

  • iSCSI Target
    • CHAP authentication
    • iSNS (Internet Storage Name Service )
    • Up to 64 iSCSI Targets
  • Volume Virtualization: NAS can be configured as an iSCSI initiator and capable of mapping any iSCSI target of the other device to be one virtual volume.
    • Virtual Disk Drive (via iSCSI Initiator)
    • Max number of virtual disk drives supported is eight (8)



Power Supply

  • Input voltage: 100V to 240V AC
  • Input frequency: 50 to 60 Hz
  • Output voltage: 19V DC, up to 6.32A



Temperature

  • Operating Temperature: 0 C to 35 C ( 32 F to 95 F)
  • Non-op Temperature: -40 C to 70 C (-40 F to 158 F)



Package Contents

  • NAS
  • Ethernet cable
  • Power supply and cable
  • Quick Install Guide

No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 4 | TM: 5 | LM: 10 | TY: 142 | T: 539

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2017 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
