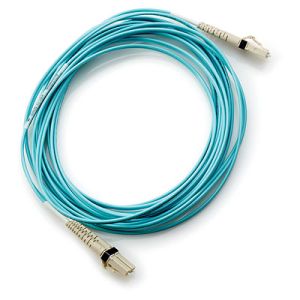

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

Overview

Specifications

Product dimensions (W x D x H) 0.5 x 12 x10 in
Technical Notes Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 3.0um Cladding diameter: 125 2.0um Coating diameter: 245 10um Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
Weight ( Imperial ) 1 lb
Weight ( Metric ) 0.45 kg



Extended specifications




Technical Information

Cable Type Fiber Optic
Fiber Optic Mode Multi-mode
Core/Cladding Diameter 50/125 m
Cable Length 16.40 ft
Connector on First End 2 x LC Male
Connector on Second End 2 x LC Male

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
