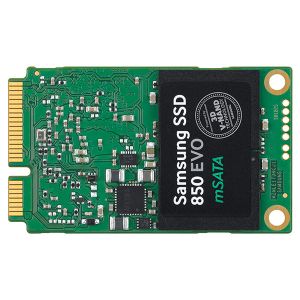

SSD 850 EVO mSATA 500GB


MZ-M5E500BW

Storage: 500GB

  • Innovative 3D V-NAND Technology
  • Incredible Read/Write Performance
  • Enhanced Endurance and Reliability
  • The Most Evolved SSD for Ultra-thin Laptops and PCs

About This Product

The Samsung SSD 850 EVO. The top SSD for top professionals.

Specifications

Type

  • Product Type

    mSATA

  • Interface

    SATA 6Gb/s Interface, compatible with SATA 3Gb/s & SATA 1.5Gb/s interface

Application


  • Consumer

    Client PCs

Storage

  • Capacity

    500 GB (1GB=1 Billionbyte by IDEMA) *
    *Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Features

  • Sequential Read Speed

    Up to 540 MB/sec Sequential Read *
    *Performance may vary based on system hardware & configuration

  • Sequential Write Speed

    Up to 520 MB/sec Sequential Write *
    *Performance may vary based on system hardware & configuration

  • Random Read Speed

    Random Read (4KB, QD32): Up to 97,000 IOPS Random Read
    * Performance may vary based on system hardware & configuration
    Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
    * Performance may vary based on system hardware & configuration

  • Random Write Speed

    Random Write (4KB, QD32): Up to 88,000 IOPS Random Write *
    *Performance may vary based on system hardware & configuration
    Random Write (4KB, QD1): Up to 40,000 IOPS Random Write
    * Performance may vary based on system hardware & configuration

  • Memory Speed

    Samsung 32 layer 3D V-NAND
    Samsung 512 MB Low Power DDR3 SDRAM

  • Controller

    Samsung MEX Controller

  • Trim Support

    Yes

  • AES Encryption

    AES 256 bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

  • S.M.A.R.T. Support

    Yes

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • WWN Support

    World Wide Name supported

  • Device Sleep Mode Support

    Yes

General

  • Power Consumption (W)

    50 mWatts
    * Actual power consumption may vary depending on system hardware & configuration
    Average: 3.3 Watts *Maximum: 4.8 Watts (Burst mode)
    * Actual power consumption may vary depending on system hardware & configuration

  • Voltage

    5V5% Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

Environmental Specs

  • Operating Temperature

    32F - 158F

  • Shock

    1,500G & 0.5ms (Half sine)

Form Factor

  • Product

    mSATA

Dimensions (W x H x D)

  • Product

    1.18" x 2" x 0.15"

Weight

  • Product

    0.02 lb.

Software

  • Management SW

    Magician Software

Warranty

  • Product

    5 Years Limited Warranty or 150TBW Limited Warranty
