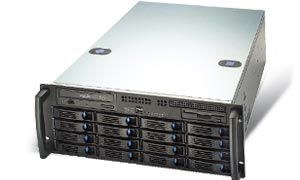

Chenbro CSPC-41416AB-6G 19" Rackmount Chassis, NO PSU, 4U
  • 16 x 3.5"SAS/SATA Hot Swap, Fan/Over-Heat Fault Detection, 2xUSB2.0
  • Support Motherboard Up to 12" x 13"

IMG 1 of 1
No Longer Available
Part Number:
391574
(?) Brand:
Chenbro
Manuf No:
CSPC-41416AB-6G
CSPC41416AB6G
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/3/2015
Details Files Finance Images & Video
All stock codes associated to this product
, CSPC41416AB6G, CSPC-41416AB-6G
CSPC-41416AB-6G

Overview

Features

Easy Installation and Maintenance Screw-less top cover for easy maintenance
  Hot-swap trays for easy maintenance
Complete System Function & Compatibility Support storage capacity up to 4TB and more
  Support SATA HDD activity LED via 3ware RAID cards
  Front access USB 2.0 ports
Excellent Thermal Solutions 16 drive bays
  Support 4 pcs of 4-in-1 BP for good ventilation
  2 x 80 mm rear fans(option) for excellent air ventilation
System Monitoring Fan / over-heat fault detection
  Reset switch to disable audible warning
Application References Media/Streaming Server/Video-on-Demand
  Mobile Internet Service System
  Corporate Files Servers, DB/File Server
  Tape Replacement and Near-Line Storage
  NAS and SAN
  Data Warehousing Systems, Data Retention and Archives
  Security and surveillance systems, Digital Image Capture
  Application Server (ERP/Groupware)

Specifications

Supported Motherboard Form Factor
Up to 12" x 13"
Drive Bays
16 x 3.5" Hot Swap
Power Supply
Optional Single
Optional Redundant
Expansion Slots
7 x Full Height
Backplane
SAS/SATA2
Other Device Bays
1 x 3.5" External
1 x 5.25" External
1 x Slim DVD
Processor Support
Dual
Front Panel
Power On/Off button
System Reset button
2 x USB 2.0 Ports
HDD/LAN Activity
Fan Failure
Overheat Warning
System Cooling
5 fans
Dimensions (W x H x D)
430 x 176 x 660mm
Form Factor
4U

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
