EATON M68438 FlexPDU, 12 x IEC320 C13 Outlets - For Flexible

for PC hardware - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Networking -> Power Distribution Units (PDUs) -> EATON

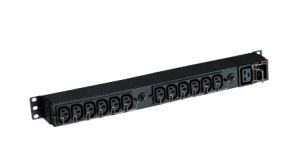

EATON M68438 FlexPDU, 12 x IEC320 C13 Outlets - For Flexible System for 19" Rack-Mounting Or On Eaton RT UPS

No Longer Available

Part Number:

393393

(?) Brand:

EATON Web Site

Manuf No:

M68438

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Date Added:

12/5/2015

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

M68438, M68438 , 3553340684388

Eaton FlexPDU

Having the right connectors just where you need them

FlexPDUs (Power Distribution Units) are flexible mounting PDSs for easy connection of multiple loads either as free-standing or on rack-mounted UPSs

FlexPDUs have a large number of sockets 12 IEC 10A sockets or 6 Aust 3 pin which fit into a very compact unit (1U - 19)

FlexPDUs are easy to implement into any type of installation: they can be rack mounted horizontally (1U) or vertically or directly onto all Eaton RT format (rack/tower) UPSs

Eaton FlexPDU

Flexible system for 19 rack-mounting or on Eaton RT UPSs
IEC 10A sockets
IEC 16A output for cascading
IEC 16A input socket
Retaining clip

Technical Specifications

Current rating: 16A

Voltage rating: 220-230-240-250 V

Installation

Format: 1U 19 rack-mounting with multi-position mountings

Installation: 19” rack horizontal or vertical mounting or on Eaton RT UPSs

Dimensions H x W x D: 44 x 483 x 80 mm

Connection

Inputs: 1 IEC C20 (16A) connector and 2 cables(1 IEC 16A - 16A cable and 1 IEC 10A - 16A cable) for connection to any UPS

IEC: 2 IEC 10A sockets + 1 IEC 16A socket (with 2 circuit breakers)

Cascading: Yes, IEC 16A output socket (except HW)

Retaining clips: Retaining clips on the IEC input and output sockets

Operating conditions, standards and approvals

Operating temperature: 0°C to 45°C continuous

Approvals: CE

No additional files, specification sheets, guides or documentation found for product.

Warranty: N/A

Full manufacturers warranty details are available at the manufacturers (EATON) web site.
