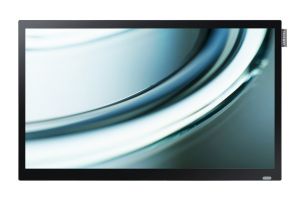

Samsung LH22DBDPSGC/XY DB22D-P Commercial LED LCD Display - Black
  • 21.5"E-LED BLU, 14ms, 1920x1080, 1000;1, 250cd/m2, HDMI, VGA, RS232, RJ45, WiFi, Speakers

IMG 1 of 4
No Longer Available
Part Number:
393589
(?) Brand:
Samsung Web Site
Manuf No:
DB22D-P
DB22DP
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/5/2015
Details Files Finance Images & Video
All stock codes associated to this product
LH22DBDPSGC/XY, DB22DP, DB22D-P, 8806086523578

DB22D-P


Drive effective advertising through agile messaging with compact SMART signage

Features

Versatility in a professional compact display

Gain reliability and versatility in a professional compact display

DB22D-P digital signage displays offer an array of professional grade features in a compact form factor. These small, versatile displays are great for delivering customised content to individual customers for an up-close and personalised experience. Also, DB22D-P is warranted for 16/7 usage for 3 years.1

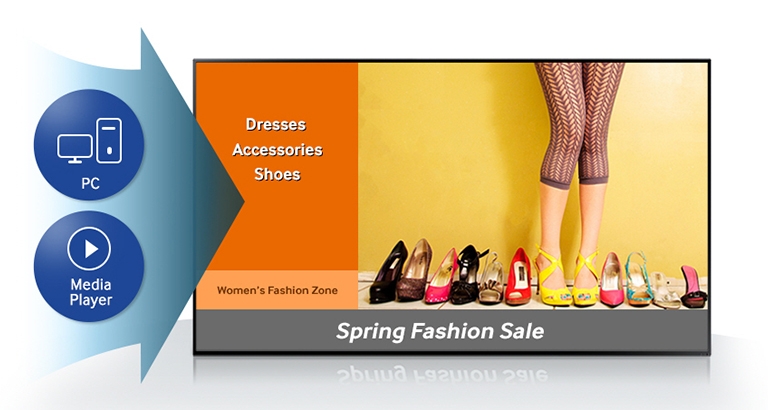

Simple content delivery with an all-in-one solution

Simple content delivery with an all-in-one solution

The embedded, all-in-one 2nd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation. Content deployment can be simple by using the USB plug-and-play feature. Attach your compatible USB device with your content (sold separately), for an easy plug-and-play content solution.

Business performance with Samsung

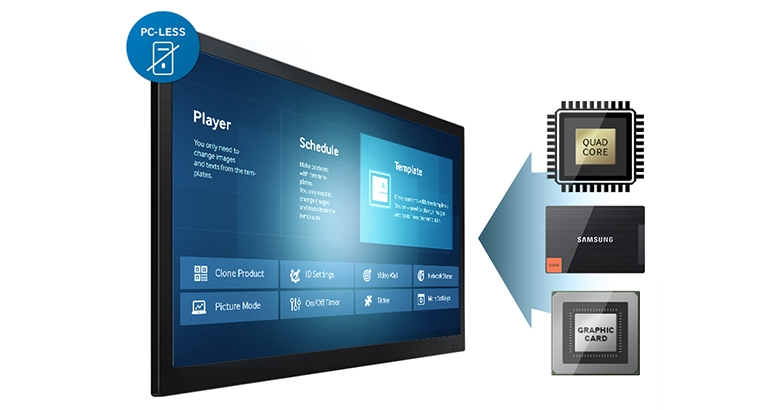

Accelerate business performance with advanced 2nd Generation SSSP

The 2nd generation Samsung Smart Signage Platform (SSSP) takes Samsung dynamic signage to another level. Included in the Samsung DB22D-P, the 2nd generation SSSP offers quad core System on Chip (SoC) technology, helping to deliver power and functionality for signage applications
MagicInfo Player S2 embedded System on Chip (SoC) technology.

Able to be used as a Stand-Alone Signage Solution.

Array of Design Templates included.

PC-less touch option using on-board SoC and optional Touch Module (sold separately).

Scalable for networked server based signage applications with MagicInfo S2 server/ client access software licence.

Manage digital signage wirelessly, using a compatible mobile device

Manage digital signage wirelessly virtually anywhere, anytime on a mobile device

With a convenient built-in Wi-Fi module, users can control and wirelessly distribute content to the digital signage solution in the display using compatible mobile devices. The ability to send and schedule content from a compatible mobile device helps simplify content management. Simply download the MagicInfo app to your compatible mobile device from Google Play Store or the Apple App Store and use your existing Wi-Fi infrastructure to connect and deliver content to your display.

Manage digital signage with a simple Home UI, tools and templates

Easily manage digital signage with a simplified Home UI, tools and templates

The intuitive Home UI can be easily controlled by the display remote (included), or by using your compatible USB keyboard or mouse (not included). When the optional Touch Overlay (sold separately) is added, the home screen UI supports touch interaction for easy use. The main display functions are conveniently available on the home screen UI in a new matrix design with large menu buttons for ease of use. Selected configuration menus are also displayed on the main home screen UI for easy access.

The Samsung DBD Series digital signage also provides powerful content management tools.

Features include:

Multi-channel scheduling: Deliver scheduled content on multiple channels simultaneously and access with channel up / down on display remote.
E-brochure4: Load product or service information on the display in the e-brochure function and you can interrupt scheduled content to share this information with clients.
Create content easily and conveniently from a selection of 100 design templates.

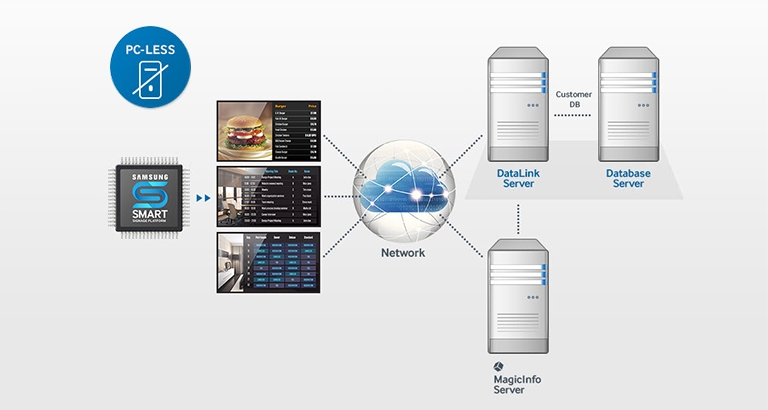

Content control capabilities without the need for a separate PC

Enhance content control capabilities without the need for a separate PC

DB22D-P SMART Signage with its quad-core, SoC technology provides robust functionality and supports the optional PC-less DataLink feature which enables you to handle elaborate content management. You can easily retrieve and update content by purchasing a DataLink server and a DataLink extended module without needing a separate Set Back Box PC or Plug-in Module PC (PIM).

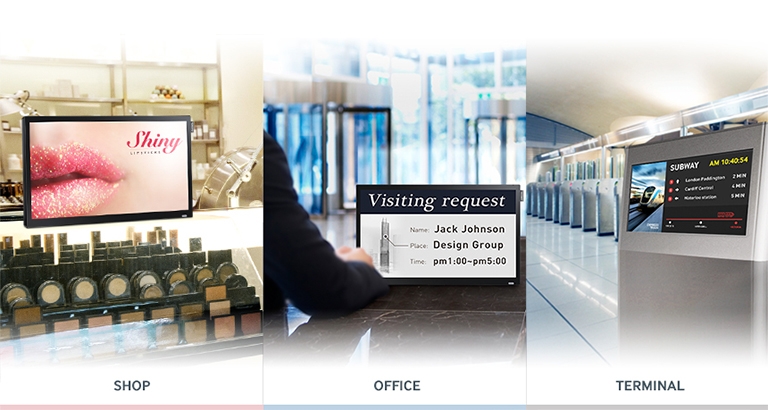

Help to ensure wide visibility of images for various locations

Ensure wide visibility of images optimized for the environment

Samsung has engineered the DB22D-P displays with several features that help to ensure superb quality full-high-definition (FHD) images for maximum impact. Designed to reach audiences, the screen features a wide-viewing angle with a WVA panel. In addition, various picture modes can be used for a variety of environments to help deliver quality for the location.

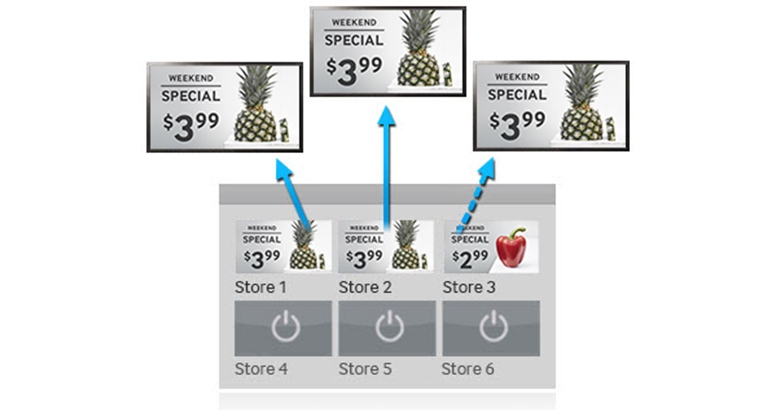

Control displays in multiple locations easily

Control displays in multiple locations easily and instantly

A scalable solution allowing you to create multi-display digital signage networks, the 2nd generation SSSP with the addition of a MagicInfo S Server Client Access software licence2 helps you create, schedule and deliver content from your compatible PC over your existing wired or wireless network infrastructure to a single DB22D-P display, or multiple compatible displays5. This web-based solution also enables display control from the MagicInfo Server1. DB22D-P Series 2nd generation SSSP comes with embedded Wi-Fi.


TECH SPECS

Display

  • Diagonal Size

    21.5"

  • Panel Type

    60Hz E-LED BLU

  • Resolution

    1920 X 1080

  • Pixel Pitch (HxV)

    0.2482 (H) x 0.2482 (V)

  • Active Display Size (HxV)

    476.64(H) X 268.11(V)

  • Brightness (Typical)

    250 cd/m2

  • Contrast Ratio

    1000:1

  • Viewing Angle (H/V)

    178:178

  • Response Time

    14ms

  • Display Color

    16.7M

  • Color Gamut

    72%

  • H-Scanning Frequency

    30 ~ 81kHZ

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    48 ~ 75HZ

  • Dynamic Contrast Ratio

    50,000:1

Connectivity

  • RGB In

    Analog D-SUB

  • Video In

    HDMI1

  • Audio In

    Stereo mini Jack


Power

  • Power Supply

    AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

  • Power Consumption (Off Mode)

    less than 0.5W

  • Power Consumption (On Mode)

    Max:44, Typical:40, BTU(Max):150.04

  • Power Consumption (Sleep Mode)

    less than 0.5W

Dimension

  • Net Dimensions (HxWxD)

    507.5 x 311.2 x 57.8

  • Package Dimension (HxWxD)

    570.0 x 376.0 x 128.0

Weight

  • Set Weight

    3.6kg

  • Package Weight

    4.9kg

Mechanical Specification

  • VESA Mount

    100100

  • Bezel Width

    17.5(top),14.9(side),24.5(bot) mm

  • Media Player Option Type

    embedded

Operation Conditions

  • Temperature

    0~ 40

  • Humidity

    10~80

General Feature

  • Special

    Temperature Sensor, Portrait Installation Support, Image Rotation, Button Lock, Clock Battery(80hrs Clock Keeping), Built in Speaker, WiFi Module Embedded

  • Speaker

    Built in Speaker(1W x 2)

Optional Feature

  • Protection Glass

    No

  • Mount

    N/A

  • Specialty

    N/A

  • Stand

    N/A

Internal Player (MagicInfo)

  • Special

    Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2

  • MagicInfo Support

    Yes

Certification and Compliance

  • EMC

    FCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 /2010.04 Class A, KCC/EK (Korea) : Tunerless : KN22 / KN24, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital), C-Tick (Australia) : AS/NZS CISPR22:2009, CCC(China) :GB9254-2008,GB17625.1-2012, GOST(Russia/CIS) : GOST R 51317 Series,GOST 22505-97,EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003

  • Environment

    N/A

  • Safety

    CB (Europe) : IEC60950-1/EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1, NOM (Mexico ) : NOM-001-SCFI-1993, IRAM (Argentina ) : IRAM+IEC60950-1, SASO (Saudi Arabia ) : SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, NOM(Mexico) : Tunerless : NOM-019-SCFI-1998, KC(Korea) : K 60950-1, EAC(Russia) : EAC+IEC60950-1, INMETRO(Brazil) : INMETRO+IEC60950-1, BSMI(Taiwan) : BSMI+IEC60950-1, RCM(Australia) : IEC60950-1/AS/NZS 60950-1, CSA (Canada) : cUL, UL(USA) : cUL60950-1, TUV (Germany) : CE, NEMKO (Norway) : CE

Accessories

  • Included

    Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
