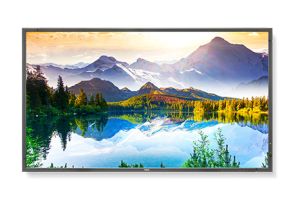

90" LED Backlit Commercial-Grade Display
MODEL: E905
NEC's 90" Large Screen E905 delivers a cost-effective solution while maintaining the extensive feature set and high visual quality that's expected with a commercial grade display. With its extremely large size, full external control and expanded connectivity, this display is the ideal solution for all boardroom, conference room and meeting room type of applications.
- Full bi-directional external control via both RS232 and LAN
- Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA connections
Technologies
1080p native resolution (1920x1080)
High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.
Advanced Cooling System
Prevents the likeliness of image retention and improves color uniformity.
Built-In Expansion Slot
Allows for seamless integration of current and future NEC accessories and third-party components.
Built-In Speakers
Enhance the visual experience with superior sound
Carbon Footprint Meter
Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.
Input Switching Speed
Multiple settings for input switching speed. Select among “normal, quick or super” settings. If multiple sources are used and visible waiting times with black screens would impact viewing, the fast input switching can be convenient and avoid distraction
Product Specifications
| Display |
| |
| |
| |
| |
| Panel Technology |
UVA |
| |
| Viewable Image Size |
90" |
| |
| Native Resolution |
1920 x 1080 |
| |
| Pixel Pitch |
1.04mm |
| |
| Backlight Type |
LED Direct-lit |
| |
| Pixels Per Inch |
24.48 |
| |
| Brightness (typical) |
280cd/m2 |
| |
| Brightness (maximum) |
350cd/m2 |
| |
| Contrast Ratio (typical) |
5000:1 |
| |
| Viewing Angle |
176 Vert., 176 Hor. (88U/88D/88L/88R) @ CR>10 |
| |
| Response Time(Gray to Gray) |
4ms |
| |
| Refresh Rate |
60Hz |
| |
| Aspect Ratio |
16:9 |
| |
| Active Screen Area |
78.5 x 44.1 in. / 1993.0 x 1121.0 mm |
| |
| Orientation |
Landscape |
| |
| Displayable Colors |
More than 1 billion |
|
| Synchronization Range |
| |
| |
| |
| |
| Horizontal (Analog/Digital) |
15.625 / 15.734 / 26.973 / 28.125 / 31.5-91.1 kHz |
| |
| Vertical |
24/25/30/50 - 85.0Hz |
|
| Input Signal |
| |
| |
| |
| |
| Video |
Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort |
| |
| Sync |
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
|
| Connectivity |
| |
| |
| |
| |
| PC Signal Compatibility |
Yes |
| |
| Macintosh Compatibility |
Yes |
| |
| Input Terminals |
|
|
| Digital |
DisplayPort, HDMI (2), DVI |
| |
| Analog |
VGA 15-pin D-sub |
| |
| Audio |
Audio Mini-Jack x 2 |
| |
| External Control |
Ethernet (RJ45), RS-232C |
| |
|
| |
|
| Output Terminals |
|
|
| Audio |
Audio Mini-Jack, External Speaker Jack (2) |
|
|
|
| Power Consumption (typical) |
| |
| |
| |
| |
| On |
270W |
| |
| ECO Mode Standby |
<2.5W |
| |
|
| |
| |
| Power Consumption |
| |
| |
| |
| |
| Input Current |
4.8A @ 100-120V; 2.0A @ 220-240V |
| |
|
| |
| |
| Physical Specifications |
| |
| |
| |
| |
| Bezel Width (Left/Right, Top/Bottom) |
1.2/1.2, 1.2/1.2 in. / 29.7/29.7, 29.7/29.7mm |
| |
| Dimensions (WxHxD) |
|
|
| Net (with stand) |
81.0 x 48.2 x 23.9 in. / 2058.4 x 1223.6 x 606.0mm |
| |
| Net (without stand) |
81.0 x 46.7 x 4.9 in. / 2058.4 x 1186.4 x 123.2mm |
| |
| Shipping |
93.1 x 59.1 x 17.7 in. / 2366.0 x 1502.0 x 450.0mm |
| |
|
| |
|
| Weight |
|
|
| Net (with stand) |
188.7lbs. / 85.6 kg |
| |
| Net (without stand) |
178.6lbs. / 81.0kg |
| |
| Shipping |
225.8lbs / 102.4kg |
|
|
|
| VESA Hole Configuration Specifications |
| |
| |
| |
| 400 x 400mm |
| |
| |
| Environmental Conditions |
| |
| |
| |
| |
| Operating Temperature |
32-104F / 0-40C |
| |
| Operating Humidity |
20-80% |
| |
| Operating Altitude |
9843ft. / 3000m |
| |
| Storage Temperature |
-4-140F / -20-60C |
| |
| Storage Humidity |
10-90% |
| |
| Storage Altitude |
40,000 ft. / 12,192m |
|
Limited Warranty (parts & labor, including backlight): 3 years
| Additional Features |
| |
| |
| |
- Integrated Temperature Sensors
- Thermodynamic Cooling Fans
- Ethernet control and communication
- RS-232Control and communication
- AMX Beacon Compatible, Crestron Connected Compatible
- Full 24/7 Scheduler
- OPS expansion slot
- Custom Input Detect Options
Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function
|
| Ships With |
| |
| |
| |
- Power cord
- 1.8m DVI-D cable
- Wireless remote control
- Batteries
- CD-ROM (user manual)
- Option board slot cover
- Screws
- Thumbscrews
|
Accessories
| Optional |
|
|
| NEC |
- Table Top Stand (ST-801)
- Optional Side-Mounted 15W Speakers (SP-TF1)
- Optional Rear-Mounted 15W Speakers (SP-RM1)
- Optional Tilt Wall mount (WMK-6598)
- OPS HDBaseT Receiver Module (SB-07BC)
- OPS HD-SDI Module (SB-01HC)
|
|
|
