Epson EB-585W


Ultra Short Throw Projectors

The ultimate ultra short-throw projector for classroom collaboration

Overview

The EB-585W ultra-short-throw projector redefines collaborative learning. Engineered for today's BYOD classroom, it features widescreen WXGA resolution, plus advanced network connectivity and wireless performance, making it easier than ever to share engaging, larger-than-life lessons. Offering 3x Brighter Colours* than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. Featuring 3300 lumens of colour brightness1 and 3300 lumens of white brightness1, the EB-585W delivers truly dynamic images. And, it includes Moderator software2, so you can easily share and compare students' work from multiple devices, simultaneously.

Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Moderator feature is part of Epsons EasyMP Multi PC Projection software.

Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

KEY FEATURES & BENEFITS

  • Brighter images Now with up to 3,300 lumens white brightness and colour brightness.
  • Longer lamp life Up to 6,000 hours# lamp life in ECO mode.
  • Higher contrast ratio Now with 10,000:1 across the entire range.
  • Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android  mobile devices.
  • Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
  • Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
  • New projector control tool bar Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
  • No driver installation required Installation has never been easier (driver installation is required for Mac).
  • Advanced Networking Capability Enables users to monitor, control and present from a remote location.
  • Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
  • 16W Built-in Speaker Built in audio with the power to fill the room.

Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.

Ultra Short Throw Models - Range at the glance
Model
EB-580
EB-580e
EB-575W
EB-575We
EB-585W
EB-585We
White Light Output
3,200 lumens
3,200 lumens
2,700 lumens
2,700 lumens
3,300 lumens
3,300 lumens
Colour Light Output
3,200 lumens
3,200 lumens
2,700 lumens
2,700 lumens
3,300 lumens
3,300 lumens
Display Technology
3LCD
3LCD
3LCD
3LCD
3LCD
3LCD
Native Resolution
XGA
XGA
WXGA
WXGA
WXGA
WXGA
Aspect Ratio
4:3
4:3
16:10
16:10
16:10
16:10
Contrast Ratio
10,000:1
10,000:1
10,000:1
10,000:1
10,000:1
10,000:1
Network Functionality
YES
YES
YES
YES
YES
YES
Wireless LAN
Optional
Optional
Optional
Optional
Optional
Optional
HDMI Connectivity
x2 (x1 supports MHL)
x2 (x1 supports MHL)
x2 (x1 supports MHL)
x2 (x1 supports MHL)
x2 (x1 supports MHL)
x2 (x1 supports MHL)
Speakers
16W
16W
16W
16W
16W
16W
Integrated Mount Included
YES
YES
YES
YES
YES
YES
Zoom Ratio
1.35x (Digital)
1.35x (Digital)
1.35x (Digital)
1.35x (Digital)
1.35x (Digital)
1.35x (Digital)
Education Model
-
YES
-
YES
-
YES
Low Cost Replacement Lamp
Lamp Hours
4,000 (Normal), 6,000 (ECO)
4,000 (Normal), 6,000 (ECO)
5,000 (Normal), 10,000 (ECO)
5,000 (Normal), 10,000 (ECO)
4,000 (Normal), 6,000 (ECO)
4,000 (Normal), 6,000 (ECO)

Basic Functions

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.

3LCD Technology

Up to 3x Brighter with Epson Projectors

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

3x Brighter Colours with Epson*

Higher Brightness

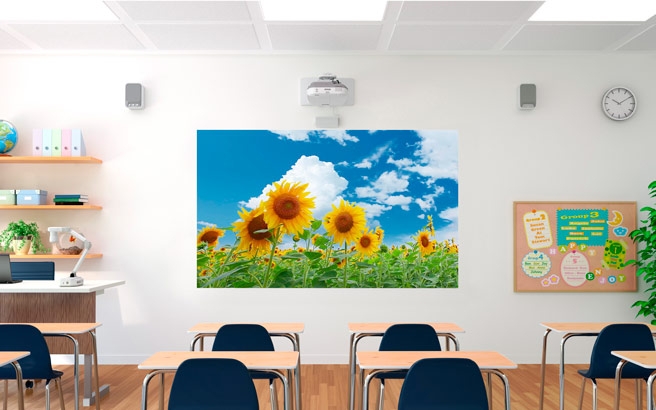

With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.


Ultra Short Throw Benefits

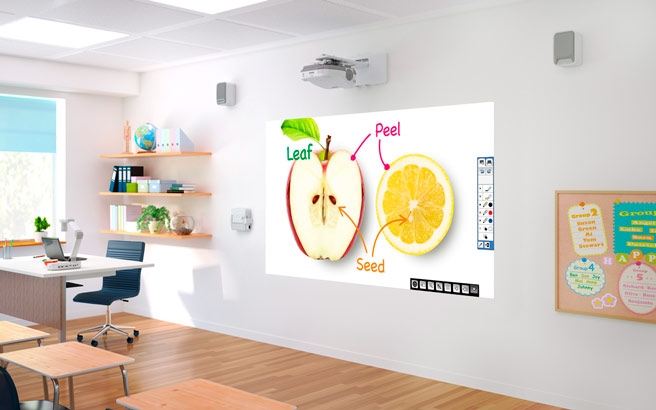

Bigger Image

The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.


Significantly Reduced Shadow Interference

You no longer need to worry about obscuring the information on screen with shadows cast by your body.



Classroom Friendly Design

These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.

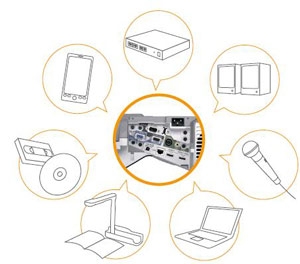

Wide Ranging Interface

Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.

One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.


Mobile Device Compatibility

Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.

Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.



EASY INSTALLATION AND MAINTENANCE

Cloning Function

When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.


Easy Installation and Adjustment

Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.


Lamp Regulator Function

This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

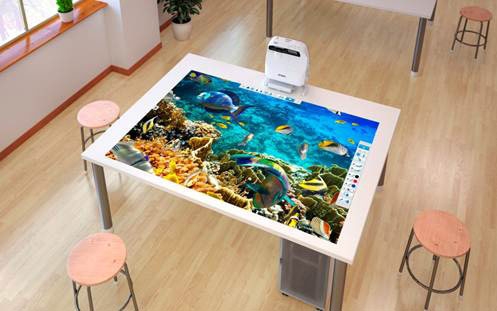

Table Top Projection

These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.


Longer Lamp Life

The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.


Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.

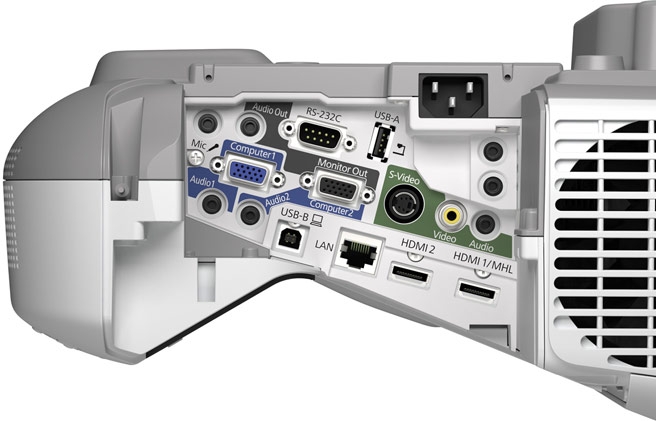

Connectivity Panel

Specifications:
PRODUCT NAME Epson EB-585W
PRODUCT CODE V11H602053
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.59-inch with MLA
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance) 60" to 100" [34.8 to 59.7cm]
74.3" screen 43.8 cm
Throw Ratio 0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 1.80
Projection Lens Focal Length 3.71mm
Focus Method Manual Focus
Offset 6.0:-1
White Light Output 3,300 lumens
Colour Light Output 3,300 lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 10,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Video I/O - Input Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video
Video I/O - Output Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only
Digital Input Digital: 2x HDMI (1 supports MHL)
Audio I/O - Input 3x Stereo mini
Audio I/O - Output 1x Stereo mini
Mic I/O - Input 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
USB I/O 1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit)
Wireless Connectivity Optional ELPAP07 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
EasyMP Network Projection Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Firmware update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Security * Kensington  - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Theatre
Integrated Mount included Yes
GENERAL
Dimensions (excl feet) WxDxH 367 x 375 x 155mm
Weight 5.3kg
Lamp Warranty 1 Year (or 750 hours)*
Projector Warranty 3 Years
Lamp Hours 4,000 hours (Normal)
6,000 hours (ECO)
Lamp Type 245W UHE
Power Consumption: Lamp On 358W (Normal)
270W (ECO)
Power Consumption: Networked Standby 4.3W
Power Consumption: Energy Saving 0.44W
Air Filter maintenance cycle up to 5000 hours
Fan Noise Level Power consumption Normal: 35dB
Power consumption ECO: 28dB

* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Power Cable Yes 5M
Password Protect sticker YES
Remote Control YES
Battery for Remote Control AA x 2
Setting Plate YES

PRODUCT OPTIONS Item Code Description
  V13H010L80 ELPLP80 Lamp 245W UHE for EB-580/580e/585W/585We/585Wi/595Wi/595Wie
  V13H134A40 ELPAF40 Air filter
  V12H003P13 ELPFP13 Extension pole/suspension adaptor
  V12H003P14 ELPFP14 Extension pole/suspension adaptor
  V12H516040 ELPMB29 Table mount
  V12H525001 ELPKC31 USB extension cable
  V12H418P13 ELPAP07 USB Wireless LAN adaptor
  V12H005M09 ELPAP09 USB Quick wireless USB key
