Frio Silent 14
Thermaltake new Frio Silent Series - Frio Silent 14, another CPU cooler with non-interference cooling design for the use of high performance RAM and motherboards, 140mm fan silently enhance air flow to aid in performance. Fully compatible with RAM of all kinds, ideally for power users to fill their RAM slots with high-end overclocked RAM.
Non-Interference Cooling Design

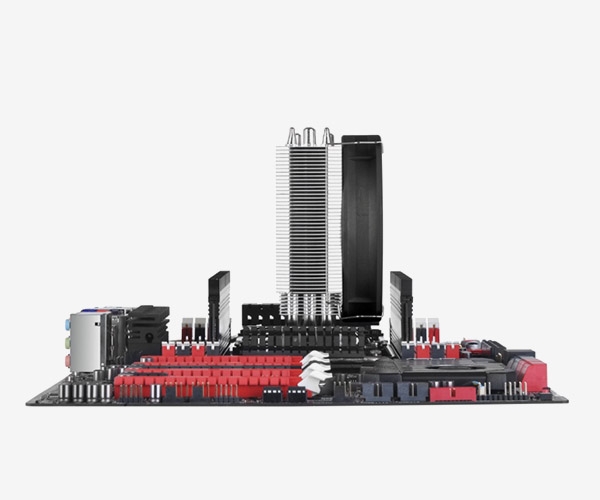

Frio Slient 14 solves the co-existing problem on high performance RAM and CPU coolers, it achieves the best RAM clearance allowing user easily install high-end overclock RAM with coolers.
Performance Optimized Design

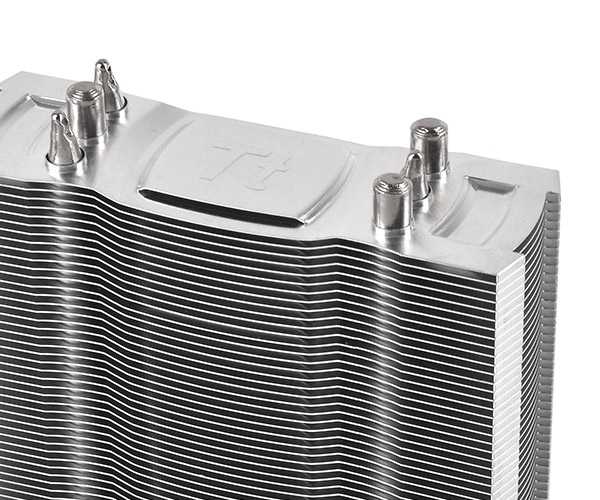

Optimized 0.4mm aluminum fins are designed not only for distinctive looks but also for rapid heat dissipation. Tower side flow design optimizes the cooling performance.
Heat Conductivity

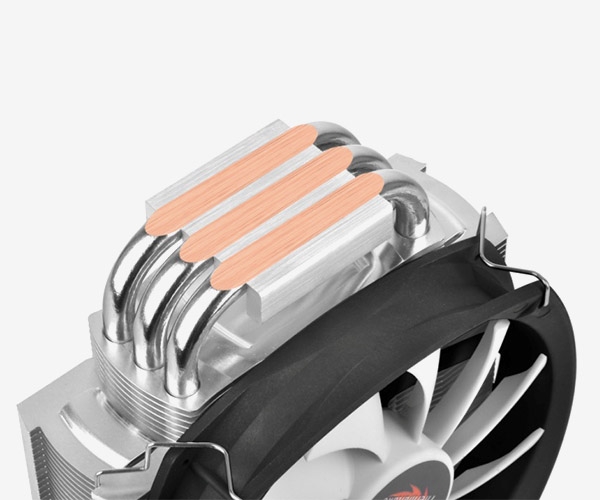

3 x 8mm solid cooper heat-pipes dissipate heat effectively allowing maximum heat conductivity. Heat-pipes are in Direct Contact with the CPU to ensure fast and efficient heat dissipation.
PWM and LNC in One
A 140mm PWM fan is fitted to enhance air flow to produce impressive cooling performance up to 1200RPM. LNC (Low Noise Cable) can reduce 38% noise level from 19.3 dBA to 12 dBA.
Universal Socket Compatibility
Support all latest Intel and AMD platform, including Haswell LGA1150
Specifications
| P/N |
CL-P002-AL14BL-B |
| Compatibility |
Intel LGA 2011/1366/1155/1156/1150/775
AMD FM2/FM1/AM3+/AM3/AM2+/AM2
|
| Heatsink Dimension |
160H*150W*40L mm |
| Heatsink Material |
Aluminum Fins Copper Heatpipes |
| Heatpipe |
8mm x 3 pcs |
| Fan Dimension |
140 x 140 x 25 mm(L xW x H) |
| Fan quantity |
1pcs |
| Fan Speed |
500~1200 RPM
300~700 RPM ( with LNC )
|
| Rated Voltage |
12V |
| Start Voltage |
8 V |
| Rated Current |
0.4 A |
| Power Input |
5.76 W |
| Air Flow |
71.24 CFM |
| Air Pressure |
1.13 mm-H2O |
| Noise |
19.3 dBA
12 dBA ( with LNC )
|
| Life time/Fan Life time |
50,000 hours |
| Fan control |
PWM + LNC (Low-Noise Cable)
58 % fan speed and 38% noise can be reduced
|
| pin connect |
4 pin PWM |
| Cooling Power |
165 W |
| Weight |
620g |
