TP-Link EAP220 N600 Wireless Gigabit Ceiling Mount Access Point

IMG 1 of 1
No Longer Available
Part Number:
396424
(?) Brand:
TP-Link
Manuf No:
EAP220
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/7/2015
Details Files Images & Video
All stock codes associated to this product
EAP220, TLEAP220, TL-EAP220, 6935364071851
N600 Wireless Gigabit Ceiling Mount Access Point

EAP220

  • EAP Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Power over Ethernet802.3affor convenient and affordable installation
  • Simple mounting design to easily mount to a wall or ceiling
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring


Business Class

Ceiling Mount Access Point with PoE

EAP220/EAP120


Kensington Security Slot

Standard PoE

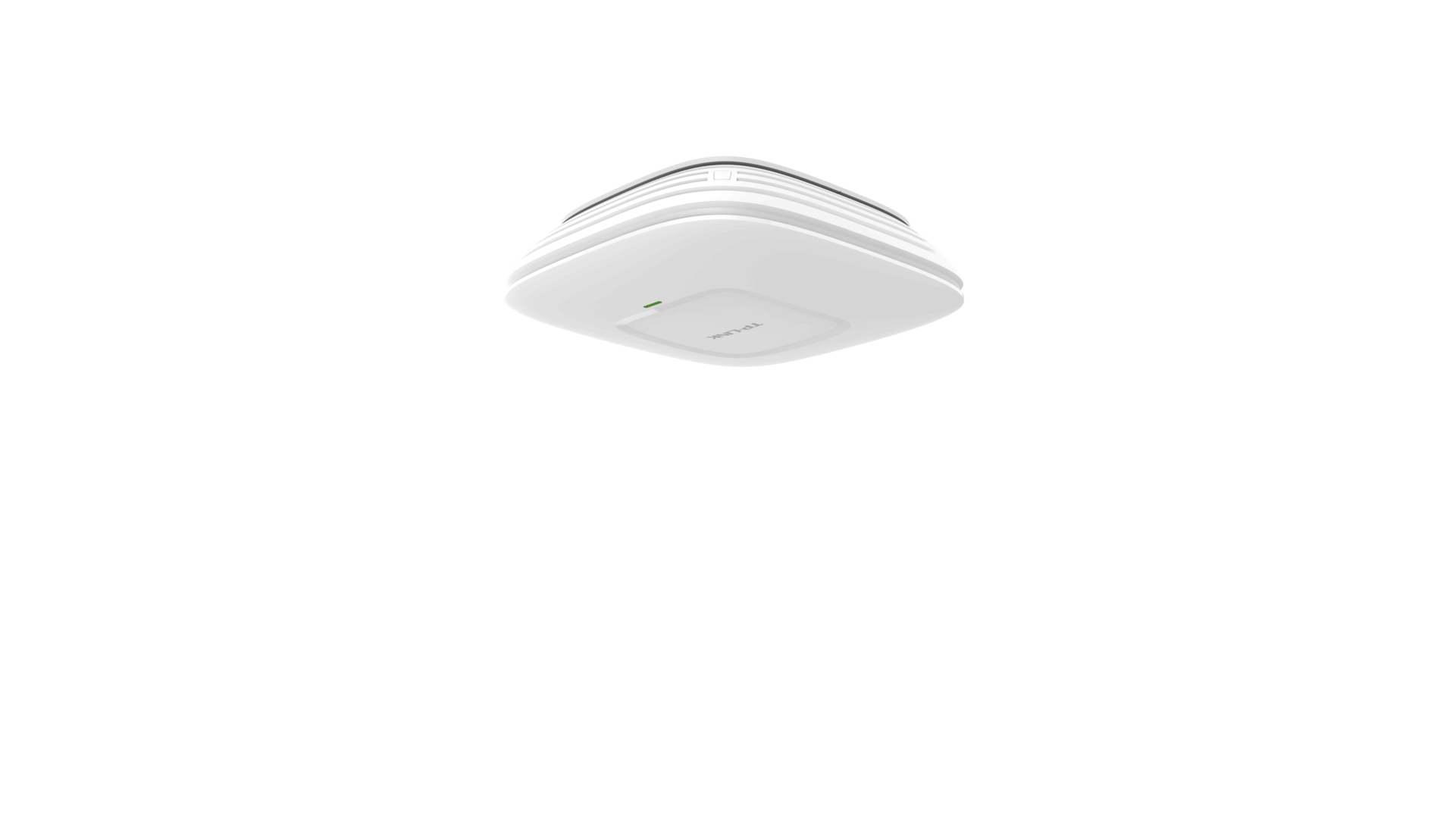

Flexible Placement Easy mounting design & PoE

The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.

Compact Design

Flexible Deployment

PoE IEEE 802.3af

Business Class Wireless

Powerful Hardware

  • EAP features 802.11n Wi-Fi and 2*2 MIMO technology - EAP220 supports simultaneous dual band in 2.4 and 5GHz for 600Mbps wireless speeds
  • EAP120s wireless speeds of up to 300Mbps
  • Gigabit Ethernet port ensures high speed Internet access
  • With Qualcomm Atheros 560MHz chipsets, EAP ensures incredible wireless coverage and reliability

2.4GHz & 5GHz
Dual Band

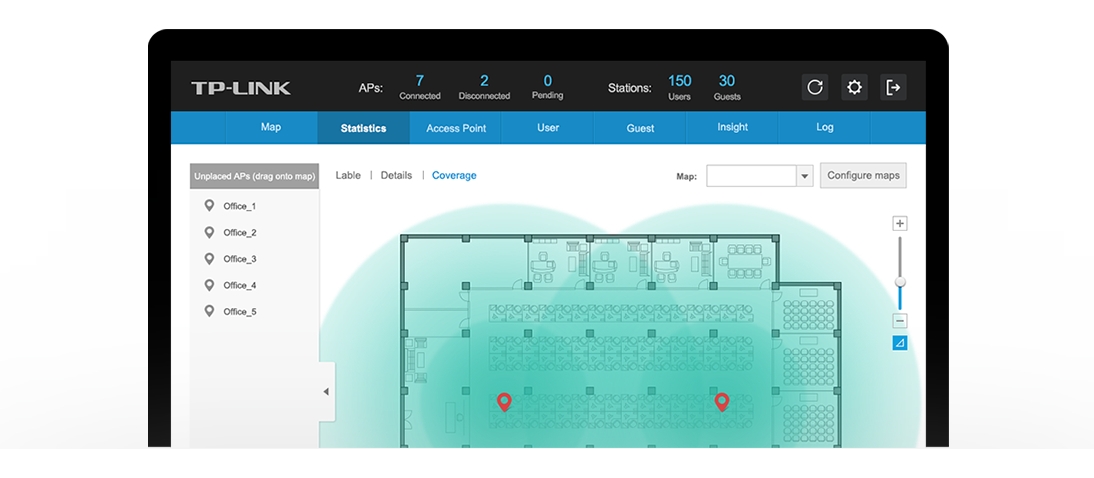

Centralized Wi-Fi Management

Management Software

The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.

Efficient Guest Authentication Captive Portal

Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Applicable to Multi-user Environment

Designed for Business Performance

With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.

Compatibility

EAP220 compatible with 802.11 a/b/g/n products and EAP120 supports
802.11 b/g/n products

Load Balance

Load balance ensures large numbers of users have smooth network experiences in large business networks
Multiple Operating Modes

Multiple operating modes satisfy different application conditions including Managed AP and standalone AP modes

LSOH Material

Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance

Dustproof design

Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.
Quality of Service (QoS)

Prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic

EAP Series EAP110 EAP120 EAP220
Product 300Mbps Wireless N
Access Point		 300Mbps Wireless N
Gigabit Access Point		 N600 Wireless
Dual Band Gigabit Access Point
Wireless Standards IEEE 802.11 n/b/g IEEE 802.11 n/b/g IEEE 802.11 n/b/g/a
Speed 2.4GHz : 300Mbps 2.4GHz : 300Mbps 2.4GHz : 300Mbps
5GHz : 300Mbps
Ethernet Port 10/100Mbps Port*1 Gigabit Port*1 Gigabit Port*1
PoE Passive PoE 802.3af 802.3af
Internal Antennas 2 * 3dBi 2 * 4dBi 4 * 4dBi
Cluster -
Max. APs in one Cluster - 24 24
Multiple SSIDs 8 8 16
Captive Portal
MAC Filtering
Wireless Schedule
Rogue AP Detection
Automatic RF Management

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
