GP-101IT

IEEE 802.3at Gigabit PoE+ Injector

  • Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards.
  • Adds PoE capability to a non-PoE Ethernet switch or router.
  • Gigabit LAN ports provide high-speed connectivity.
  • Supports PoE PSE (Power Sourcing Equipment) devices up to 30W.
  • PoE short circuit protection to safeguard network devices.
  • Delivers power and data to PoE devices up to 100 meters (328 feet) over a single Ethernet cable.
  • Reduces installation and equipment costs.
  • Easy plug-and-play desktop or wall-mounted installation.

The Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches.

IEEE 802.3at/af Power over Ethernet Standard


Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.

Higher Cost Efficiency and Easy Installation


The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-101IT reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.

Flexible & Reliable Power Supply

Featuring PoE short circuit protection to safeguard network devices and protect against damage.

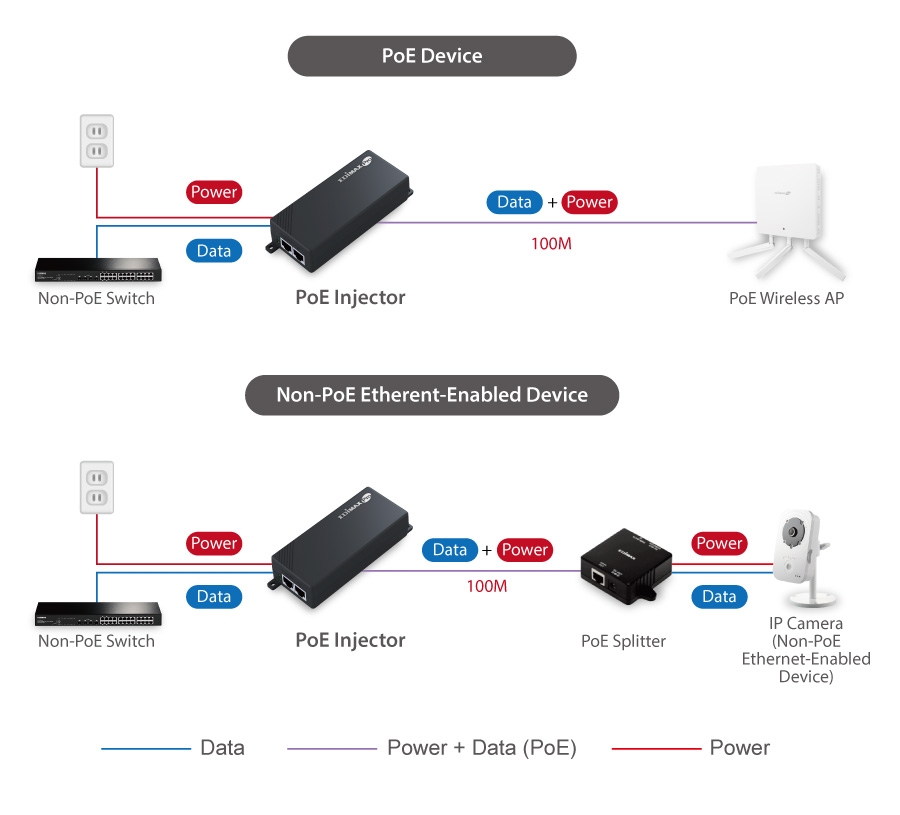

APPLICATION DIAGRAM

Edimax GP-101IT Gigabit PoE Injector 802.3at, 802.3af application diagram

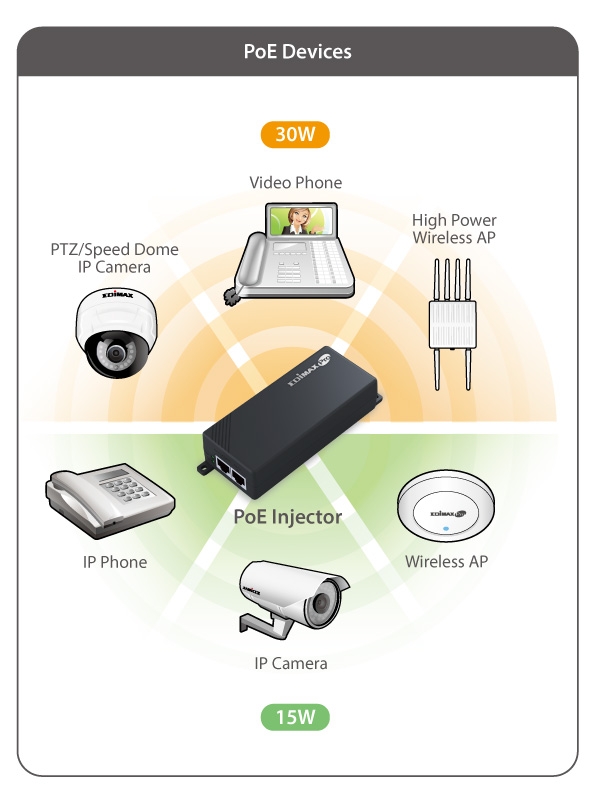

Edimax GP-101IT Gigabit PoE Injector 802.3at, 802.3af application diagram PoE devices

SPECIFICATIONS


HARDWARE
Ports 1 Port RJ-45 10/100/1000Base-T Input Port
1 Port RJ-45 10/100/1000Base-T PoE Output Port
LED Indicators Power and AC
Power Input 100-240V AC, 50-60 Hz, 0.6A
Power Consumption 30 Watts
Dimensions (L x W x H) 155 x 58 x 36 mm
Weight 185g
POWER OVER ETHERNET
Standard IEEE802.3af and IEEE802.3at
Power Output DC53V/0.55A
Pin Assignment 1/2(+), 3/6(-) End-Span
ENVIRONMENT
Temperature Operating: 0 ~ 40
Storage: -40 ~ 70
Humidity (Non-condensing) Operating: 10 ~ 90%
Storage: 5 ~ 90%
STANDARDS COMPLIANCE
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications FCC, CE

PACKAGE CONTENTS

  • GP-101ITPoE Injector
  • One Power Cord
  • Quick Installation Guide

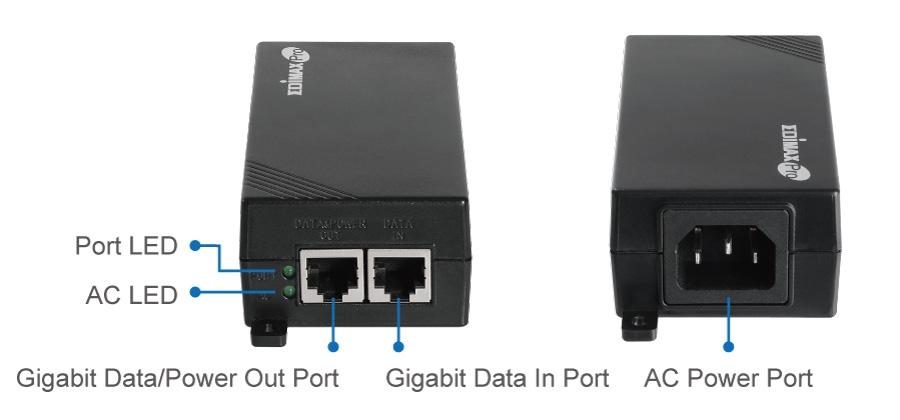

HARDWARE INTERFACE

Edimax GP-101IT Gigabit PoE+ injector

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
