All stock codes associated to this product
MFCJ5720DW, MFC-J5720DW, MFC-J5720DW , 4977766737364

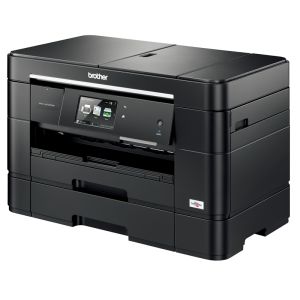

MFC-J5720DW
Colour Inkjet MFC
MFC-J5720DW | Colour Inkjet MFC
Brothers Business Inkjet MFC-J5720DW is an A4 Multi-Function Centre that offers A4 scan, copy and fax functions, 50-sheet ADF and A3 print capability via either of the two 250-sheet size adjustable paper trays or versatile rear multi-purpose tray. With high print speeds of up to 22/20ppm monochrome/colour (laser comparable), 2-sided (duplex) printing, low cost per page super high-yield Ink (Up to 2,400 pages in black), a direct connection to cloud services and mobile devices offering easy collaboration both in and away from the home or office, the MFC-J5720DW is the business
| ADF: |
Up to 50 sheets |
| Print Speed: |
22/20 ipm (Mono/Colour: based on ISO/IEC 24734) |
| 2 Sided Print: |
Yes (Automatic) |
| Interface: |
Hi-Speed USB 2.0, 10Base-T/100Base-TX Ethernet and IEEE 802.11b/g/n Wireless, Wi-Fi Direct |
| 2 Sided Scan: |
Yes |
| Direct Print USB: |
Yes |
| Airprint: |
Yes |
| Emulation: |
GDI |
| Warranty: |
12 Months Return To Base
Warranty Information |
Features:
- Print/Copy/Scan/Fax
- Up to 22 monochrome / 20 colour ppm (laser comparable) print speed
- A4/A3 paper input (Standard Paper Tray/Manual Feed Slot)
- A3 Print / 2-Sided (duplex) A4 print
- 50-sheet ADF with single pass 2-sided (duplex) scan
- Cloud / Mobile device connectivity
- 9.3cm colour touchscreen LCD
- 250-sheet paper tray + second 250-sheet tray (Up to A3)
- Rear multi-purpose tray (80-sheets A4 or 5-sheets A3)
- Low Cost Per Page with super high-yield Ink (Up to 2,400 pages black)
- Wired and wireless network connectivity + Wi-Fi Direct
- Brother Solutions Interface (BSI) Support
Specifications:
General
- ModelMFC-J5720DW
- Number of Functions6 in 1
- EngineColour Inkjet
- FunctionsColour Inkjet Printer, Colour Fax, Flatbed Digital Copier, Duplex Flatbed Colour Scanner, PhotoCapture Centre, PC-Fax
- Backup For ClockYes
- LDAPYes
- Standard Memory256MB
Display
- LCD Display9.3cm Panel TFT TouchScreen Colour LCD
Printer
- EmulationGDI
- Print Speed22/20 ipm (Mono/Colour: based on ISO/IEC 24734)
- Print Speed (4x6)Up to 15 Seconds
- CPU Speed288MHz
-
Printer ResolutionUp to 1200x6000 dpi
-
Printer CompatibilityWindows 8 (32&64bit), Windows 7 (32&64bit), Vista (32&64bit), XP Home Edition, XP Professional (32&64bit), Windows Server 2012 (32&64bit), Windows Server 2008 (32&64bit), Windows Server 2008 R2, Windows Server 2003 (32&64bit) (All server Operating Systems are print only)
Mac OS X 10.7.5 or greater
Linux Cups/LPR
-
2 Sided PrintYes (Automatic)
-
First Print Out TimeSee Print Speed
-
Warm Up Time0 Seconds
-
Printer Driver FunctionsN in 1, Auto Duplex (Windows/Mac)
-
Poster, Header-Footer, Watermark, Booklet (Windows Only)
-
Quiet ModeYes
-
Borderless PrintingYes
Paper Handling
- Standard Paper CapacityUpper Tray: Up to 250 Sheets
Lower Tray: Up to 250 Sheets
- Multi-Purpose Tray CapacityUp to 80 Sheets (A4) or 5 Sheets (A3) from the rear
- Manual Feed Slot1 Sheet from the rear
- Output Paper CapacityUp to 50 sheets
- ADFUp to 50 sheets
- Media Weights Paper TrayUpper Tray: 64 - 220 gsm
Lower Tray: 64 - 120 gsm
- Media Weights MP Tray64-220 gsm
- Media Weights Manual Feed Slot64-220 gsm
- Media Weights ADF64 - 90 gsm
- Media Weights Duplex64 - 120 gsm
- Media Size Paper TrayLandscape: A4, LTR, EXE
Portrait: A3, LGR, LGL, A5, A6, Photo(102x152mm/4x6inch), Indexcard(127x203mm/5x8inch), Photo-L(89x127mm/3.5x5inch), Photo-2L(127x178mm/5x7inch), C5, Com-10, DL Envelope, Monarch
- Media Size MP TrayLandscape: A4, LTR, EXE
Portrait: A3, LGR, LGL, Folio, A5, A6, Photo(102x152mm/4x6inch), Indexcard(127x203mm/5x8inch), Photo-L(89x127mm/3.5x5inch), Photo-2L(127x178mm/5x7inch), C5, Com-10, DL Envelope, Monarch
- Media Size Manual Feed SlotLandscape: A4, LTR, EXE
Portrait: A3, LGR, LGL, A5, A6, Photo(102x152mm/4x6inch), Indexcard(127x203mm/5x8inch), Photo-L(89x127mm/3.5x5inch), Photo-2L(127x178mm/5x7inch), C5, Com-10, DL Envelope, Monarch
- Media Size ADFWidth 148 to 216 mm, Length 148 to 355 mm (simplex)
- Media Size DuplexPC Print: A4, LTR, EXE, A5
Copy: A4, LTR, A5
- Media Size Scanner GlassUp to 216(W)/297(L)mm
- Media Types Paper TrayUpper Tray: Plain, Inkjet, Glossy(cast/resin - Not A3, LGR, LGL)
Lower Tray: Plain
- Media Types MP TrayPlain, Inkjet, Glossy(cast/resin)
- Media Types Manual Feed SlotPlain, Inkjet, Glossy (cast/resin)
- Media Types ADFPlain
- Media Types DuplexPlain
Digital Copier
- Copier Speed12/9 ipm (Mono/Colour: based on ISO/IEC 24735)
- Copier ResolutionMono: (Print) Max. 1200x2400 dpi, (Scan) Max. 1200x1200 dpi
Colour: (Print) Max. 1200x2400 dpi, (Scan) Max. 1200x1200 dpi
- Reduction-Enlargement Ratio25 - 400 percent in 1 percent increments
- Copier N-in-12 in 1, 2 in 1(ID) (A4/A3/LTR/LGR) & 4 in 1(A4/LTR)
- Copier PosterYes (3x3, 2X2, 1x2)
- Copier Multi SortYes
- Copier Multi StackUp to 99 copies
- First Copy Out Time18 sec (based on ISO/IEC 24735 Annex D)
- 2 Sided CopyYes (5/5 ipm) Duplex to Duplex
Fax
- Modem Speed33,600bps (Fax)
- Transmission SpeedApprox: 3sec (ITU-T Test Chart,MMR)
- 2 Sided FaxSend/Receive
- Display FaxSend/Receive
- Colour FaxingDocument Send/Receive: Yes/Yes
Memory Send/Receive: No/Yes
- ITU-T Group compatibilitySuper G3
- Telstra Duet CompatibleYes
- Memory BackupWith Flash memory
- Automatic RedialYes
- Speed Dials100x2 locations
- Group DialsUp to 6 groups
- Telephone IndexYes
- Station ID20 digits / 20 characters
- Caller IDYes
- Fax Grey ScaleMono:256, Colour:256 levels
- Out of Paper ReceptionUp to 200 pages (ITU-T Test Chart)
- Broadcasting250 locations (200+50)
- Batch TransmissionYes (B&W only)
- Automatic ReductionYes
- Fax ForwardingTo Fax number
- Speaker/Ring volume adjustment3 steps plus OFF
- Memory TransmissionUp to 200 pages (ITU-T Test Chart)
Fax Features
- PC FaxSend/Receive from Windows
Send only from MAC / Linux
(Network / USB)
- Network PC FAXSend/Receive from Windows
Send Only MAC/Linux (USB/LAN)
- Internet FaxYes - T37 protocol (Download Firmware from Brother Solutions Centre)
Digital Scanner
- Scanner Colour/MonoColour
- Scanner Colour Depth48 bit input / 24 bit output colour
- Scanner TypeFlatbed Digital
- Scanning TechnologyDual CIS
- Scan SpeedSimplex: Max.3.37/3.37 sec
Duplex: Max.3.37/3.37 sec
Mono/Colour @100dpi (A4)
- Scanner Resolution (Optical)From Glass: Up to 2400 x 2400 dpi
From ADF: Up to 2400 x 1200 dpi
- Scanner Resolution (Interpolated)For Win XP/Vista/7/8, up to 19200x19200 dpi with Scanner Utility
- 2 Sided ScanYes
- Scanning AreaFlatBed: 214(W) x 295(L)mm
ADF: 214(W) x 353(L)mm
- Scanner Grey Scale256 levels
- Scan to KeysScan To: Email Client /Email Server(with web download)/ OCR/ Image/ File/ FTP/ Media/ Sharepoint/ Network
- Scanner CompatibilityWindows 8 (32&64bit), Windows 7 (32&64bit), Vista (32&64bit), XP Home Edition, XP Professional (32&64bit)
Mac OS X 10.6 or greater
Linux rpm/deb
- Twain CompliantWindows: TWAIN or (WIA for XP/Vista/Windows7/Windows8)
Mac: TWAIN
Linux: SANE
PhotoCapture Centre
- PictBridgeYes
- Digital-Media TypeMemory Stick Duo, Memory Stick Pro Duo/Micro, Secure Digital(SD)/(SDHC)/(SDXC), MultiMedia Card (Plus,Mobile), USB Flash Memory
- Digital-Media SpecMemory Stick Duo:16MB-128MB
Memory Stick Pro Duo/Micro: 256MB-32GB
Secure Digital(SD): 16MB-2GB (miniSD, miroSD with Adapter)
Secure Digital(SDHC):4-32GB (miniSDHC, miroSDHC with Adapter)
Secure Digital(SDXC):48-128GB
MultiMedia Card: 32MB-2GB
MultiMedia Card Plus: 128MB-4GB
MultiMedia Card Mobile: 64MB-1GB (with Adapter)
USB Flash Memory: Up to 64GB
- Image Format-Media CardPhoto Print: JPEG,avi,mov
Scan to Card/USB: JPEG/PDF (colour), TIFF/PDF (B&W)
- Direct Print USBYes
- Removable Media Card/USB memoryRead & Write to both Card & USB memory
Software
- Software IncludedWindows: Printer Drivers, Status Monitor, BRAdmin Light, Driver Deployment Wizard
Mac: (Download above software for Mac from Brother Solutions Centre)
Connectivity
- InterfaceHi-Speed USB 2.0, 10Base-T/100Base-TX Ethernet and IEEE 802.11b/g/n Wireless, Wi-Fi Direct
- Network Interface Wired10Base-T/100Base-TX Ethernet
- Network Interface WirelessIEEE 802.11b/g/n Wireless
- Wi-Fi DirectYes
- iPrintScanYes
- AirprintYes
- Web ConnectScan To - Download and Print from Picasa, Flickr, Facebook, Google Drive, Evernote, Dropbox, Box, OneDrive, Brother Apps.
Print from Creative Centre
- Google Cloud PrintYes
- Brother AppsOffice Doc Creator, Outline&Scan, Outline&Copy, NoteScan
Networking
- Wireless InterfaceYes
- Wireless ModeIEEE 802.11b/g/n (Infrastructure Mode/Adhoc mode)
- Wireless SecuritySSID (32 chr), WEP 64/128bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
**NO LEAP**
- Network Protocols IPV4ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client and Server, SNMPv1/v2c, TFTP server, SMTP Client, ICMP, Web Services (Print/Scan), CIFS Client, SNTP Client, POP3, IMAP4, HTTP Server
- Network Protocols IPV6NDP, RA, mDNS, LLMNR Responder, DNS Resolver, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client/Server, SNMPv1/v2, TFTP server, Web Services (Print/Scan), SMTP Client, POP3, CIFS Client, SNTP Client, IMAP4, ICMPv6, HTTP Server
- Network ManagementWindows: BRAdmin Light, Web Base Management, BRAdmin Professional, Network Remote Setup
Mac: BRAdmin Light, Web Base Management, Network Remote Setup
Linux: Web Base Management
- Network ScanYes (Windows / Mac)
- Network MediaRead & Write to both Card & USB memory
- Email AlertsE-mail Notification and Reports
- Secure Function LockYes
- Optional PaperBP-71GA3 - 20 Sheets (260gsm) Glossy Paper (A3), BP-71GLA - 20 Sheets (260gsm) Glossy Paper (A4), BP-71GLP - 20 Sheets (260gsm) Glossy Paper 6in x 4in, BP-60MA3 - 25 Sheets (145gsm) Matte Paper (A3), BP-60MA - 25 Sheets (145gsm) Matte Paper (A4), BP-60PA3 - 250 Sheets (72.5gsm) Plain Paper (A3), BP-60PA - 250 Sheets (72.5gsm) Plain Paper (A4)
Consumable
- ConsumablesLC233 C/M/Y/K up to 550 pages each (Std), LC235 C/M/Y up to 1200 pages each (HY), LC239 BK up to 2400 pages each (SHY)
Based @ ISO 24711 pattern/normal
- Inbox ConsumablesLC233 C/M/Y/K up to 550 pages each
Based @ ISO 24711 pattern/normal
Weight and Measures
- Size490(W) x 345(D) x 308(H)mm
- Weight14.5 Kg
Environment
- Energy Star CompliantYes
- Power ConsumptionCopying: Approx. 32W
Ready: Approx. 5.5W
Sleep: Approx. 1.8W
Power Off: Approx 0.04W
- Noise LevelSound Pressure Level: (Printing) Less than 50 dBA
- Sleep ModeYes
- HumidityOperating: 20 - 80% (without condensation)
Storage: 10 - 90% (without condensation)
- TemperatureOperating: 10 - 35C
Storage: 0 - 40C
Others
- Warranty12 Months Return To Base
Warranty Information
- Recommended Monthly Print Volume250 to 1,500 pages
- Carton ContentsMFC-J5720DW, Quick Setup Guide, User's Guide, CD-ROM, Power Cord, Telephone Line Cord, Telephone Line Cord Adaptor, Ink Cartridges - Black (LC233BK), Cyan (LC233C), Magenta (LC233M), Yellow (LC233Y)
