Xtramus XC-8S33 10Gigabit Media Converter Module - For MCS-2160



10Gigabit Media Converter Module For MCS-2160 Dual XFP Ports for 10GBase-SR/LR

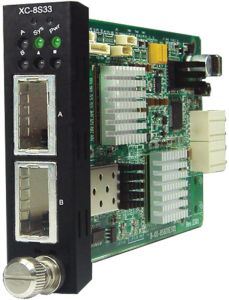

An XC Series 10 Gigabit Ethernet Managed Media Converter Module, the XC-8S33 is designed for installation in an Xtramus MCS-2160 Managed Media Converter Chassis. The unit has dual XFP 10GbE ports.



XC Series Managed Media Converter Modules are designed for use in the Xtramus MCS-2160 16 Slot Managed Media Converter Chassis. The XC Series Converter Modules provide a flexible and scalable solution for high density 10 Gigabit Ethernet media conversion, whilst also supporting Gigabit Ethernet copper to multimode, singlemode or WDM fibre media conversion. The MCS-2160 chassis is a high performance, high availability device that provides a solution for all types of 10 Gigabit Ethernet media conversion.



This XC Series Managed Media Converter Module, the XC-8S33 , has dual XFP slots. It supports 10GbE multimode to singlemode fibre media conversion, utilising XFP 10GBase-SR or 10GBase-LR Transceiver Modules installed in the XFP slots.

All XC Series Modules provide LED status indicators to support maintenance and troubleshooting. Installed in the MCS-2160 chassis these modules provide comprehensive system control, status report, and MIB counter report management functions, acessed via an easy to use web interface.



Features

Designed for use in the Xtramus MCS-2160 Managed Media Converter Chassis
All types of 10 Gigabit Ethernet media conversion supported
Gigabit Ethernet media conversion supported
10GBase-T, 10GBase-LR, 10GBase-SR and 10GBase-CX4 10GbE network protocols supported
1000Base-T, 11000Base-SX, 1000Base-LX and 1000Base-ZX Gigabit network protocols supported
Individual Module Cards offer SFP, SFP+, UTP, XFP and CX4 10GbE interfaces
'Hot Swap' feature ensures zero system downtime
Modules support 3R (Re-generation, Re-timing, Re-shaping) performance
Jumbo Frame support
Supports D/D (Digital Detection) of optical transceivers and overload protection
Easy-to-use Web Management to view system status, counters, upgrading firmware/FPGA and network statistics
Modules support Far-end Fault and Forced mode Link Loss Forwarding





Converter Module Speed/Interfaces/Protocol Support

XC-8S82: 10Gbps; RJ-45 (Port A) to SFP+ (Port B); 10GBase-LR, 10GBase-SR, 10GBase-T
XC-8S22: 10Gbps; SFP+ (Port A) to SFP+ (Port B); 10GBase-LR, 10GBase-SR
XC-8S83: 10Gbps; RJ-45 (Port A) to XFP (Port B); 10GBase-LR, 10GBase-SR, 10GBase-T
XC-8S33: 10Gbps; XFP (Port A) to XFP (Port B); 10GBase-LR, 10GBase-SR
XC-8S23: 10Gbps; SFP+ (Port A) to XFP (Port B); 10GBase-LR, 10GBase-SR
XC-8S62: 10Gbps; CX4 (Port A) to SFP+ (Port B); 10GBase-LR, 10GBase-SR, 10GBase-CX4
XC-7S81: 1Gbps; RJ-45 (Port A) to SFP (Port B); 1000Base-SX, 1000Base-LX, 1000Base-ZX, WDM

Installation
Module Cards installed in slots 2 to 17 of MCS-2160 Chassis
Any mix of XC Series Converter Module Cards can be installed

Management
Interface
Web management GUI
System Control
Transceiver Power ON/OFF
Link Connection Mode: Slave/Segment
Selectable Auto/Force Media Type
System Upgrade (F/W, FPGA)
Loopback
Device Status Report
Information
Module Detection
Link Status
Fibre Module Detection
Temperature Detection
Transceiver overloading
SNMP Counter MIB counter Report
Packet
Byte
Broadcast packet
Pause Frame
Length: 64 Bytes
Length: 65 - 127 Bytes
Length: 128 - 255 Bytes
Length: 256 - 511 Bytes
Length: 512 - 1023 Bytes
Length: 1024 - 1518 Bytes
Unicast packet
Multicast packet
CRC Error
IP Checksum Error
Under size packet
Over size packet

Mechanical Specifications
Form Factor: Card-based Module for use with MCS-2160 Chassis
LED Indicators: Sys, Power. Link/Act Port A, Link/Act Port B

Slots
16x Slots Conveter Module Cards
Slots 2 - 17: Install any mix of XC Series Media Converter Module Cards
3x Slots for Management and Utility Cards
Slot 1 (FAN) : for XC-SFAN Fan Card Module (supplied with Chassis)
Slot 18 (CASC) : for XC-CASC IP Management Cascade Card Module (supplied with Chassis)
Slot 19 (MGM): for XC-M667 Management Card Module (supplied with Chassis)

Management
Web management: GUI interface
System Control - see XC System specifications below
Device Status Report - see XC System specifications below
SNMP Counter MIB counter Report - see XC System specifications below

Chassis Sensors
System temperature detection
System voltage
Fan rotation speed

Mechanical Specifications
Form Factor
Rackmount case, 2RU

Dimensions
88mm x 441mm x 310mm (H x W x D)
LED Indicators
XC-SFAN Card Module: Power, Sys, Status 0, Status 1
XC-CASC Card Module: Power
XC-M667 Card Module: Power, Sys

Power Supply
Modular 300W AC, auto ranging VIN 90-240VAC, Male IEC 320 Receptacle
Modular 300W DC, VIN 36-72VDC, Male IEC 320 Receptacle
Either or both Power Modules can be installed as single or dual redundant power supplies
AC and DC Modular Power Supply support 'Hot Swap' field installation
1x 300W AC and 1x 300W DC Power Modules supplied with chassis as standard

Electromagnetic Compatibility
CE Mark, FCC Class A
Environmental Specifications

Temperature
0° to 40°C (Standard Operating)
0° to 50°C (Non-Operating)

Humidity
5% to 85% (Standard operating)
