R14

Features


 Specifications:


CPU Socket 2011 (Narrow Type, 56 x 94mm mounting pitch) CPU Support IntelĀ® Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 150 Watts Solution 2U Solution Overall Dimension 102.0 x 70.0 x 67.0 mm Weight 660 g Material Copper Heatsink with Stacked Fins Fan Dimension 60 x 60 x 28 mm Speed At Duty Cycle 20%: 1500 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing 2 Ball Bearing Rated Voltage 12 V Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
Air Flow At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level At Duty Cycle 20%: 16.0  dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

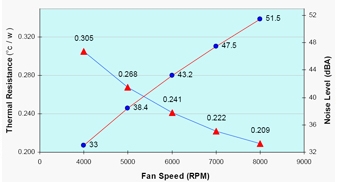

Cooling Performance VS. Airflow (Wind Tunnel Simulation) Note 1. Support CPU Power up to 150 Watts
2. Pre-print thermal compound Shin-Etsu G751
3. RoHS Compliance
4. Backplate is not included
