HOME / Back -> Cooling -> CPU Coolers -> Dynatron

Dynatron R17 3U+ Active CPU Cooler - Intel LGA2011, 92mm Fan, 1000rpm, 17.34CFM, 17.0dBA

IMG 1 of 1
No Longer Available
Part Number:
401780
(?) Brand:
Dynatron
Manuf No:
CPUF-R17
CPUFR17
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/11/2015
Details Files Images & Video
All stock codes associated to this product
CPUFR17, CPUF-R17
R17

Features


 Specifications

CPU Socket 2011 (Square Type, 80 x 80mm mounting pitch) CPU Support Intel® Sandy Bridge Romley-EP/EX Processors up to TDP 160 Watts overclocking Solution 3U&Up, Workstation & Tower Desktop Solution Overall Dimension 91.0 x 91.0 x 110.0 mm Weight 530 g Material Aluminum Fins, 4x Heat Pipes with H.C.C. Technology Fan Dimension Ø92 x 25 mm Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1800 RPM
At Duty Cycle 100%: 2500 RPM Bearing 2 Ball Bearing Rated Voltage 12 V Power At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W Air Flow At Duty Cycle 20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM Noise Level At Duty Cycle 20%: 17.0  dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA Air Pressure At Duty Cycle 20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)

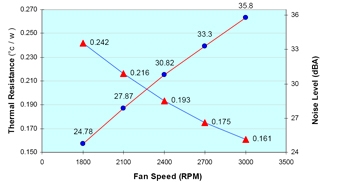

Pin4- (PWM) Cooling Performance VS. Airflow (Wind Tunnel Simulation) Note 1. Support CPU Power up to 160 Watts
2. Pre-print thermal compound Shin-Etsu G751
3. RoHS Compliance
4. Backplate is not included
 Video Clip: Hands-on review on ASUS P9X79 Motherboard
AnandTech review site: Test R17 cooler with Asus Z9PE-D8 WS motherboard

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
