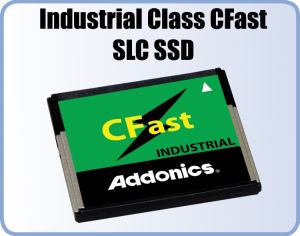

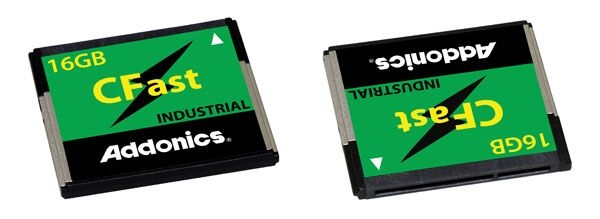

Industrial CFast SLC SSD

AFCFAS3W16G-S

Overview

Addonics' new CFast SSD, redefines the high speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Industrial class CFast card is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial CFast card boost the durability of the card to over 7 times that of commercial grade MLC SSD. This highly durable CFast card is ideal for mission critical applications that are deployed in different industries such as data center, finance and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics CFast card is also available in Enterprise class CFast that is made of MLC flash. This offers a more economical solution for applications or equipment operating in industrial temperature range . For detail information on the Enterprise grade MLC type of CFast card, please visit the following product Enterprise CFast card product web page.



 Features


  • Industrial class CFast SLC SSD
  • Great for the following industries: data center, finance, aero space, manufacturing and others that require high durability and wide operating temperature range
  • Choice of 4GB - 64GB capacities
  • SATA III 6.0Gbps interface
  • Durability up to 7 times of an average MLC flash
  • Data transfer rate:
    • 4G and 8G -  up to 105MB/s sequential READ and 90 MB/s sequential WRITE
    • 16G, 32G and 634G - up to 530MB/s sequential READ and 150 MB/s sequential WRITE
  • Size of CF-1
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AASFICFAST4G 4GB SLC $55.00 105 MB/sec 90 MB/sec -40°C to +85°C
AASFICFAST8G 8GB SLC $105.00 105 MB/sec 90 MB/sec -40°C to +85°C
AFCFAS3W16G-S 16GB SLC $199.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W32G-S 32GB SLC $396.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W64G-S 64GB SLC $679.00 530 MB/sec 150 MB/sec -40°C to +85°C

Specifications

  • Flash type: SLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 330mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 3,410TBW for 64GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 3,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC
