The TD-VG3511 is a fully functional telephony device supporting caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail functions, ensuring that users have access to all the features that they would enjoy with traditional telephone services while providing them with better management capabilities for those features.
What This Product Does

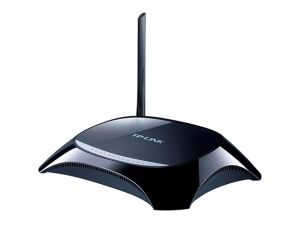

TP-LINK's TD-VG3511 150Mbps Wireless N VoIP ADSL2+ Modem Router is the ultimate in home or office connectivity devices offering a plethora of functionality in one robust product. The device provides users with the ability to access and share an internet connection, using a wired or 150Mbps wireless connection. With its VoIP functions, users can save on phone costs using VoIP telephony services with caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voice mail functionality. Additionally, using the device's USB sharing port, users can share printers, files and media across the network or around the world with FTP functions as well as add USB storage to enable voicemail functions.
Office in a Box – All in one device
With ADSL2+ modem, 150Mbps wireless AP and VoIP telephony, the TD-VG3511 is everything your office needs to be fully connected. Users can share a high-speed wireless internet connection while holding conference calls and saving costs on long distance calls.
Specifications:
| HARDWARE FEATURES |
|---|
| Interface |
4 10/100Mbps RJ45 Ports3 RJ11 Ports1 USB 2.0 Port |
| Button |
1 Power On/Off Button1 Wi-Fi On/Off Button1 RESET Button |
| Dimensions (W X D X H) |
256× 177× 51 mm (10.1× 7.0× 2.0 in.) |
| External Power Supply |
12VDC/1A |
| IEEE Standards |
IEEE 802.3, 802.3u |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2ITU-T G.992.1(G.DMT)ITU-T G.992.2(G.Lite)ITU-T G.994.1 (G.hs)ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis),ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Antenna Type |
Omni directional, Detachable, Reverse SMA |
| Antenna Gain |
1 x 5dBi |
| VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
| FEATURES |
| Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
| Frequency |
 2.400-2.4835GHz |
| Transmit Power |
<20dBm(EIRP) |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering |
| SOFTWARE FEATURES |
| Quality of Service |
Bandwidth Control |
| Security |
NAT Firewall
SPI Firewall
MAC / IP / Packet / URL Filtering |
| Management |
Web Based Configuration(HTTP)
Remote management
Telnet management
Command Line Interface
SSL for TR-069
SNMP V1/V2C
SNMP over EOC
Web Based Firmware Upgrade
CWMP(TR-069)
Diagnostic Tools |
| Port Forwarding |
Virtual server, DMZ, ACL(Access Control List) |
| VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
| ATM Features |
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs |
| Advanced Features |
Ethernet WAN (EWAN)
Parental Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt
VBR-nrt
Dynamic Host Conguration Protocol (DHCP), DHCP relay
Network Address Translation (NAT)
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional)
DNS Relay, DDNS
IGMP snooping V1/V2
IGMP Multicast
UPnP |
| VOIP Features |
Two RJ-11 FXS ports for connecting to regular telephones
Call forwarding, Call waiting, Voice activity detection (VAD), 3-way conference call, etc.
USB Voicemail |
| USB Sharing |
Storage Sharing
FTP Server
Media Server
Print Server |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
150Mbps Wireless N VoIP ADSL2+ Modem Router
TD-VG3511
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Telephony Feature Guide
Quick Installation Guide
Resource CD
Power Adapter |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista, Windows 7,Windows 8, MAC® OS, NetWare®, UNIX® or Linux |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
