M2470SWH

23.6 inch LED Monitor

Overview

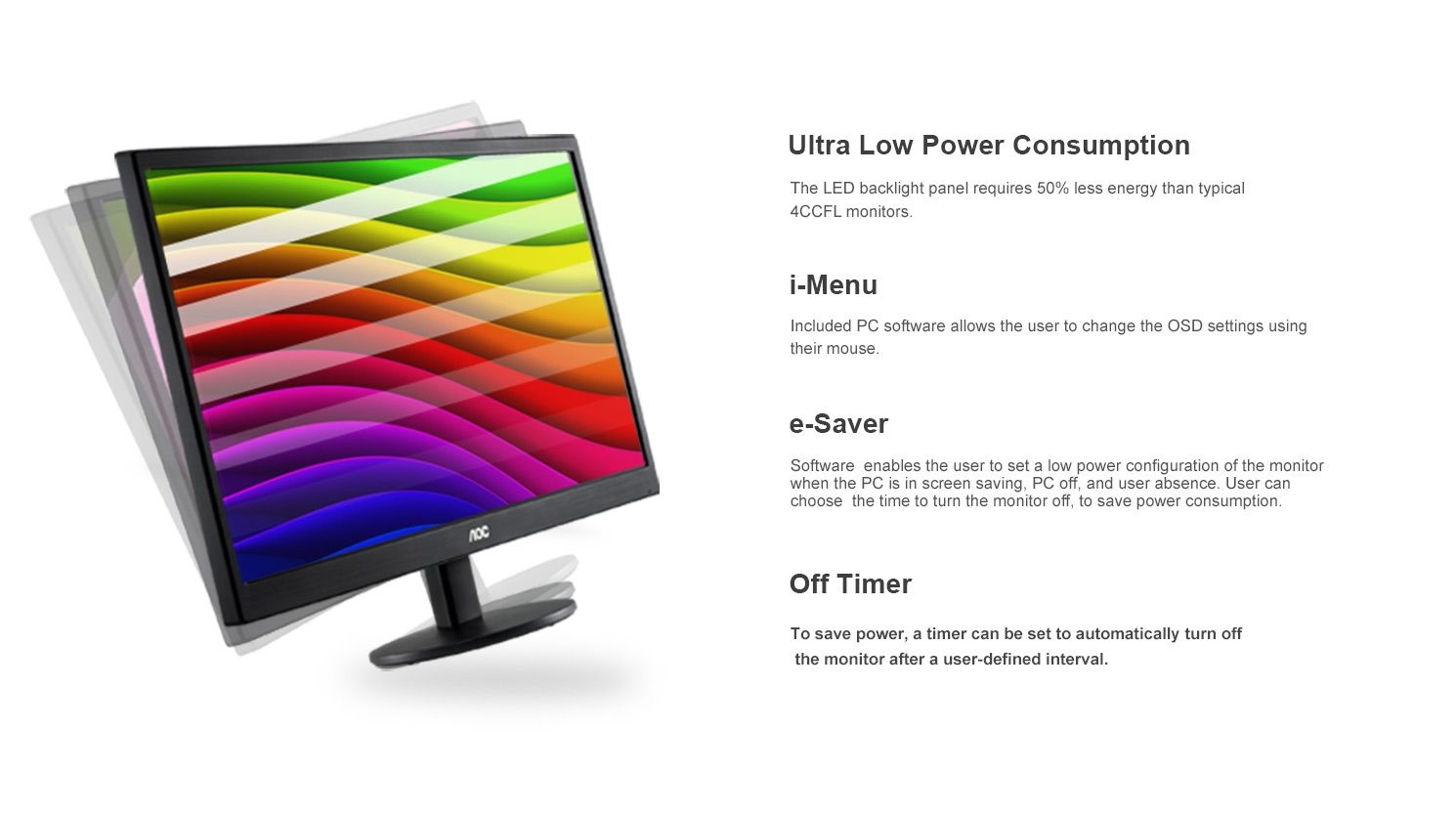

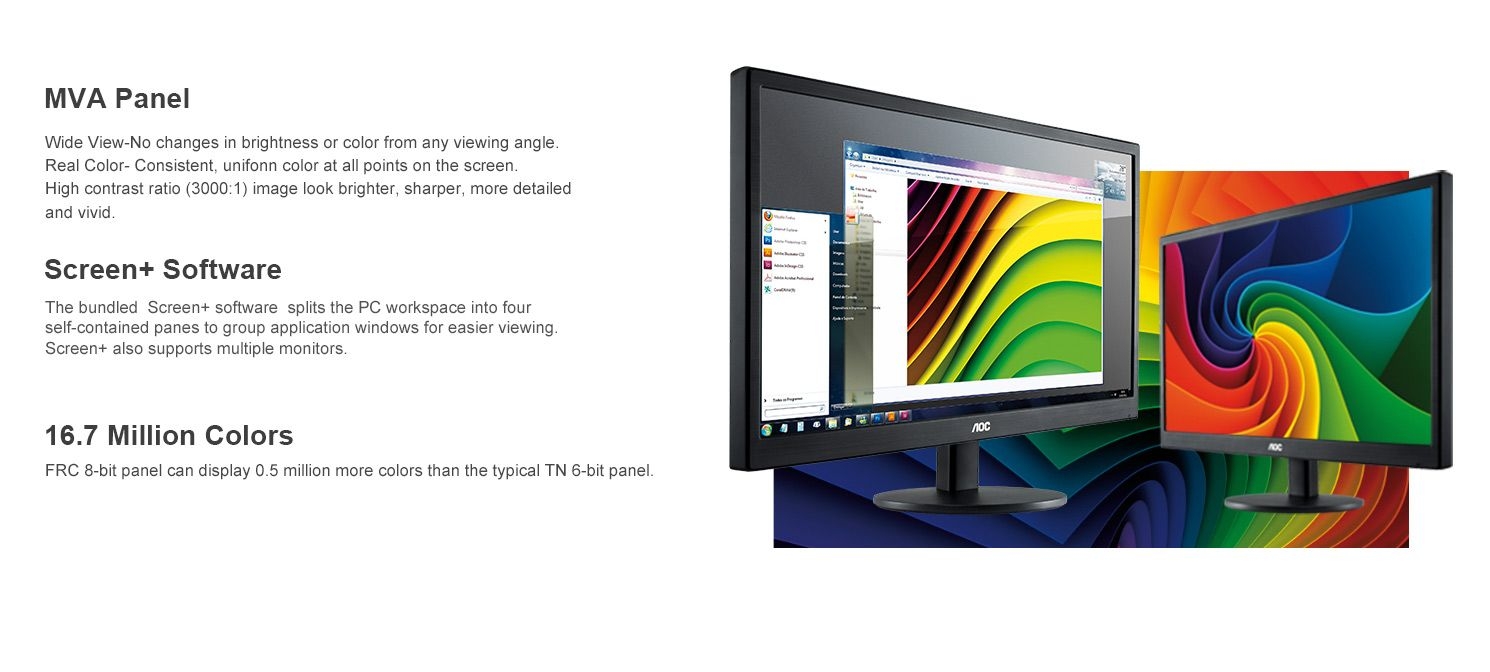

The AOC M2470SWH Monitor features a stunning 23.6” MVA wide-view display panel.  Its high contrast ratio of 3000:1 ensures brighter, sharper, more detailed and vivid images.  The 8-bit true color screen is capable of displaying 16.7 million hues.  Standard HDMI and VGA connectors make it easy to hook up with the latest consumer electronics like Blu-ray players and game consoles.  The M2470SWH also equipped with eco-friendly features, including AOC’s e-Saver software that lets the user to preset a low power configuration and the LED backlight panel requires 50% less energy than typical 4CCFL monitor.

Features






  • Resolution 1920x1080
  • Panel Size 23.6"
  • Response Time 5ms
  • Contrast Ratio 3000:1
  • Viewing Angle (H/V) 178/178

Panel size 23.6"
Screen Ratio 16:9
Response Time (Typical) 5ms
Recommended Resolution 1920x1080
Contrast Ratio 3000:1 (Typical)
20,000,000:1 (DCR)
Brightness (Typical) 250 cd/m2
Display Color 16.7M
Viewing Angle (H/V) 178/178
Viewable Image Size (mm) 598
Display Area 521.28 (H)×293.22 (V)mm
Pixel Pitch (mm) 0.2715(H)×0.2715 (V)mm
Scan Frequency (H/V) 30-83KHz/ 50-76Hz
Pixel Frequency 165MHz

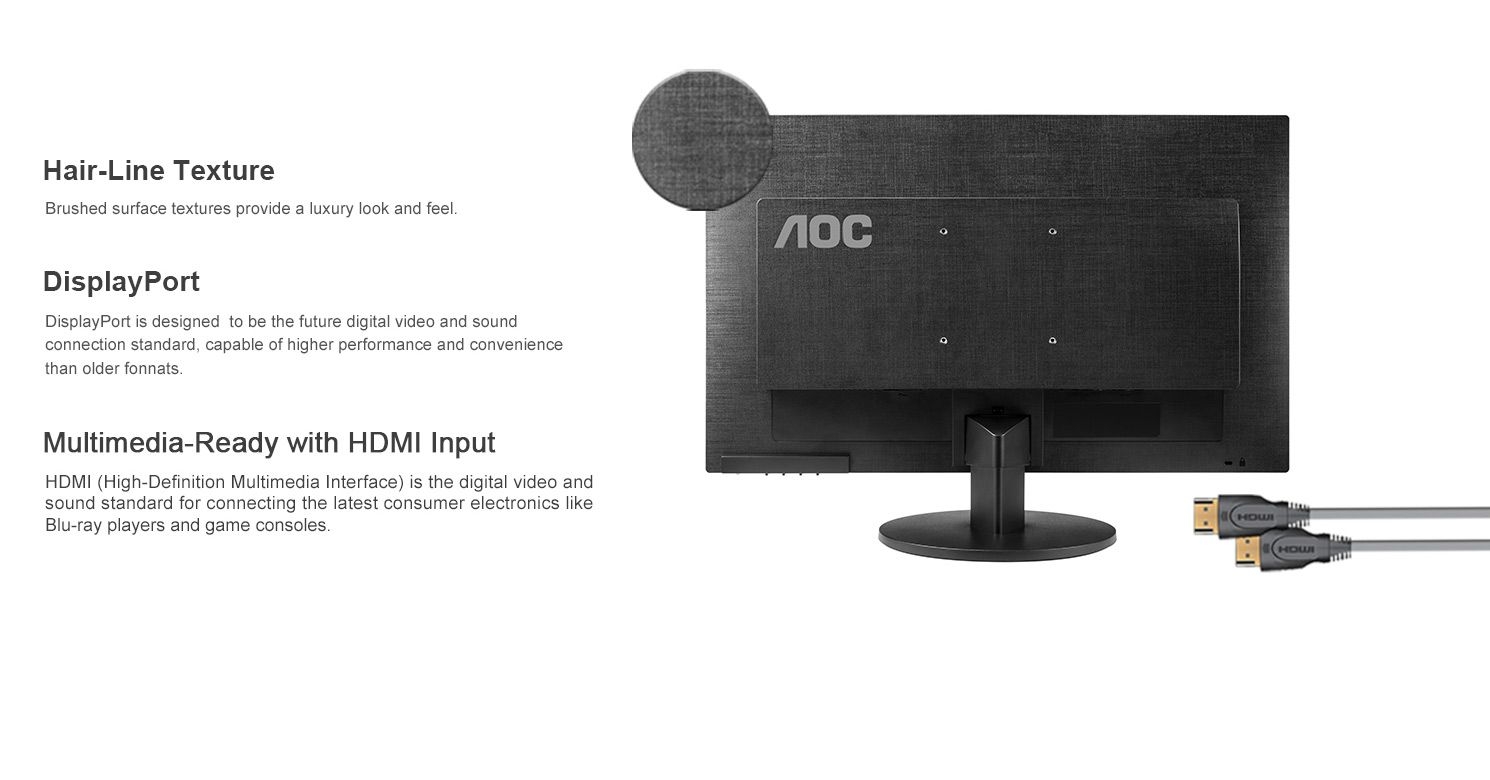

Input Signal Analog & HDMIx2
Input Connector 15-pin D-Sub & HDMIx2
Cable 16-pin D-Sub & HDMI
Built-in Speaker YES
HDCP Compatible YES
Input Power 100-240VAC, 50/60Hz
Power Supply Built-in
Operation Mode (W) 24W
Stand by Mode (W) <0.5W
Wall- Mount VESA 100x100mm
Cabinet Color Black
Phys. (W×H×D) mm 551.4x400.4x221
Package Box (W×H×D) mm 620x435x127
Weight (Net/ Gross)(Kg) 3.68/5.23
Plug & Play VESA DDC2B™ & DDC2B/CI
User Control Source/Auto/Exit, left/Clear Vision,
Right/4:3 or Wide, Menu/Enter, Power
USB Plug N/A
OSD Languages 16 languages
