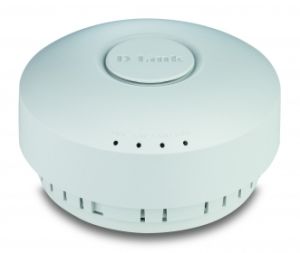

The DWL-6610AP Dual-Band 802.11n/ac Unified Wireless Access Point is specially designed for small to medium enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network. Featuring the latest 802.11ac on its 5 GHz band, the DWL-6610AP brings you to the forefront of wireless technology.

Specifications:

Features

Ideal for Business

Self-configuring cluster, enabling effortless provisioning
Up to 32 virtual access points may be created from a single access point
Flexible QoS with WMM
802.3at Power Over Ethernet enables installation in hard to reach locations

High Performance Connectivity

Beamforming technology
Bandsteering for efficient traffic management
Dual Gigabit Ethernet LAN ports
UL2043 certified chassis (Plenum-rated SKU)
Up to 8 DWL-6610AP units may form a self-configuring cluster

Trusted Security

WPA/WPA2 Personal
WPA/WPA2 Enterprise
MAC address filtering
Rogue AP detection

Technical Specifications

Interfaces:

802.11b/g/n 2.4 GHz wireless
802.11ac 5 GHz wireless
One 10/100/1000 LAN port
RJ45 console port
Factory reset button
Power switch
Power connector

Antenna :

Internal omnidirectional antennas
6.5 dBi for 5 GHz, 5 dBi for 2.4 GHz

Operating Channel :

2.4 / 5 GHz
11 channels for United States
13 channels for Europe
13 channels for Japan

Web-based User Interface:

HTTP/HTTPS

Command Line :

RJ45 Serial Console
Telnet/ SSH
SNMP

SSID Security :

Up to 32 SSIDs, 16 per radio
802.1Q VLAN
Station Isolation

Wireless Security :

WPA Personal/ Enterprise
AES and TKIP

Detection & Prevention :

Rogue and Valid AP Classification

Authentication :

MAC Address Filtering

Dimensions :

158.79 x 69.39 mm w/o bracket (6.25 x 2.73 in.)

Weight :

500 grams (1.1 lbs)

Power Adapter :

Input: 100 to 240 V AC
Output: 12 V DC, 2 A

Power over Ethernet :

10/100/1000 Mbps PoE (802.3at) input

Power Method :

Powered by PoE or 12 V / 2 A

Enclosure :

Bottom cover – plastic
Top cover – plastic
UL2043 certified chassis

Temperature :

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)

Humidity :

Operating: 10% to 90% non-condensing

Certifications :

CE
EN 301 893 V1.7.1 (2012-06) (DFS/TPC)
EN 300 328 V1.8.1 (2012-06)
FCC
IC
cUL
LVD
UL2043 (for plenum-rated SKU only)
C-Tick
BSMI
NCC
Wi-Fi
