All stock codes associated to this product
AERGTRSBK, AER-GT-RS-BK
CHASSIS OVERVIEW
All black chassis interior (0.55mm thickness) with

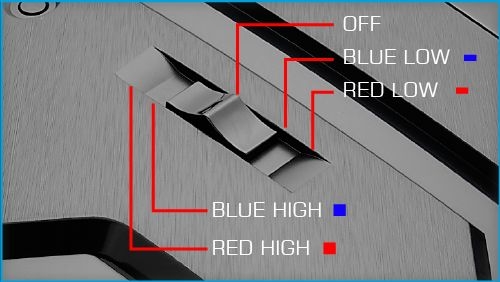

Fan control switch
Dual chamber design
Fan control switch.
CHASSIS INTERNAL
Accessible : 1 x 5.25” / 1 x 3.25“
Internal : 2 x 3.5” HDD , 2 x 2.5” HDD/SSD.

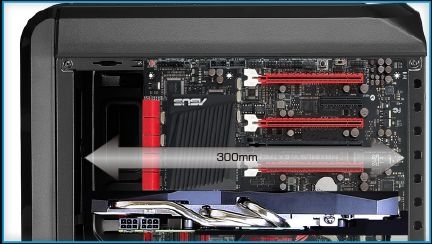

Supports longer high-end VGA cards up to 300mm.

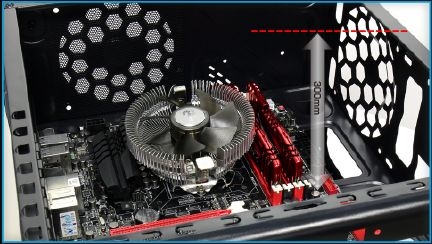

Support Max. Height Of 121mm For CPU Cooler.

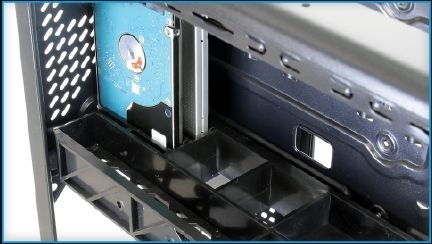

Internal 2.5” hard drive.

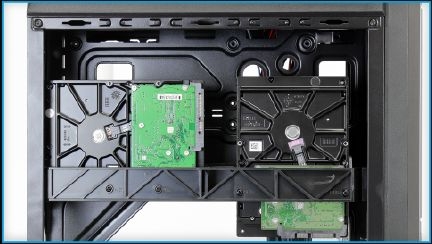

Internal 3.5” hard drive.
SPECIFICATION
|
Model Name |
GT-RS BK |
|
Case Type |
ATX Case |
|
Steel Thickness |
0.55mm |
|
Motherboards |
ATX / micro ATX / mini-ITX |
|
Case Dimensions |
272 x 410 x 365.5mm (W x H x D, overall) |
|
5.25” Drive Bays |
1 (Exposed) |
|
3.5” Drive Bays |
1 (Exposed) |
|
3.5” Drive Bays |
2 (Internal) |
|
2.5” Drive Bays |
3 (Internal) |
|
Expansion Slots |
7 Slots |
|
Max length space available for PCI slots |
300mm (If Without Front Fan) |
|
I/O Ports |
2 x USB3.0 + 2 x USB2.0 + HD Audio & Mic. |
|
Height limit for CPU coolers |
150mm |
|
Air Cooling System |
Top : 1 x 120mm (Optional)
Front : 2 x 120mm (1 x Dual LED Fan Included)
Rear : 1 x 80mm (Optional)
Bottom: 1 x120mm (Optional)
|
|
Water Cooling System |
120 x 120mm or 120 x 240mm (Front) |
|
Height limit for CPU coolers |
Support Max. Height of 121mm For CPU Cooler |
|
Net Weight |
4.3Kg (G.W 5.0Kg) |
|
Power Supply |
ATX PSU (Optional) |
|
EAN Code |
4713105955248 - Black Edition |
Cooling System
GT-RS BK [ Front ] - LED DUAL COLOR
Black Edition
Fan 120 x 120 x 25 mm
Rated voltage 12V
Operating Voltage Range 5.0~13.2V
Starting voltage 5V
Rated current 0.2A+-10%Max
Power consumption 2.4W+-10%Max
Speed 1200+-10%RPM
Max AirFlow 48.6CFM
Max Static Pressure 3.2mm-H2O
Noise (dBA) 22.5dBA
MTBF 25,000 hours
