All stock codes associated to this product
SMX2200HV, 2454581, 731304292609, UPAPCSMX2200HV

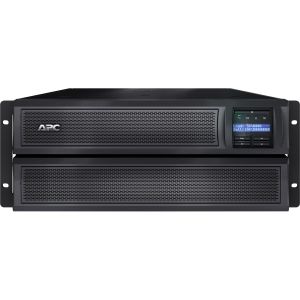

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Over 20 million units sold - the UPS you can trust
APC
award-winning Smart-UPS® is the most popular UPS in the world for
servers, storage and network power protection. Trusted to protect
critical data and equipment from power problems by supplying clean and
reliable network-grade power. In addition to legendary reliability and
manageability, Smart-UPS have extremely high efficiency at low, medium
and high load levels making them ideal for today's multi-core or
virtualized servers that have varying load consumption. Available in a
variety of form factors (tower, rack mount, rack/tower convertible)
there is a model for every application and budget. Rack mounted
Smart-UPS are ideal for powering Blade or density optimized servers in a
distributed power protection environment as the primary or redundant
protection. Smart-UPS® models have long been considered the benchmark
for all network and server UPS's. Smart-UPS feature a 16-segment LED
display, extended range automatic voltage regulation (AVR), and pure
sine wave output on battery. Additional manageability options are
available through the Smart-Slot interface, which is an internal slot
for the installation of optional accessory cards. The extended run
Smart-UPS XL has the capability to add external battery packs to scale
runtime from minutes to hours typically needed for converged voice and
data network power protection. The entry level Smart-UPS SC is an
economical choice for small and medium businesses looking to protect
small switches, networking devices and point-of-sale (POS) equipment.
Specifications
|
Battery Information
|
|---|
|
Backup/Run Time (Full Load):
|
10 Minute
|
|
Backup/Run Time (Half Load):
|
25 Minute
|
|
Battery Characteristics:
|
Spill-proof, Maintenance-free
|
|
Battery Chemistry:
|
Sealed Lead Acid
|
|
Maximum Battery Recharge Time:
|
3 Hour
|
|
Environmental Conditions
|
|
Sound Emission:
|
55 dB(A)
|
|
Temperature:
|
-45°C
|
|
Thermal Dissipation:
|
150 BTU/h
|
|
General Information
|
|
Brand Name:
|
APC
|
|
Manufacturer Part Number:
|
SMX2200HV
|
|
Manufacturer Website Address:
|
https://www.apc.com
|
|
Manufacturer:
|
American Power Conversion Corp
|
|
Marketing Information:
|
Over 20 million units sold - the UPS you can trust
APC
award-winning Smart-UPS® is the most popular UPS in the world for
servers, storage and network power protection. Trusted to protect
critical data and equipment from power problems by supplying clean and
reliable network-grade power. In addition to legendary reliability and
manageability, Smart-UPS have extremely high efficiency at low, medium
and high load levels making them ideal for today's multi-core or
virtualized servers that have varying load consumption. Available in a
variety of form factors (tower, rack mount, rack/tower convertible)
there is a model for every application and budget. Rack mounted
Smart-UPS are ideal for powering Blade or density optimized servers in a
distributed power protection environment as the primary or redundant
protection. Smart-UPS® models have long been considered the benchmark
for all network and server UPS's. Smart-UPS feature a 16-segment LED
display, extended range automatic voltage regulation (AVR), and pure
sine wave output on battery. Additional manageability options are
available through the Smart-Slot interface, which is an internal slot
for the installation of optional accessory cards. The extended run
Smart-UPS XL has the capability to add external battery packs to scale
runtime from minutes to hours typically needed for converged voice and
data network power protection. The entry level Smart-UPS SC is an
economical choice for small and medium businesses looking to protect
small switches, networking devices and point-of-sale (POS) equipment.
|
|
Product Line:
|
Smart-UPS
|
|
Product Name:
|
Smart-UPS X 2200VA Rack/Tower LCD 200-240V
|
|
Product Type:
|
Line-interactive UPS
|
|
Interfaces/Ports
|
|
Total Number of Expansion Slots:
|
1
|
|
USB:
|
Yes
|
|
Management
|
|
Alarm:
|
Configurable Delay
|
|
|
Low Battery
|
|
|
On Battery
|
|
Miscellaneous
|
|
Certifications & Standards:
|
- C-tick
- CE
- CSA
- EN 50091-1
- EN 50091-2
- FCC Part 15 Class A
- GOST
- IEC 60950
- IRAM
- UL 1778
- VDE
- UL 1449
|
|
Green Compliance Certificate/Authority:
|
RoHS
|
|
Green Compliant:
|
Yes
|
|
Package Contents:
|
- Smart-UPS X 2200VA Rack/Tower LCD 200-240V
- CD with Software
- Rack Mounting brackets
- Smart Signal Cable UPS RS-232
- USB cable
- User Manual
|
|
Physical Characteristics
|
|
Colour:
|
Black
|
|
Depth:
|
483 mm
|
|
Form Factor:
|
Tower/Rack Mountable
|
|
Height:
|
432 mm
|
|
Rack Height:
|
4U
|
|
Weight (Approximate):
|
17.53 kg
|
|
Width:
|
178 mm
|
|
Power Description
|
|
Input Voltage:
|
220 V AC
|
|
Load Capacity (VA):
|
2200 VA
|
|
Load Capacity (Watt):
|
1980 W
|
|
Output Voltage:
|
220 V AC
|
|
Surge Energy Rating:
|
645 J
|
|
Waveform Type:
|
Sine Wave
|
|
Technical Information
|
|
Cord Length:
|
1.83 m
|
|
Emergency Power OFF:
|
Yes
|
|
Plug/Connector Type:
|
British BS1363A
|
|
|
IEC 60320 C20
|
|
|
SCHUKO CEE 7 EU1-16P
|
|
Receptacles:
|
2 x IEC 60320 C19
|
|
|
2 x IEC Jumper
|
|
|
8 x IEC 60320 C13
|
|
Warranty
|
|
Limited Warranty:
|
3 Year
|
