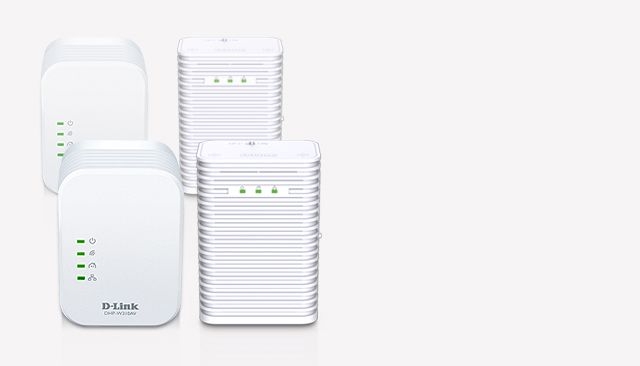

PowerLine AV500 WirelessAC600 Starter Kit

DHP-W313AV

• PowerLine AV500 technology for up to 500Mbps throughput
• Wireless AC600 Access Point
• 10/100 LAN port
• Simple Connect Button for secure connectivity between other PowerLine devices
• Wall-Plug design for more convenience
• Eliminate Wi-Fi blackspots in any hard to reach areas of the home
• Quality of Service (QoS)
• D-Link Green

Overview

PowerLine AV500
Wireless Starter Kit

The PowerLine AV500 Wireless Starter Kit instantly expands your wired and wireless networks by transforming your home's existing electrical wiring into a high-speed network. Easily add computers, entertainment systems and other devices to your network without turning your home into a wired mess.

Plug-and-Play feature means creating a PowerLine network is simple and easy

AV+ technology allows you to place it anywhere

Extend your wireless coverage from anywhere

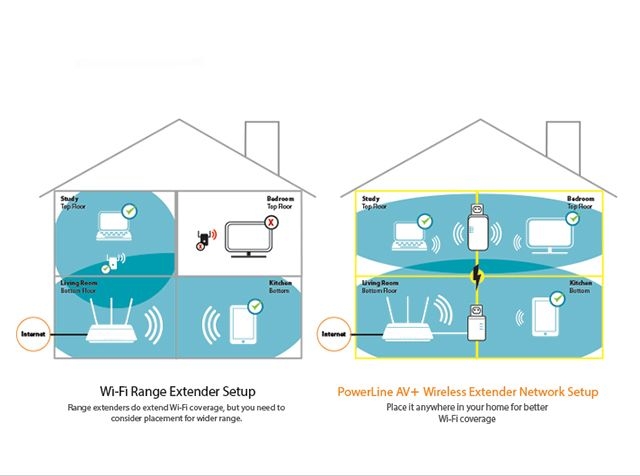

How it works

With the PowerLine AV500 Wireless Starter Kit, getting whole-home coverage is fast and easy.

Simply connect the PowerLine adapter to your router's Ethernet port and plug it into a power outlet to turn every other outlet in your home into a possible network connection.

Plug the wireless extender into an outlet in a different part of your home to extend your Wi-Fi network to the hard-to-reach areas of your home like upstairs bedrooms, basements and outdoor patios

It does more than a range extender

Extend your wired network

Extend your Powerline network by adding up to 6 adapters in total. Backward compatible with PowerLine AV, AV+.

Power saving mode comes in handy

Power Saving mode reduces power consumption up to 70% when compared with existing PowerLine Adapters.

Technical Specifications

General

Device Interfaces

10/100 Fast Ethernet LAN port
Power plug for Powerline
Simple Connect button
Power On/Off switch
Reset button

Wireless LAN

802.11ac/n/g/b

64/128-bit WEP data encryption

WPA/WPA2 (Wi-Fi Protected Access)

Powerline

HomePlug AV

IEEE1901

IEEE1905.1

Advanced Features

IPv6 support

Power-saving

UPnP support

Wi-Fi WMM Quality of Service

Powerline QoS

Web-based configuration

Physical

Dimensions

101 x 70 x 45 mm (DHP-W312AV)

70 x 52 x 26 mm (DHP-308AV)

Power Input

100 V to 240 V AC, 50/60 Hz

Power Consumption

6.1 Watts

Temperature

Operating: 0 to 40 °C (32 to 104 °F)

Humidity

Operating: 10% to 90% non-condensing

Certifications

CE/LVD

RCM

UL

WEEE

FCC

RoHS

Homeplug AV

IPv6
