CC-9011081-WW
Overview

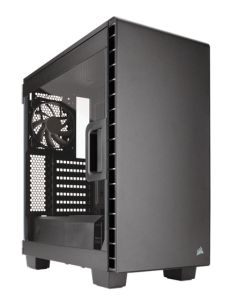

Cool, Clear, and Compact.
We’ve engineered the Carbide Clear 400C to pack all the performance and expandability you need into a beautifully compact case design. Put your components on display through the gorgeous, full-size window panel that opens with a touch — and keep it all running cool and quiet with Direct Airflow technology.
Easy to build, hard to beat
With a one-touch side panel, tool-free drive installation, and three-point dust filter access, 400C is easy to build and even easier to keep clean. You’ll spend less time on setup and maintenance, and more time enjoying your PC.

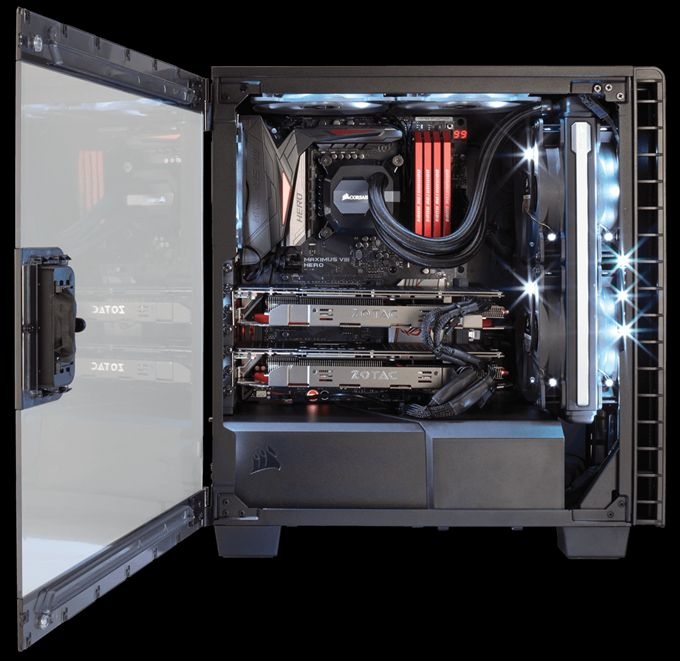

Hinged and latched full side panel window
Easily access your components with a single touch – and when it’s closed, enjoy viewing every part of your build through the full side panel window.
Clean, modern lines with an all steel exterior
Get rid of those plastic cases – the 400C has full steel front and top panels for extra durability and gorgeous good looks.
Direct Airflow Path
One way to reduce noise is to make sure your fans don’t work harder than they have to. By removing the drive cages behind the intake fans, we provide a more efficient direct airflow path to your hottest components, the CPU and GPU. It’s just a smarter design.
Compact design, full size capabilities
Don’t let the compact dimensions of the 400C fool you. It can house a full ATX motherboard and multiple GPUs.
Liquid cooling capable
With room for up to a 360mm radiator in front, a 240mm radiator on top, and a 120mm radiator in rear, you can choose to quiet down your GPU and CPU with liquid coolers just about wherever you want to.
Two included AF series fans
Great airflow doesn’t have to be noisy -- the AF120L and AF140L fans can push good amounts of air across your hottest devices without that annoying fan hum, and the direct airflow design of the 400C provides an excellent path for cold air to get to your hottest parts.
PSU and 3.5” Bay Cover
Clean up the inside of your case by tucking all those cables and less-attractive drives behind two modular, clean, and refined PSU and 3.5” bay covers. Or remove them for assembly – it’s up to you.
Easy to clean
Easily access dust filters on front, top, and bottom mean you’ll never spend more than a minute getting dust out of your system.
Contents and Specifications
Package contents
- Carbide Series Clear 400C Compact Mid-Tower Case
- Accessory kit
- Warranty and Support Information
Compatibility
- Motherboard: EATX (12" x 10.6"), ATX, MicroATX, Mini ITX
Technical specifications
- Dimensions (L x W x H): 425 x 215 x 464mm
- Maximum GPU Length: 370mm
- Maximum CPU Cooler Height: 170mm
- Maximum PSU Length: 190mm
- Expansion Slots: 7
- 5.25" Drive bays: 0
- 3.5" Hard Drive Bays: 2
- 2.5" Drive Bays: 3
- Fans included: (x1) 140mm, (x1) 120mm
- Cooling Layout:
- Front: (x3) 120mm or (x2) 140mm (1 x 140mm included)
- Top: (x2) 120/140mm
- Rear: (x1) 120mm (included)
- Radiator Compatibility:
- 360mm: Front only
- 280mm: Front only
- 240mm: Front or Top
- 120mm: Front, Top, or Rear
- Dust filters on all sides
- Front I/O Panel includes: (x2) USB 3.0 port, Headphone and Microphone jacks, Power on and Reset buttons
Specifications
Case Form Factor:
Mid-Tower
Dimensions: 425mm x 215mm x 464mm
Case Motherboard Support:
Mini-ITX, MicroATX, ATX, E-ATX
Maximum GPU Length:
370mm
Maximum CPU Cooler Height:
170mm
Max
imum
PSU Length:
200mm
Case Expansion Slots: 7
Case Drive Bays
(x2) 3.5in
(x3) 2.5in
Case Power Supply: ATX (not included)
External Connections
(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations
Front: (x3) 120mm or (x2) 140mm
Top: (x2) 120/140mm
Rear: (x1) 120mm
Fans Included
Front: (x1) 140mm
Rear: (x1) 120mm
Radiator Mount Locations
Front: 360mm
Top: 240mm
Rear: 120mm
Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H90, H100i, H105, H110
